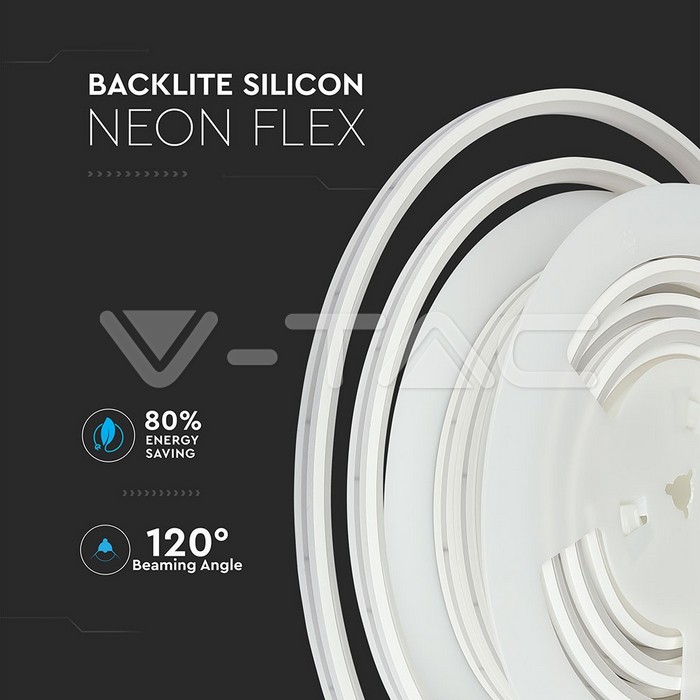

Neon Strip Light Silicon 24V 3000K, VT-559

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU2568
Brand: V-TAC
Type / Description: LED neon osvětlení
Jmenovitý proud:0.55A/m.
Nominal wattage:13
Colour temperature:3000K
Colour rendering index CRI:> >80
Luminous flux:1000
Lamp efficacy:77
Unit EAN13 code: 3800157637633

Download

Technical sheet

Technical drawing not available


Download

Technical sheet

Technical sheet Neon Strip Light Silicon 24V 3000K, VT-559


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Material Silicon
Dimmable Ne
Energy efficiency class (canceled regulation!) A+

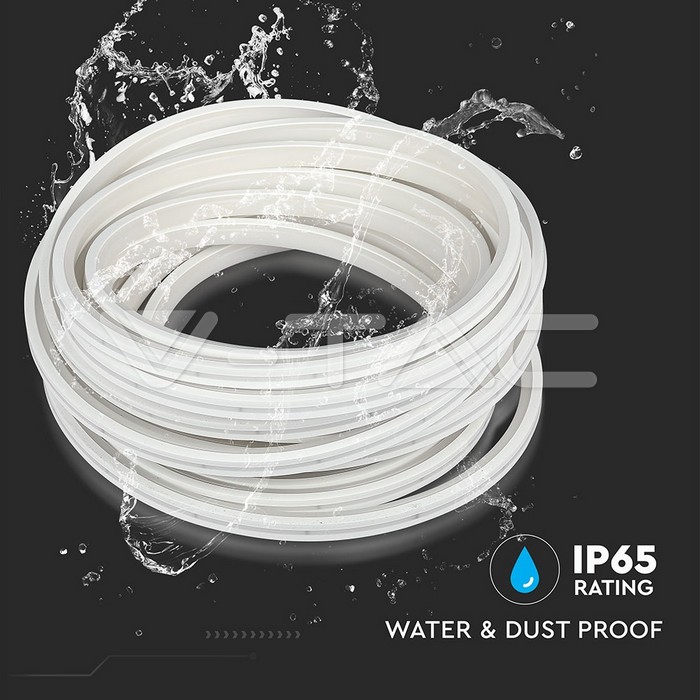

Degree of protection (IP) IP65
Suitable for degree of protection (IP) IP65
Lamp power per meter 13W W
Název položky LED neon osvětlení
Skupina produktu V-TAC VT-559
Třída energetické účinnosti podle 2019/2015 A+
Cykly zapnití/vypnutí > 15000
EAN13 (jednotkový) 3800157637633

Working conditions

Operating method Not suitable for use in extreme conditions. Normal working c
Temperature -0,333333333 °C

EuP Parameters

Number of maximal switching cycles 15000
Turn-on time 0.001 sec (instant on) s

Safety information

Safety instructions https://www.nbb.cz/gprs

Electrical characteristics

Nominal wattage 13 W
Nominal current (A) 0.55A/m. A

Physical characteristics

Type of chip SMD2835

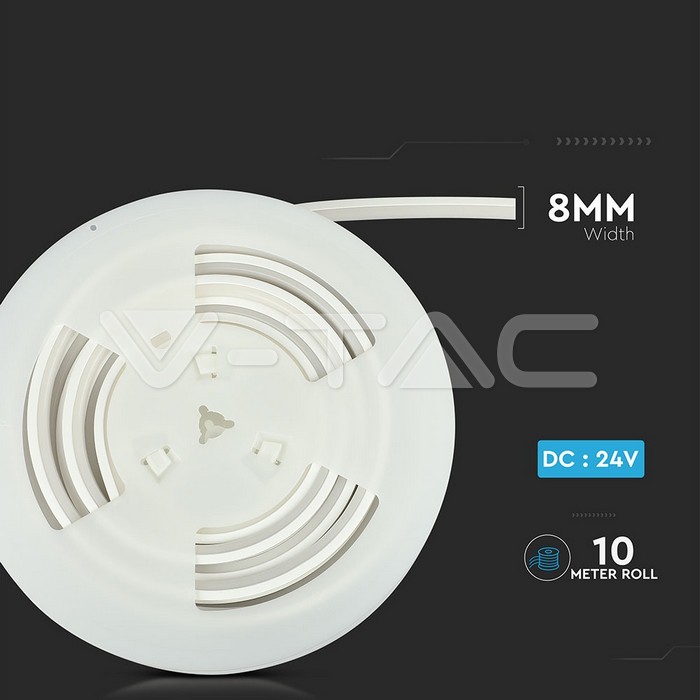

Width 8 mm mm
Weight netto 1227 g
Length 10m. mm
Material Silicon
Number of LEDs 120
Number of lamps per meter 120 LED/m.
Volume per unit 0,003645 m3
Počet ks v balení 100
Počet kusů v kartonu 1 - 10m.

Lighting characteristics

Luminous flux 1000 lm
Colour temperature 3000K K
Radiation angle 120 °
Colour rendering index CRI >80 Ra
Maximal intensity (Cd) 318.30 Cd Max. Cd
Colour of light acc. EN 12464-1 Warm White
Beam angle Degrees (°) 120° °
Světelný tok na 1m 1000 lm lm
Barva světla Warm White

Energetic characteristics

Lamp efficacy 77 lm/W
