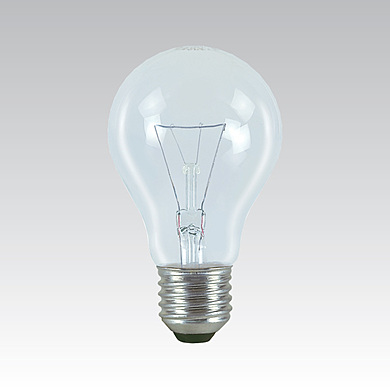

Low-voltage lamp PS55x95mm 150V 75W E27 clear

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: 339065000
Brand: NBB
Type / Description: Středovoltová žárovka čirá
Nominal voltage (V):150
Jmenovitý proud:0,5
Nominal wattage:75
Colour rendering index CRI: 100
Luminous flux:900
Lamp efficacy:12
Unit EAN13 code: 8595209910578
ILCOS: IAA/C-75-150-E27-55

Download

Technical sheet
Product Data sheet

Industrial 24V incandescent lamps for general lighting. Lifespan 1.000 h.

Exclusion of liability

Changes to data are subject to prior notice. NBB Bohemia s.r.o. accepts no responsibility for damages caused by inaccurate interpretation of the content on this site.

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet Low-voltage lamp PS55x95mm 150V 75W E27 clear

Download

Product Data sheet

2.34 MB


Wiring Diagram not available


General information

Model/Description Žárovka/Incadescent lamps
Finish Čirá/Clear
Brand/Manufacturer NBB
Nominal service life (h) 1000 h
Nominal voltage (V) 150 V
Model Čirá
Socket E27
Energy efficiency class (canceled regulation!) E
Shock-proof Ano
Krypton Ne
Nominal voltage (V) 150 V
Multi-coiled filament Ano
Lamp voltage 140 - 150 V
Dimmable by conventional dimmers Ano
Název položky AGM 150V A55 75W E27 CLEAR

Working conditions

Bulb temperature (max.) 200 °C
Cap temperature (max.) 150 °C
Burning position Libovolná
Application Průmyslové aplikace
Suitable for baking oven Ne
Suitable for refrigerator Ne
Special application Ostatní

EuP Parameters

Average Lifetime B50 (h) 1000 h
The rate of premature failures <2 %
Rated service life 1000 h
Energy consumption (AGGR) 75 kWh/1000h

Safety information

Safety instructions www.nbb.cz

Electrical characteristics

Nominal wattage 75 W
Rated power (W) 75 W
Operating voltage (V) 145 - 155 V
Type of Voltage AC/DC
Lamp power 75 W
Voltage type AC/DC
Nominal current (A) 0,5 A

Physical characteristics

Dimensions (mm) Ø55 x 98 mm
Packing method 1 - 100
Weight gross 30 g
Weight netto 20 g
Total lenght 98 mm
Diameter 55 mm
Splitter protection Ne
Lamp shape Ostatní
Carbon filament Ne
Number of filament supports 5

Lighting characteristics

Luminous flux 900 lm
Colour rendering index CRI 100 Ra

Energetic characteristics

Lamp efficacy 12 lm/W
