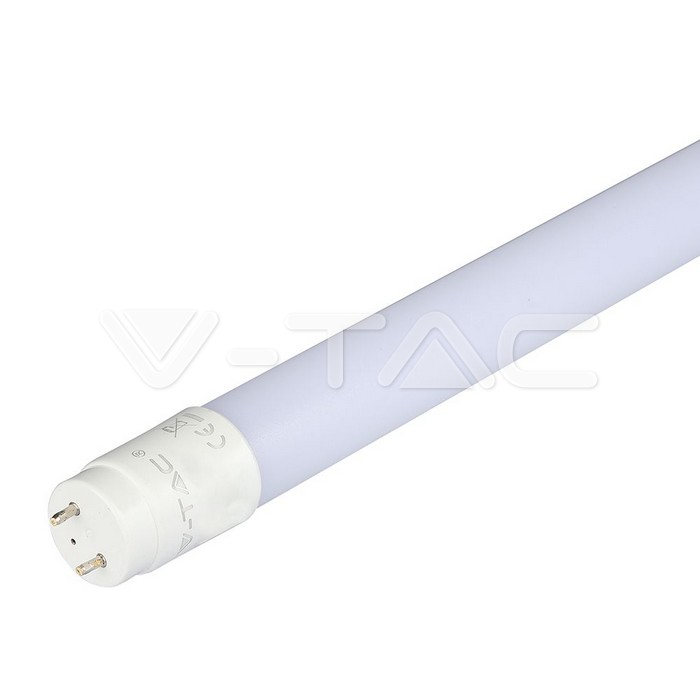

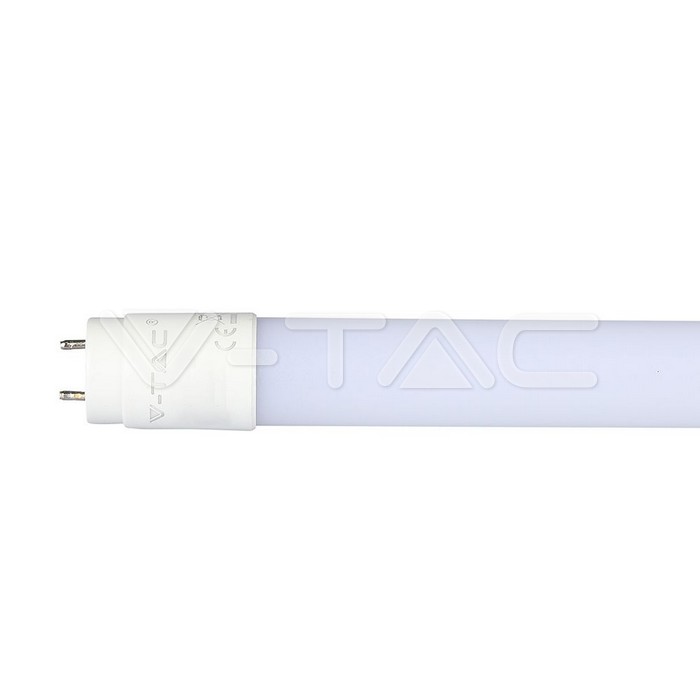

LED Tube SAMSUNG CHIP - 120cm 18W A++ G13 Nano Plastic 4000K, VT-122

Order number: SKU21672
Brand: V-TAC
Type / Description: LED trubice SAMSUNG čip - záruka 5 let
Jmenovité napětí (V):220 - 240
Nominal wattage:18
Colour temperature:4000K
Colour rendering index CRI:> >80
Luminous flux:2250
Lamp efficacy:112 lm/W
Unit EAN13 code: 3800157632911
Guarantee: 60 months

Download

Exclusion of liability

Changes to data are subject to prior notice. NBB Bohemia s.r.o. accepts no responsibility for damages caused by inaccurate interpretation of the content on this site.

Notice

Under the scope of Act 185/2001 Coll. as amended, this product is included in waste group 5 (light sources and luminaires). In view of the harmful effects of mercury on the environment and on human health, the creators of group 5 waste (consumers) are obliged to dispose of used light sources for recycling. Do not throw this product into mixed waste after use. Take it to the nearest store, collection yard, or other designated location for free recycling. You can also dispose of the used products for recycling in our sales outlets or in collection points of collective recycling systems or municipal collection yards. Ecological recycling of waste electrical and electronic equipment is ensured through the RETELA collective system (www.retela.cz).

Notice

Single LED chip failure, luminous flux deviation +/- 10% as well as chromaticity deviation +/- 150K are in compliance with applicable standards and are not a reason for complaint.

More photos available

Technical drawing not available



Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Material Nano-Plastic
Nominal service life (h) 25 000 hrs h

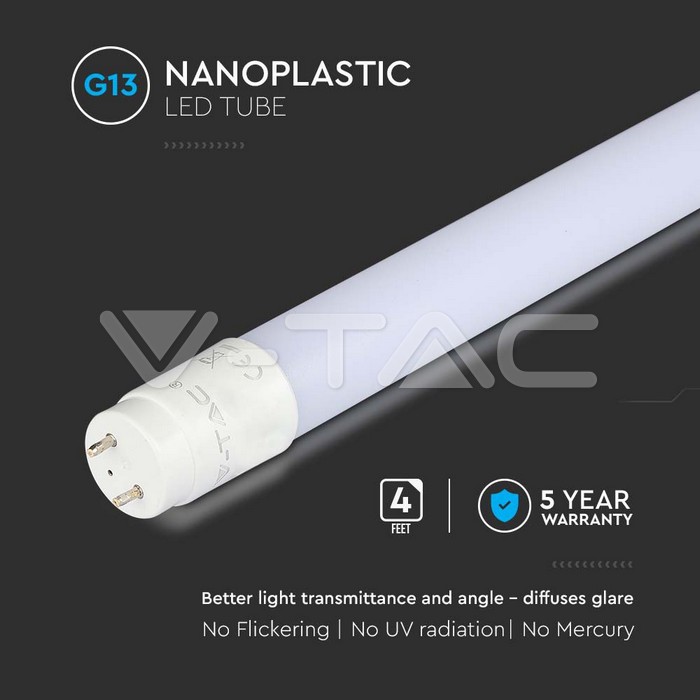

Socket G13
Dimmable Ne
Energy efficiency class (canceled regulation!) A++
Nominal voltage (V) 220 - 240 V
Degree of protection (IP) IP20
Suitable for degree of protection (IP) IP20
Název položky LED trubice SAMSUNG čip - záruka 5 let
Skupina produktu V-TAC VT-122

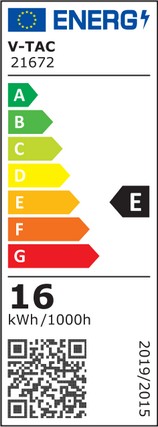

Třída energetické účinnosti podle 2019/2015 E
Cykly zapnití/vypnutí > >15000
EAN13 (jednotkový) 3,80016E+12

Working conditions

Power 16.5W W
Operating method Not suitable for use in extreme conditions. Normal working c
Temperature -0,444444444 °C
Otočná patice Yes

EuP Parameters

Number of maximal switching cycles >15000
Rated service life 30000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 45 W

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS

Electrical characteristics

Nominal wattage 18 W
Frequency 50Hz Hz

Physical characteristics

Type of chip SAMSUNG SMD Chip

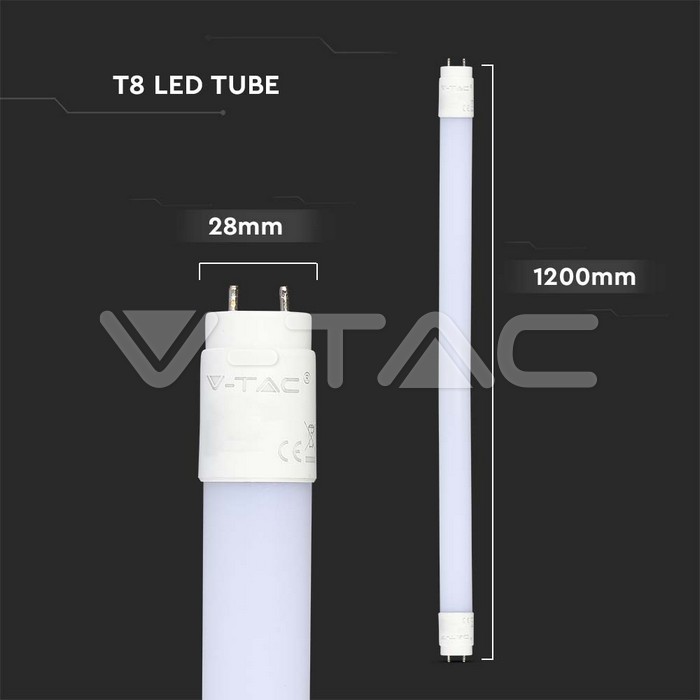

Dimensions (mm) 1200 x 28 mm mm
Weight netto 0,16 g
Diameter 27,9 mm
Length 1200 mm
Material Nano Plastic
Volume per unit 0,001428 m3
Počet ks v balení 25
Počet kusů v kartonu 25

Lighting characteristics

Luminous flux 2250 lm
Colour temperature 4000K K
Radiation angle 16 °
Colour rendering index CRI >80 Ra
Colour of light acc. EN 12464-1 Natural white
Effective luminous flux 1850 lm

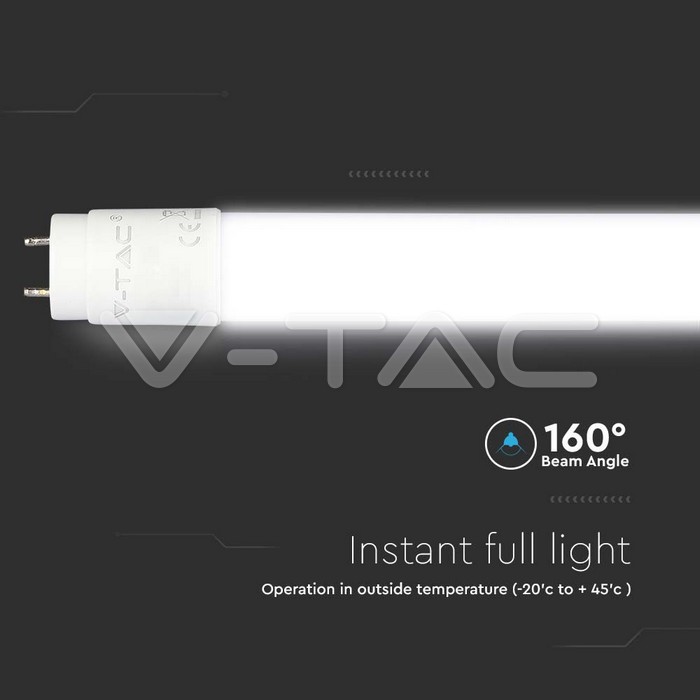

Beam angle Degrees (°) 160° °
Barva světla Natural White

Energetic characteristics

Lamp Power factor (PF) >0.7
Lamp efficacy 112 lm/W lm/W
