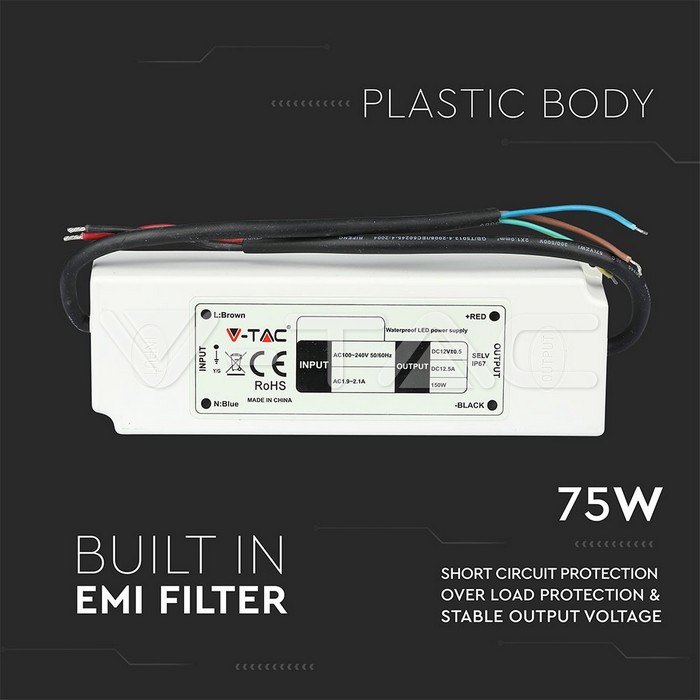

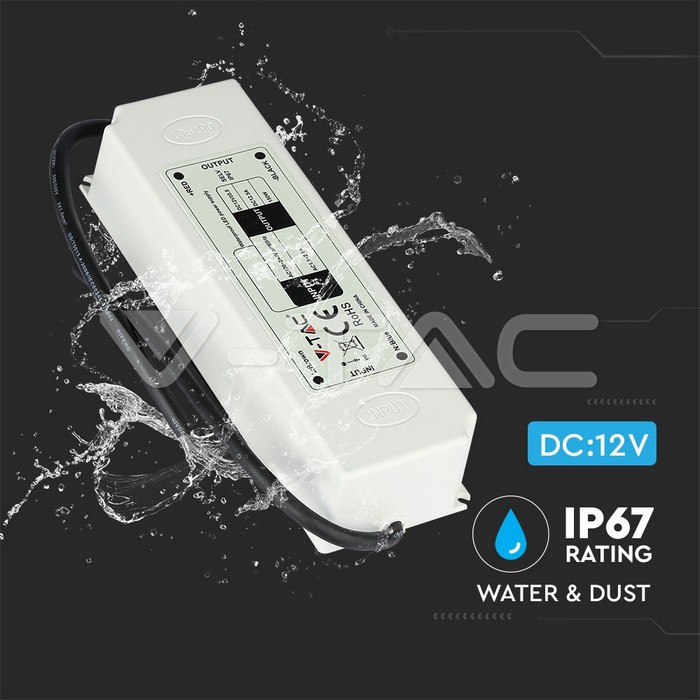

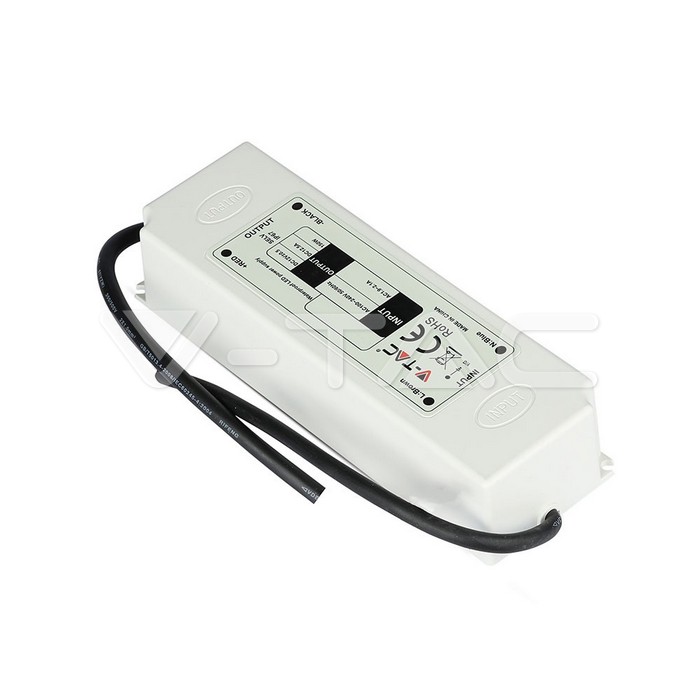

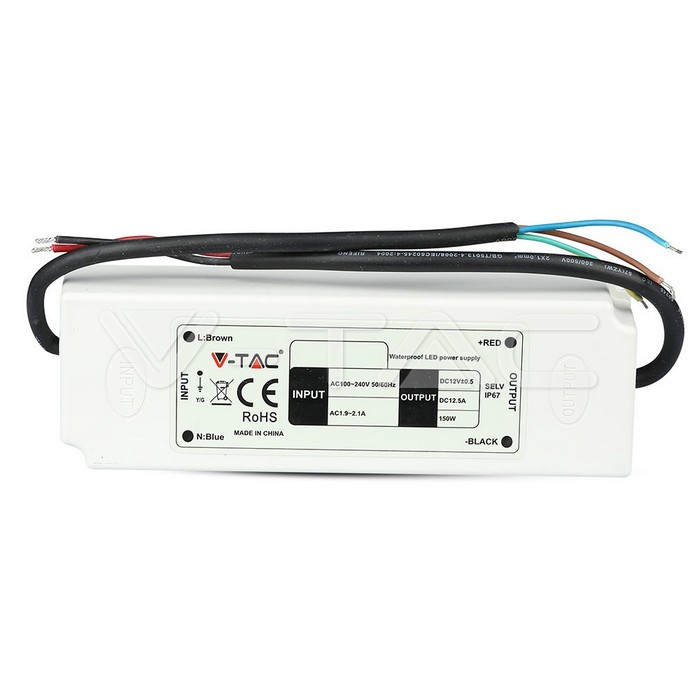

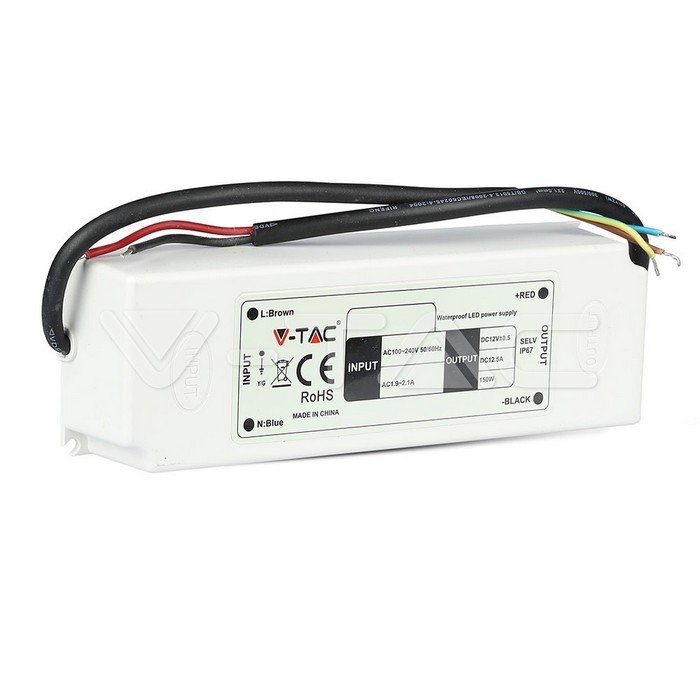

LED Power Supply - 75W 12V IP67 Plastic, VT-22075

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU3235
Brand: V-TAC
Type / Description: Voděodolný napáječ pro LED pásek
Nominal voltage (V):100 - 240
Jmenovitý proud:6A
Nominal wattage:75
Unit EAN13 code: 3800157628013

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet LED Power Supply - 75W 12V IP67 Plastic, VT-22075


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Material ABS Plastic
Nominal service life (h) 20000 hrs h
Nominal voltage (V) AC: 100-240V V
Nominal voltage (V) 100 - 240 V
Degree of protection (IP) IP67
Suitable for degree of protection (IP) IP67
Název položky Voděodolný napáječ pro LED pásek
Skupina produktu V-TAC VT-22075
Cykly zapnití/vypnutí > 15000
EAN13 (jednotkový) 3800157628013

Working conditions

Power 75W W
Operating method Not suitable for use in extreme conditions. Normal working c
Temperature -0,636363636 °C

EuP Parameters

Number of maximal switching cycles 15000
Rated service life 20000 h
Turn-on time 0.001 sec (instant on) s

Electrical characteristics

Nominal wattage 75 W
Frequency 50 - 60 Hz
Nominal current (A) 6A A

Physical characteristics

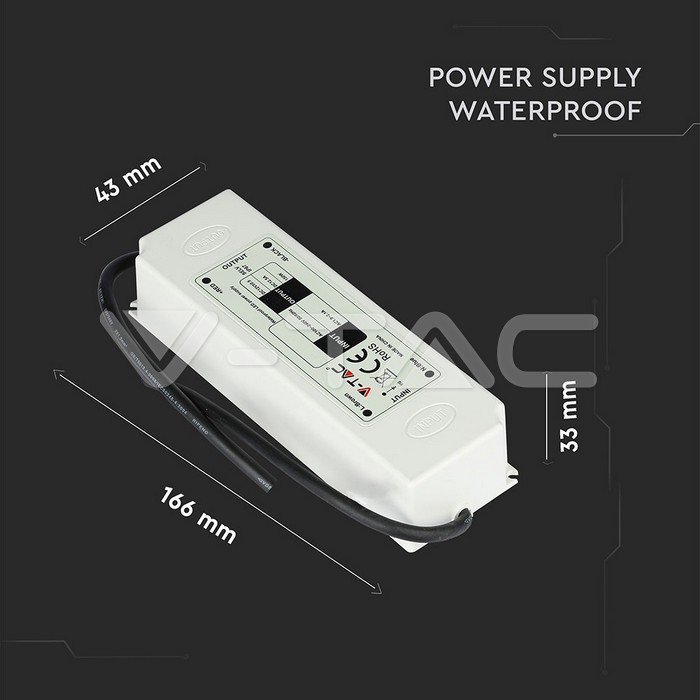

Dimensions (mm) 166 x 43 x 33 mm mm
Weight netto 403 g
Material ABS, PC
Volume per unit 0,001240947 m3
Počet ks v balení 1
Počet kusů v kartonu 1

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS
