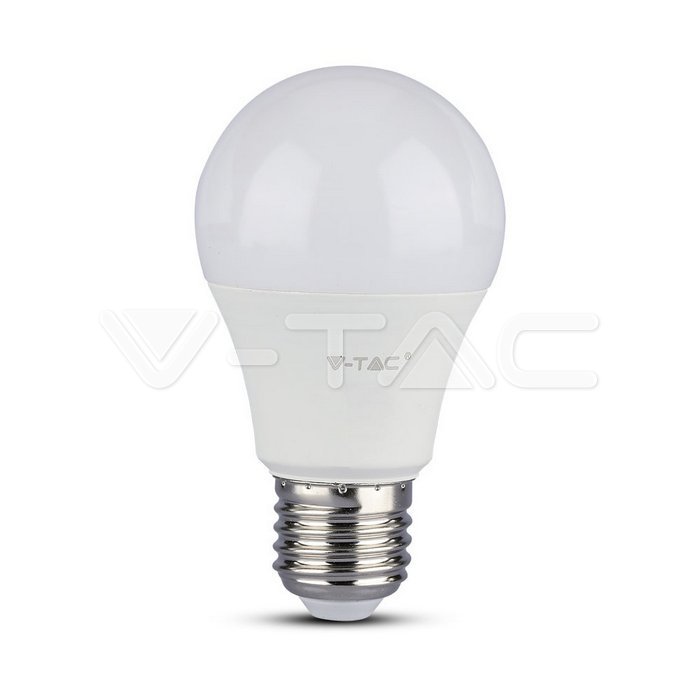

LED Bulb - SAMSUNG CHIP 8.5W E27 A++ A60 Plastic 6400K, VT-285

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU254
Brand: V-TAC
Type / Description: LED žárovka SAMSUNG čip - záruka 5 let
Nominal voltage (V):220 - 240
Nominal wattage:8,5
Colour temperature:6400K
Colour rendering index CRI:> >80
Luminous flux:1055
Lamp efficacy:120 lm/W
Unit EAN13 code: 3800157633642
Use: Components for LED lighting
Guarantee: 60 months

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet LED Bulb - SAMSUNG CHIP 8.5W E27 A++ A60 Plastic 6400K, VT-285


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Material Thermoplastic
Nominal service life (h) 30 000 hrs h
Nominal voltage (V) AC: 220-240V V
Socket E27
Dimmable Ne
Energy efficiency class (canceled regulation!) A++
Nominal voltage (V) 220 - 240 V
Degree of protection (IP) IP20
Suitable for degree of protection (IP) IP20
Název položky LED žárovka SAMSUNG čip - záruka 5 let
Skupina produktu V-TAC VT-285
Třída energetické účinnosti podle 2019/2015 E
Cykly zapnití/vypnutí > >20000
EAN13 (jednotkový) 3800157633642

Working conditions

Power 8.5W W
Operating method Not suitable for use in extreme conditions. Normal working c
Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles >20000
Rated service life 30000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 75W W

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS

Lamp lumen maintenance factor (LLMF)

Lumen maintenance factor at the end of the nominal life 70 %

Electrical characteristics

Nominal wattage 8,5 W
Frequency 50Hz Hz

Physical characteristics

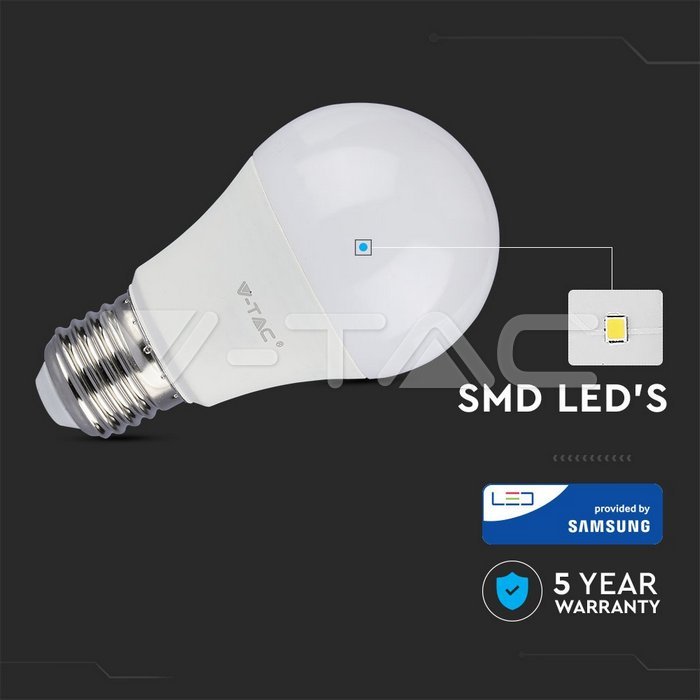

Type of chip SAMSUNG Chip

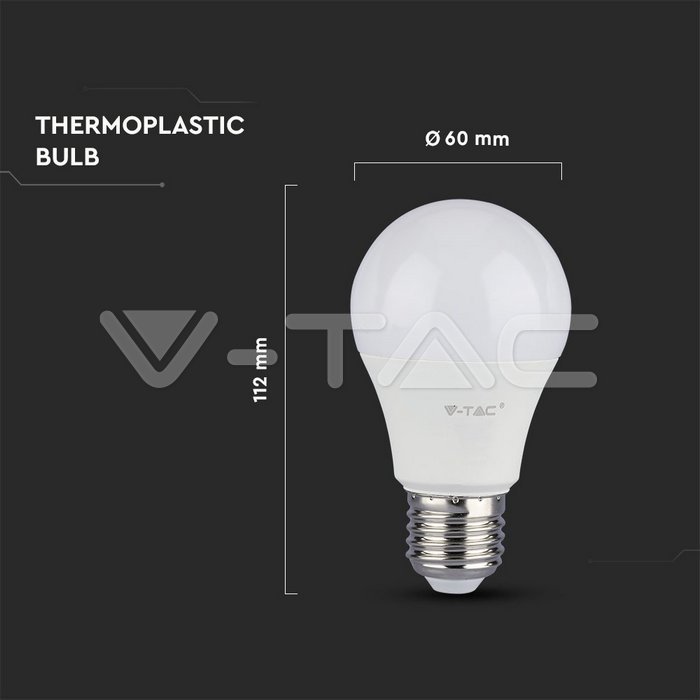

Height 112 mm mm
Colour housing White
Weight netto 59 g
Diameter 60 mm

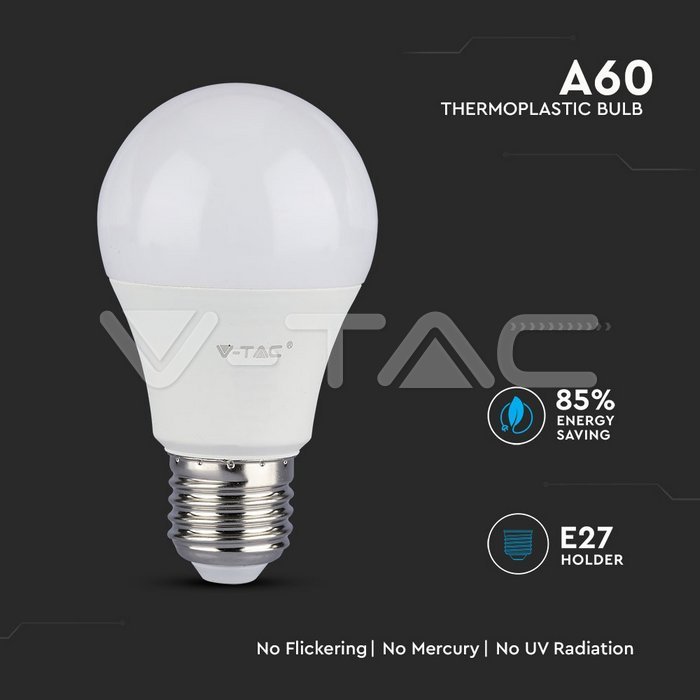

Lamp shape A60
Material Thermoplastic
Diameter lamp 60 mm mm
Volume per unit 0,000504 m3
Počet ks v balení 100
Barva tělesa V-TAC White
Počet kusů v kartonu 1

Lighting characteristics

Luminous flux 1055 lm
Colour temperature 6400K K
Radiation angle 20 °
Colour rendering index CRI >80 Ra
Maximal intensity (Cd) 143.06 Cd Max. Cd
Colour of light acc. EN 12464-1 White
Effective luminous flux 1055 lm lm

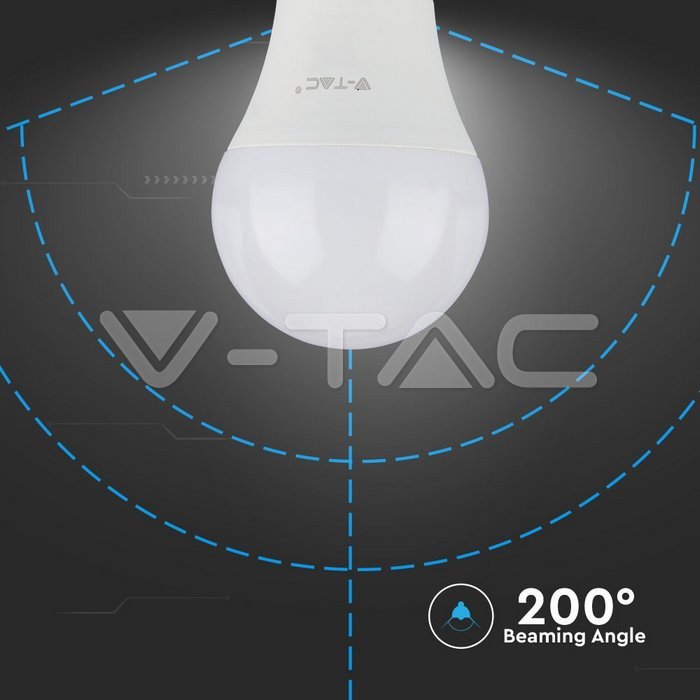

Beam angle Degrees (°) 200° °
Barva světla White

Energetic characteristics

Lamp Power factor (PF) >0.5
Lamp efficacy 120 lm/W lm/W
