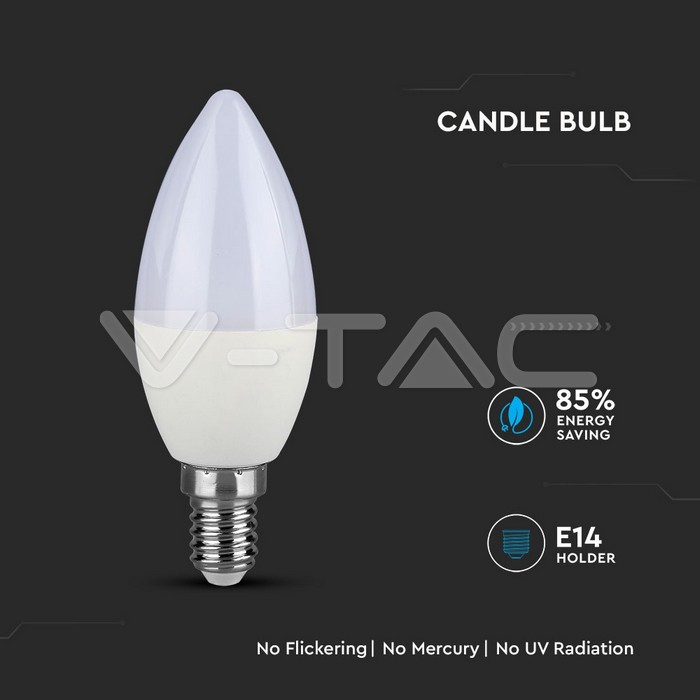

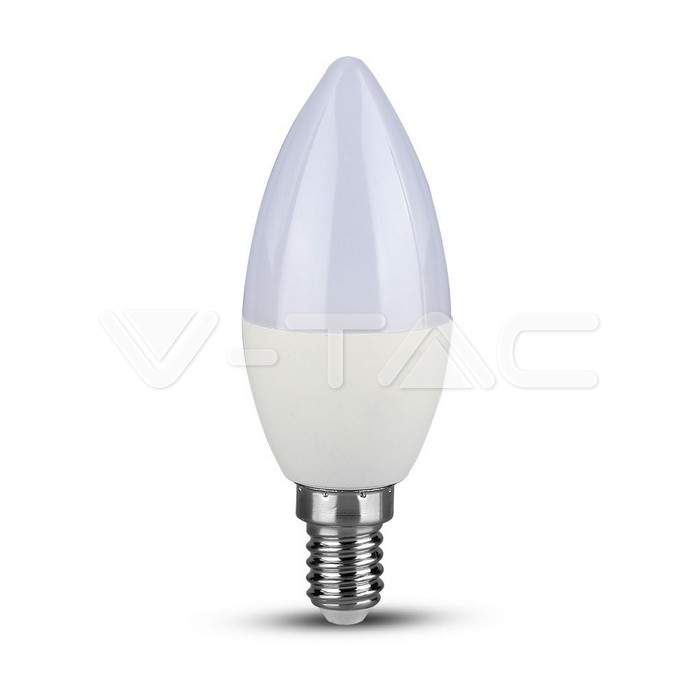

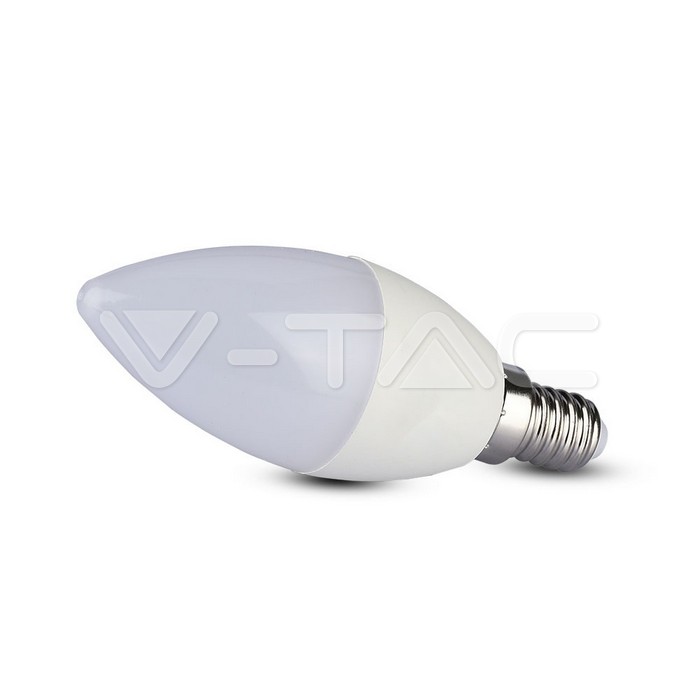

LED Bulb - SAMSUNG CHIP 7W E14 Plastic Candle 3000K, VT-268

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU111
Brand: V-TAC
Type / Description: LED žárovka SAMSUNG čip - záruka 5 let
Nominal voltage (V):220 - 240
Nominal wattage:7
Colour temperature:3000K
Colour rendering index CRI:> >80
Luminous flux:600
Lamp efficacy:86
Unit EAN13 code: 3800157637107
Use: Components for LED lighting
Guarantee: 60 months

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet LED Bulb - SAMSUNG CHIP 7W E14 Plastic Candle 3000K, VT-268


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Material Plastic
Nominal service life (h) 30 000 hrs h
Nominal voltage (V) AC: 220-240V V
Socket E14
Dimmable Ne
Energy efficiency class (canceled regulation!) A+
Nominal voltage (V) 220 - 240 V
Degree of protection (IP) IP20
Suitable for degree of protection (IP) IP20
Název položky LED žárovka SAMSUNG čip - záruka 5 let
Skupina produktu V-TAC VT-268
Třída energetické účinnosti podle 2019/2015 F
Cykly zapnití/vypnutí > >20000
EAN13 (jednotkový) 3,80016E+12

Working conditions

Power 7W W
Operating method Not suitable for use in extreme conditions. Normal working c
Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles >20000
Rated service life 30000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 45W W

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS

Lamp lumen maintenance factor (LLMF)

Lumen maintenance factor at the end of the nominal life 70 %

Electrical characteristics

Nominal wattage 7 W
Frequency 50Hz Hz

Physical characteristics

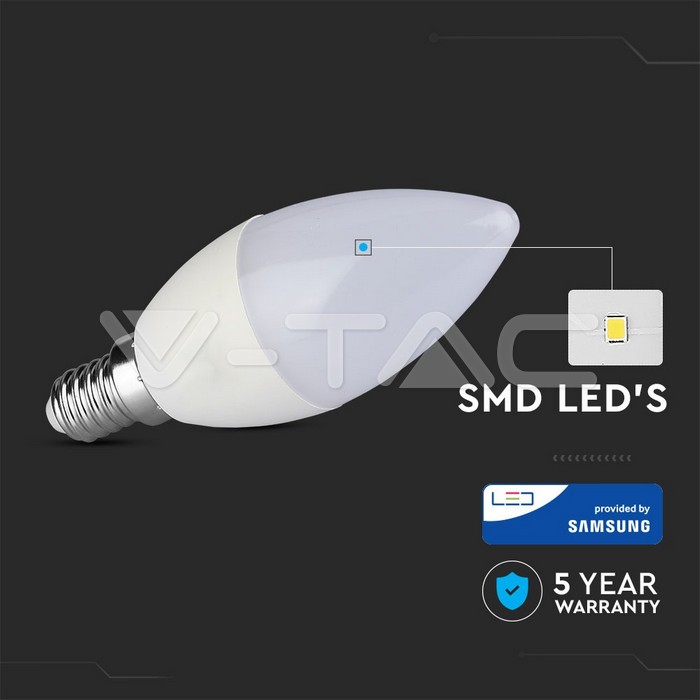

Type of chip SAMSUNG Chip

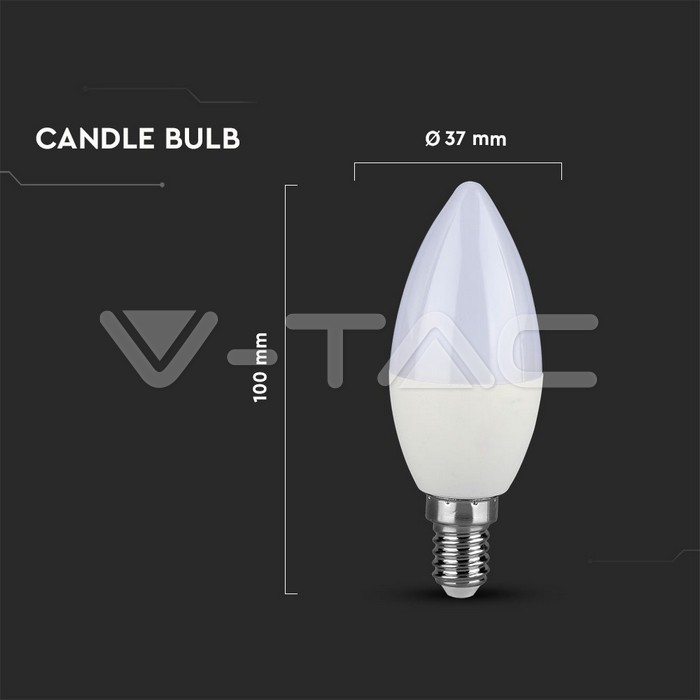

Height 100 mm mm
Colour housing bílá
Weight netto 0,028 g
Diameter 37 mm
Lamp shape Cale
Material Plastic
Diameter lamp 37 mm mm
Volume per unit 0,000208 m3
Počet ks v balení 200
Barva tělesa V-TAC White
Počet kusů v kartonu 1

Lighting characteristics

Luminous flux 600 lm
Colour temperature 3000K K

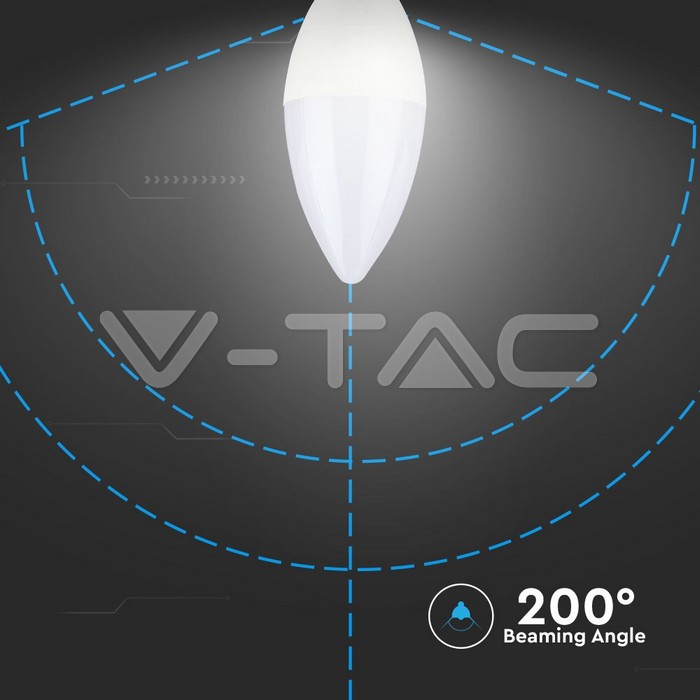

Radiation angle 200 °
Colour rendering index CRI >80 Ra
Maximal intensity (Cd) 81.3 Cd Max. Cd
Colour of light acc. EN 12464-1 Warm white
Effective luminous flux 600 lm
Beam angle Degrees (°) 200° °
Barva světla Warm White

Energetic characteristics

Lamp Power factor (PF) >0.5
Lamp efficacy 86 lm/W
