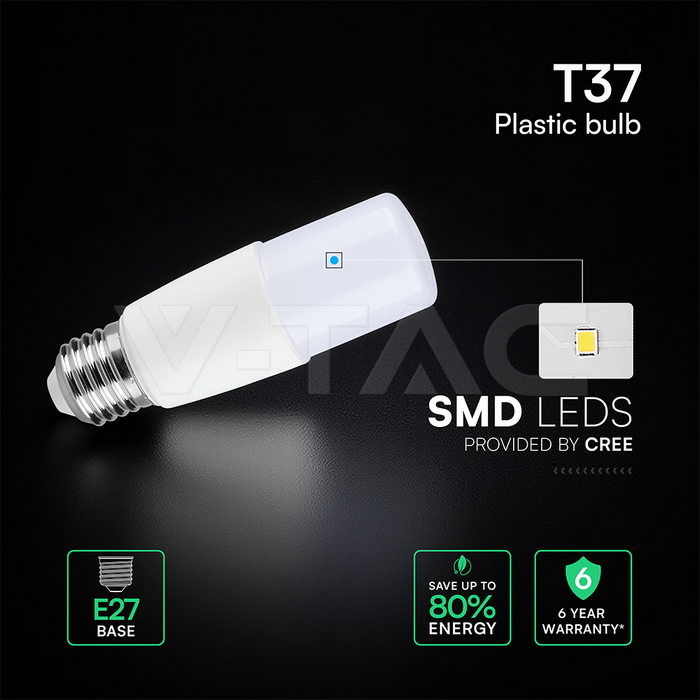

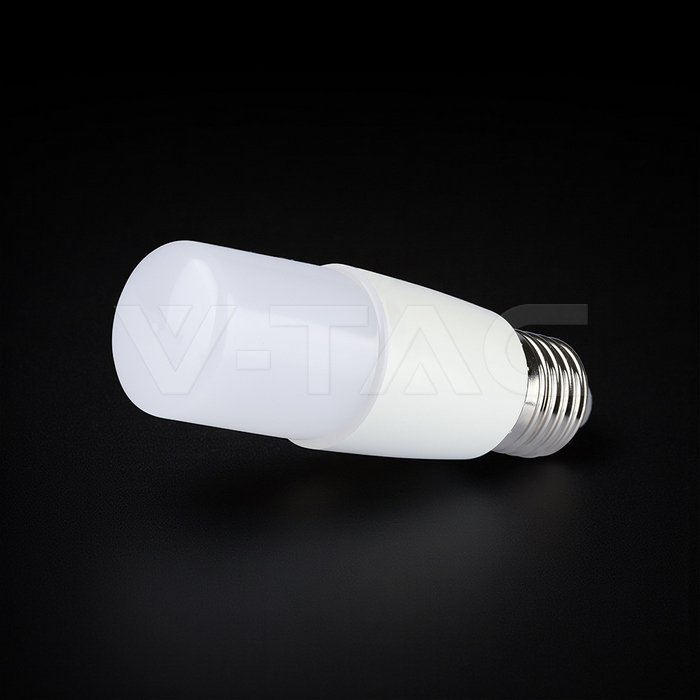

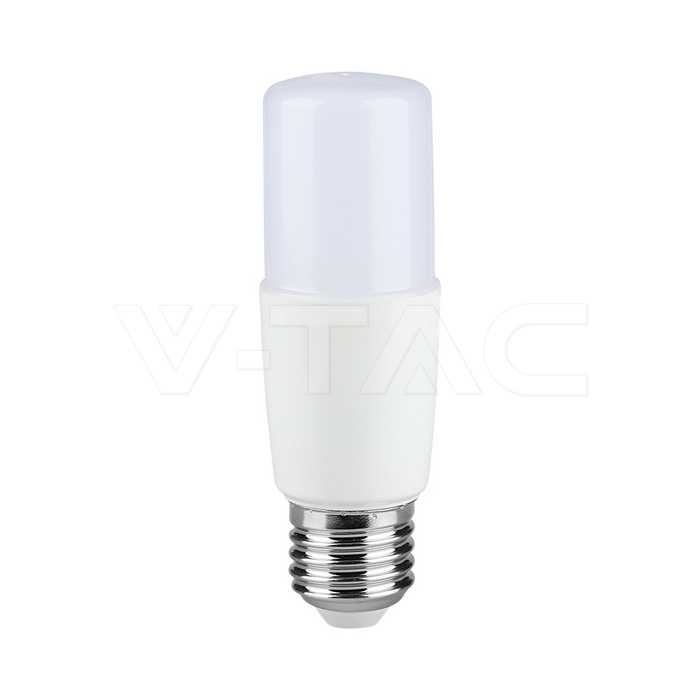

LED Bulb - SAMSUNG CHIP 7,5W E27 T37 Plastic 6400K, VT-237

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU21146
Brand: V-TAC
Type / Description: LED žárovka SAMSUNG čip - záruka 5 let
Nominal voltage (V):220 - 240
Nominal wattage:7,5
Colour temperature:6500K
Colour rendering index CRI:> >80
Luminous flux:725
Lamp efficacy:91
Unit EAN13 code: 3800157627597
Use: Components for LED lighting
Guarantee: 60 months

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet LED Bulb - SAMSUNG CHIP 7,5W E27 T37 Plastic 6400K, VT-237


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Material Thermoplastic
Nominal service life (h) 25,000 Hours h
Nominal voltage (V) AC:220-240V V
Socket E27
Dimmable Ne
Energy efficiency class (canceled regulation!) A+
Nominal voltage (V) 220 - 240 V
Degree of protection (IP) IP20
Suitable for degree of protection (IP) IP20
Název položky LED žárovka SAMSUNG čip - záruka 5 let
Skupina produktu V-TAC VT-237
Třída energetické účinnosti podle 2019/2015 F
Cykly zapnití/vypnutí > >20000
EAN13 (jednotkový) 3800170253032

Working conditions

Power 7,5W W
Operating method -20°C to +45°C
Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles >20000
Rated service life 30000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 50W W

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS

Lamp lumen maintenance factor (LLMF)

Lumen maintenance factor at the end of the nominal life 70 %

Electrical characteristics

Nominal wattage 7,5 W
Frequency 50Hz Hz

Physical characteristics

Type of chip SMD-CREE Chip

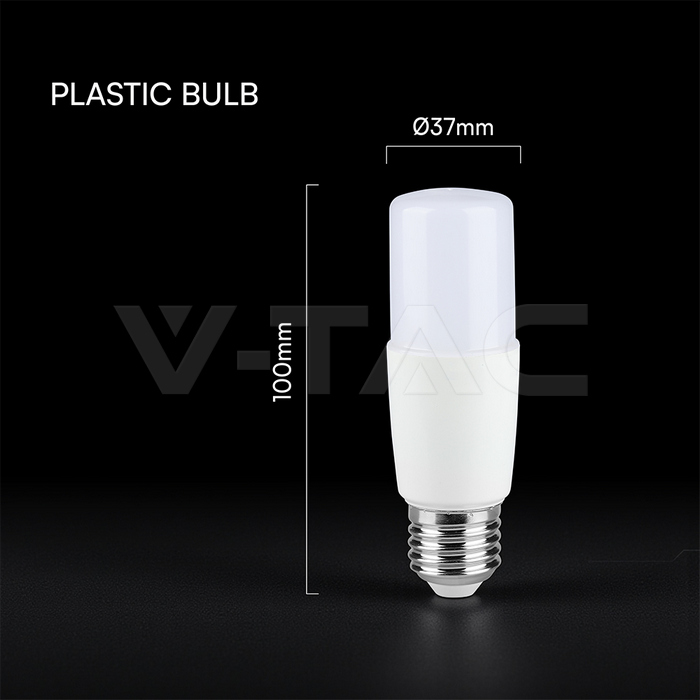

Dimensions (mm) 37x100mm mm
Height 100 mm mm
Colour housing White
Weight netto 30 g
Diameter 37 mm
Lamp shape T37
Material Thermoplastic
Diameter lamp 37 mm mm
Volume per unit 0.00018 m3
Počet ks v balení 200
Barva tělesa V-TAC White
Počet kusů v kartonu 1

Lighting characteristics

Luminous flux 725 lm
Colour temperature 6500K K

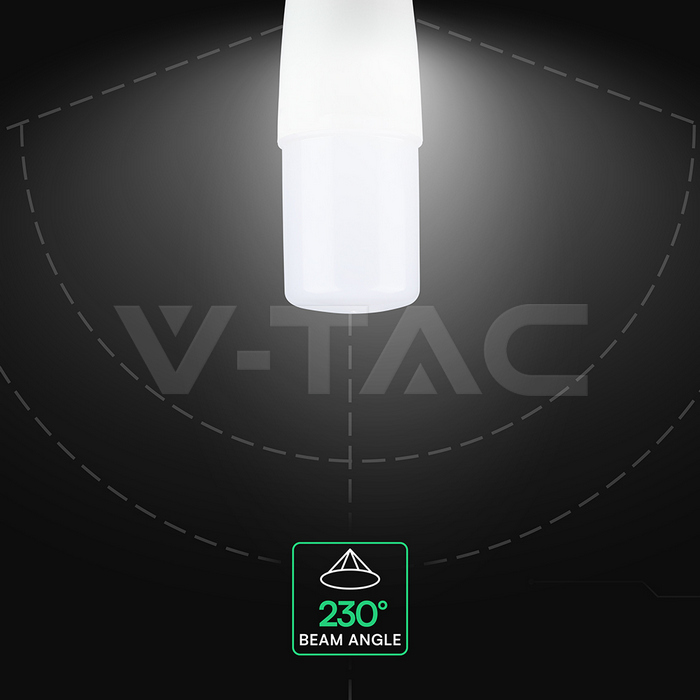

Radiation angle 230 °
Colour rendering index CRI >80 Ra
Colour of light acc. EN 12464-1 White
Effective luminous flux 660 lm lm
Beam angle Degrees (°) 230° °
Barva světla White

Energetic characteristics

Lamp Power factor (PF) >0.5
Lamp efficacy 91 lm/W
