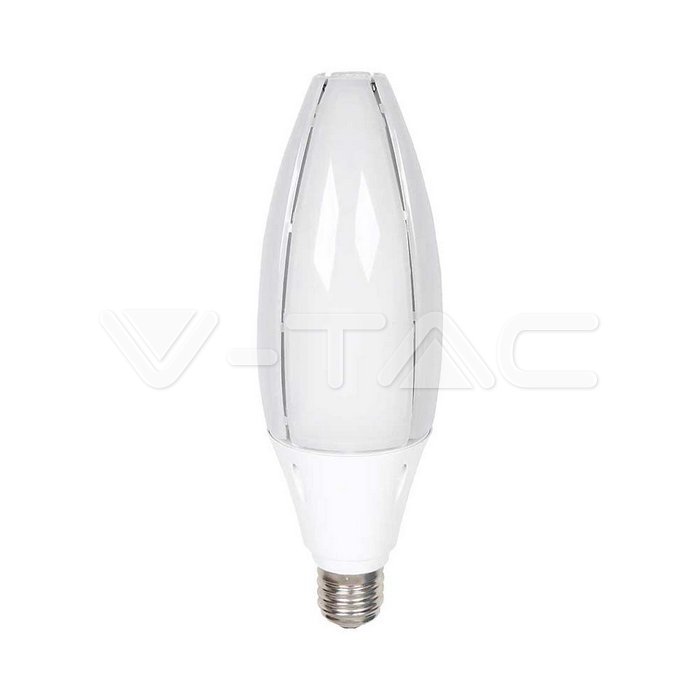

LED Bulb - SAMSUNG CHIP 60W E40 Olive Lamp 4000K, VT-260 (SKU21187)

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU21187
Brand: V-TAC
Type / Description: LED žárovka SAMSUNG čip - záruka 5 let
Nominal voltage (V):220 - 240
Nominal wattage:60
Colour temperature:4000K
Colour rendering index CRI:> >80
Luminous flux:4800
Lamp efficacy:108 lm/W
Unit EAN13 code: 3800157629461
Use: Components for LED lighting
Guarantee: 60 months

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet LED Bulb - SAMSUNG CHIP 60W E40 Olive Lamp 4000K, VT-260 (SKU21187)


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Nominal service life (h) 20,000 hrs h
Nominal voltage (V) AC:220-240V V

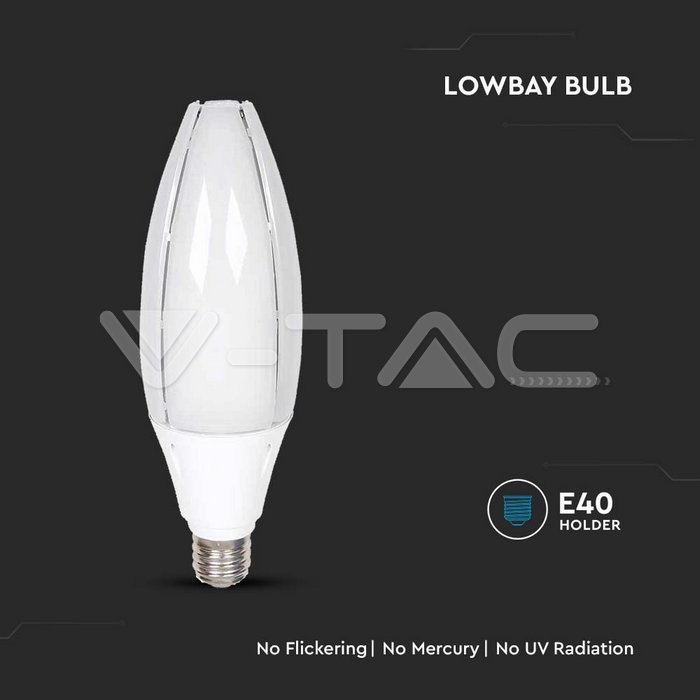

Socket E40
Dimmable Ne
Energy efficiency class (canceled regulation!) A++
Nominal voltage (V) 220 - 240 V
Degree of protection (IP) IP20
Suitable for degree of protection (IP) IP20
Název položky LED žárovka SAMSUNG čip - záruka 5 let
Skupina produktu V-TAC VT-260
Třída energetické účinnosti podle 2019/2015 F
Cykly zapnití/vypnutí > >20000
EAN13 (jednotkový) 3800157689922

Working conditions

Power 60W W
Operating method -20°C to +45°C
Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles >20000
Rated service life 30000 h
Turn-on time 0.001 sec (instant on) s

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS

Lamp lumen maintenance factor (LLMF)

Lumen maintenance factor at the end of the nominal life 70 %

Electrical characteristics

Nominal wattage 60 W
Frequency 50Hz Hz

Physical characteristics

Type of chip SAMSUNG SMD Chip

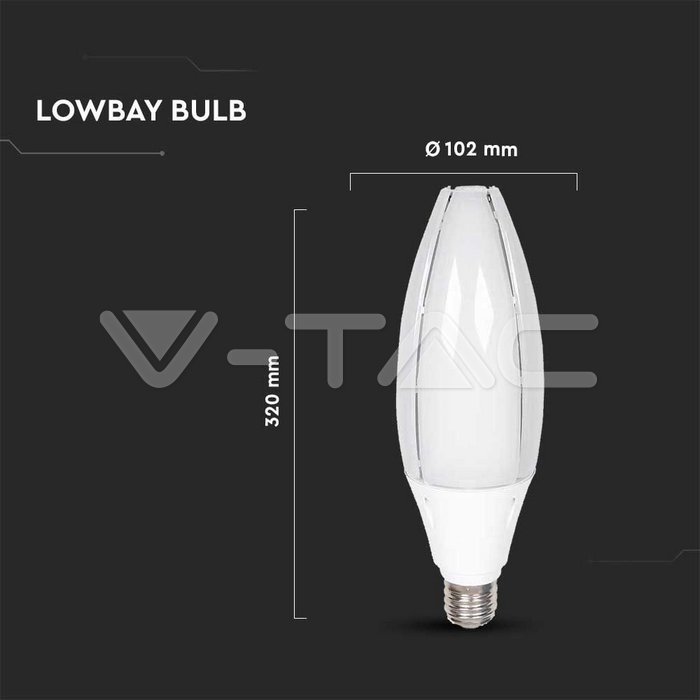

Height 102 mm mm
Colour housing White
Weight netto 700 g
Diameter 102 mm
Lamp shape Olive
Material Aluminium
Diameter lamp 320 mm mm
Volume per unit 0,00437 m3
Počet ks v balení 20
Barva tělesa V-TAC White
Počet kusů v kartonu 1

Lighting characteristics

Luminous flux 4800 lm
Colour temperature 4000K K
Radiation angle 27 °
Colour rendering index CRI >80 Ra
Colour of light acc. EN 12464-1 Natural White
Effective luminous flux 6500 lm lm

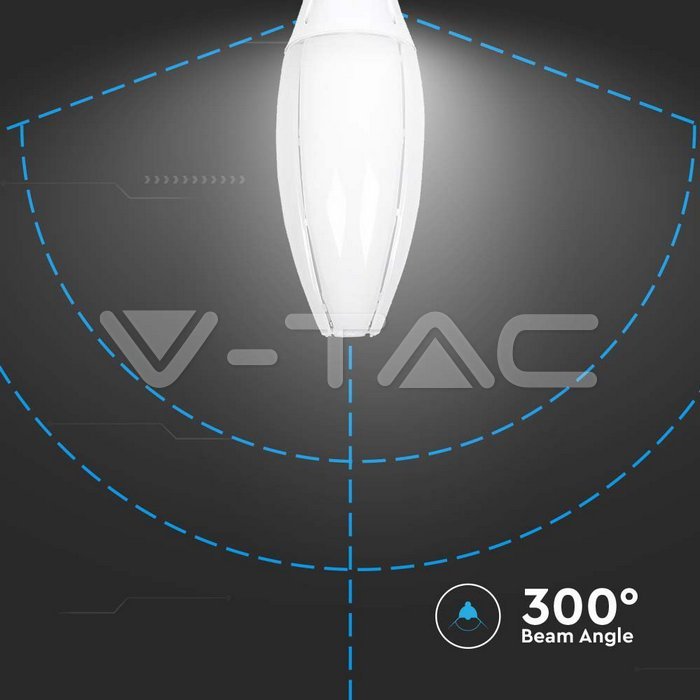

Beam angle Degrees (°) 300° °
Barva světla Natural White

Energetic characteristics

Lamp Power factor (PF) >0.9
Lamp efficacy 108 lm/W lm/W
