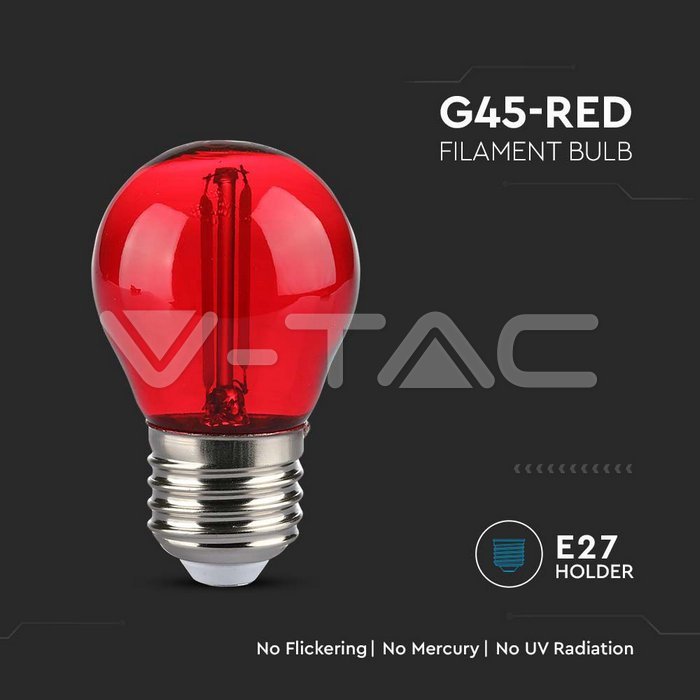

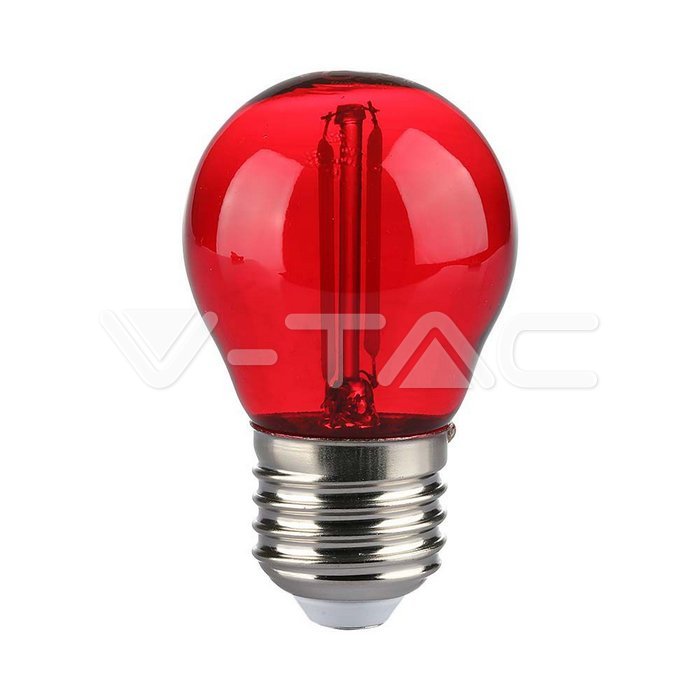

LED Bulb - 2W Filament E27 G45 Red Color, VT-2132

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU217413
Brand: V-TAC
Type / Description: LED žárovka červená/LED žárovka E27/LED žárovka filament G45,G80, G125
Nominal voltage (V):220 - 240
Nominal wattage:2
Colour rendering index CRI:> 80
Luminous flux:60
Lamp efficacy:30
Unit EAN13 code: 3800157630290

Download


More photos available

Technical drawing not available



Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Material Glass
Nominal service life (h) 20,000 hrs h
Nominal voltage (V) AC:220-240V V
Socket E27
Dimmable Ne
Energy efficiency class (canceled regulation!) A
Nominal voltage (V) 220 - 240 V
Degree of protection (IP) IP20
Suitable for degree of protection (IP) IP20
Název položky LED žárovka červená/LED žárovka E27/LED žárovka filament G45
Skupina produktu V-TAC VT-2132
Cykly zapnití/vypnutí > >15000
EAN13 (jednotkový) 3800157684040

Working conditions

Power 2W W
Operating method -20°C to +45°C
Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles >15000
Rated service life 20000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 10 W

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS

Lamp lumen maintenance factor (LLMF)

Lumen maintenance factor at the end of the nominal life 70 %

Electrical characteristics

Nominal wattage 2 W
Frequency 50Hz Hz

Physical characteristics

Type of chip Filament

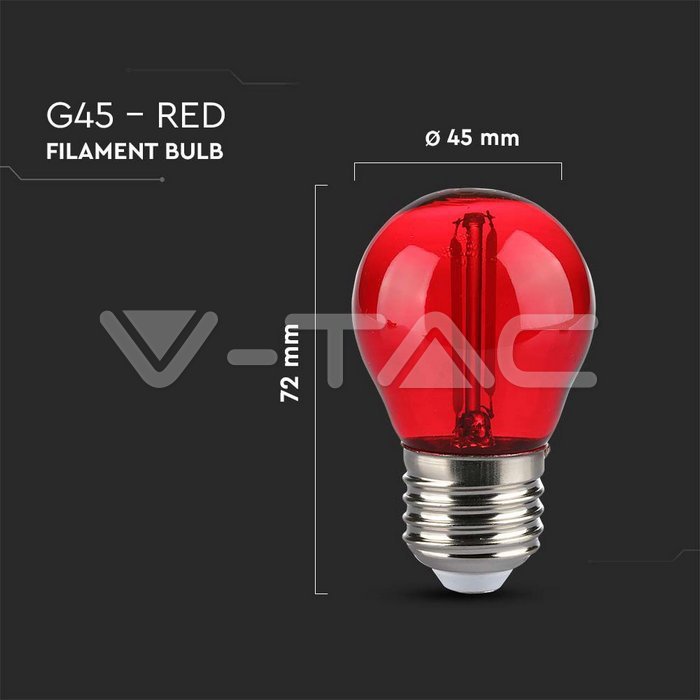

Dimensions (mm) 45x72mm mm
Height 72 mm mm
Colour housing Red
Weight netto 30 g
Diameter 45 mm
Lamp shape G45
Material Glass
Diameter lamp 60 mm mm
Volume per unit 0,000195 m3
Počet ks v balení 100
Barva tělesa V-TAC Red
Počet kusů v kartonu 1

Lighting characteristics

Luminous flux 60 lm

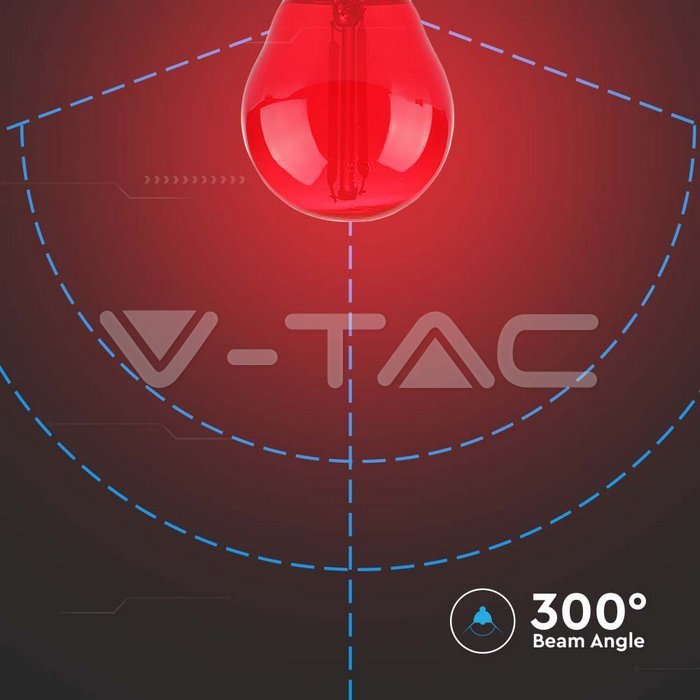

Radiation angle 300 °
Colour rendering index CRI 80 Ra
Colour of light acc. EN 12464-1 Red
Effective luminous flux 60 lm lm
Beam angle Degrees (°) 300° °
Barva světla Red

Energetic characteristics

Lamp Power factor (PF) >0.4
Lamp efficacy 30 lm/W
