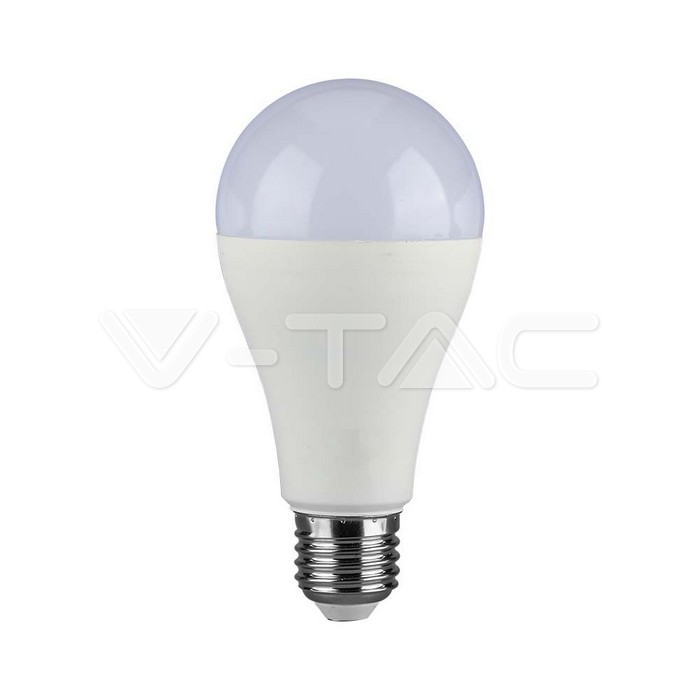

LED Bulb 17W E27 A65 Plastic 4000K, VT-2017

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU214457
Brand: V-TAC
Type / Description: LED žárovka/LED žárovka E27/LED žárovka A65
Nominal voltage (V):220 - 240
Nominal wattage:17
Colour temperature:4000K
Colour rendering index CRI:> >80
Luminous flux:1800
Lamp efficacy:100 lm/W
Unit EAN13 code: 3800157608138

Download


More photos available

Technical drawing not available



Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Material Thermoplastic
Nominal service life (h) 20,000 hrs h
Nominal voltage (V) AC:220-240V V
Socket E27
Dimmable Ne
Energy efficiency class (canceled regulation!) A+
Nominal voltage (V) 220 - 240 V
Degree of protection (IP) IP20
Suitable for degree of protection (IP) IP20
Název položky LED žárovka/LED žárovka E27/LED žárovka A65
Skupina produktu V-TAC VT-2017
Třída energetické účinnosti podle 2019/2015 F
Cykly zapnití/vypnutí > >20000
EAN13 (jednotkový) 3800170211377

Working conditions

Power 17W W
Operating method -20°C to +45°C
Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles 15000
Rated service life 20000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 110W W

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS

Lamp lumen maintenance factor (LLMF)

Lumen maintenance factor at the end of the nominal life 70 %

Electrical characteristics

Nominal wattage 17 W
Frequency 50Hz Hz

Physical characteristics

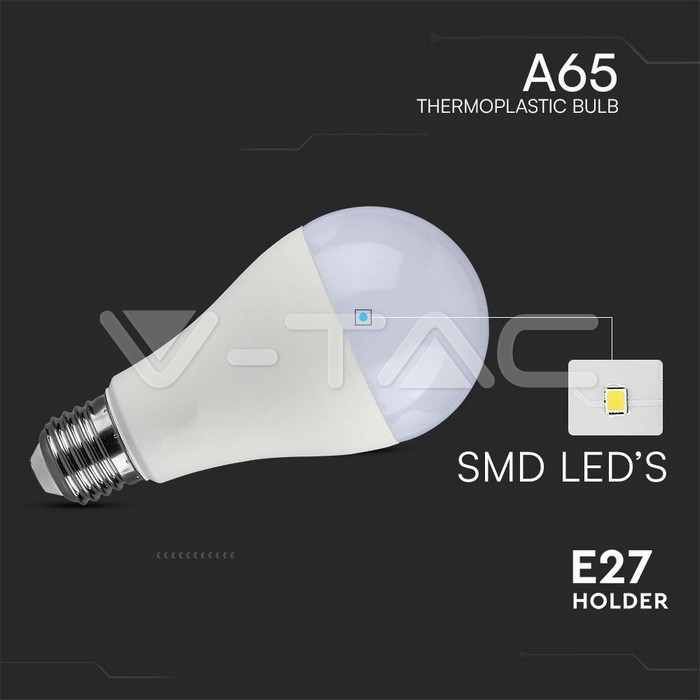

Type of chip SMD

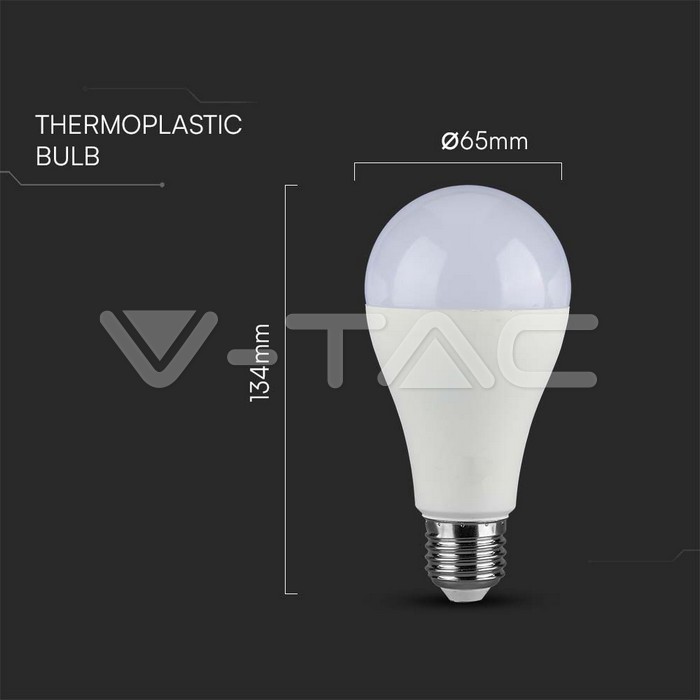

Dimensions (mm) 65x134mm mm
Height 134 mm mm
Colour housing White
Weight netto 60 g
Diameter 65 mm
Lamp shape A65
Material Plastic
Diameter lamp 65mm mm
Volume per unit 0.0007 m3
Počet ks v balení 100
Barva tělesa V-TAC White
Počet kusů v kartonu 1

Lighting characteristics

Luminous flux 1800 lm
Colour temperature 4000K K

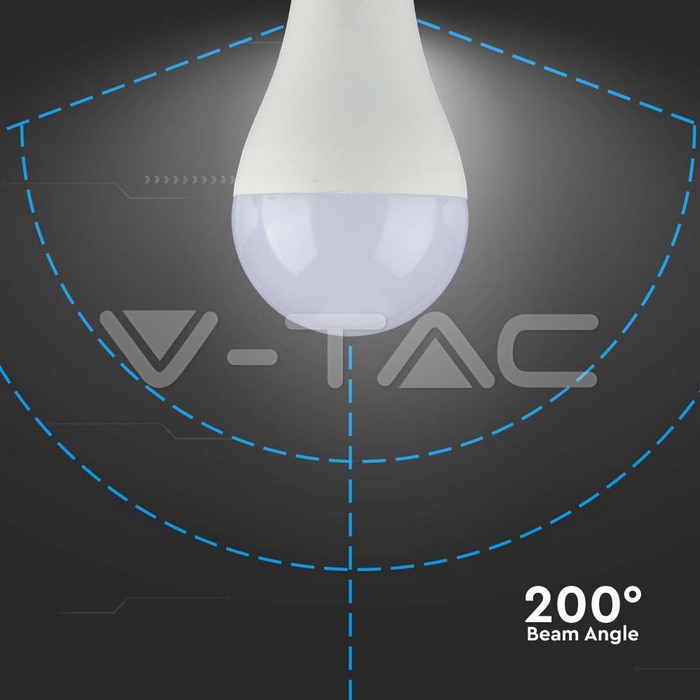

Radiation angle 200 °
Colour rendering index CRI >80 Ra
Colour of light acc. EN 12464-1 Natural White
Effective luminous flux 1710 lm lm
Beam angle Degrees (°) 200° °
Barva světla Natural White

Energetic characteristics

Lamp Power factor (PF) >0.5
Lamp efficacy 100 lm/W lm/W
