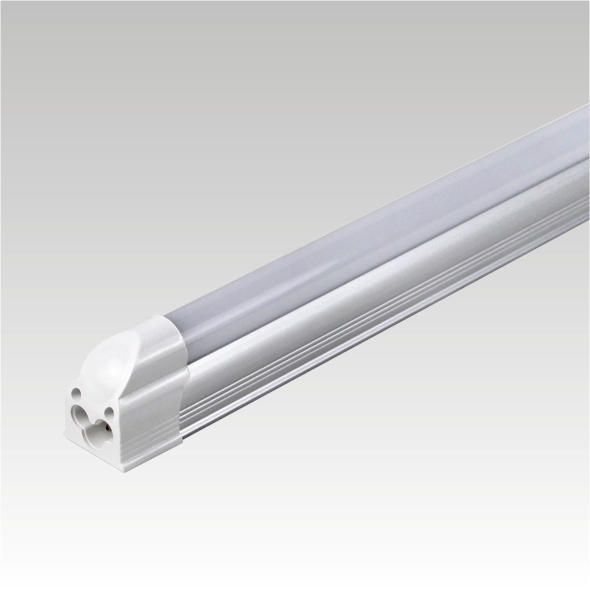

DIANA LED 230-240V 18W/865 IP44

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: 268000035
Brand: NBB
Type / Description: LED svítidlo linkové
Jmenovité napětí (V):230 - 240
Jmenovitý proud:0,24
Nominal wattage:18
Light Colour:chladná denní
Colour temperature:6500
Colour rendering index CRI:> 80
Luminous flux:1800
Lamp efficacy:111,0
Unit EAN13 code: 8595209922038
Use: Components for LED lighting

Download

Technical sheet
Product Data sheet


Download

Technical drawing

18.65 kB - Technical drawing


Download

Technical sheet

Technical sheet DIANA LED 230-240V 18W/865 IP44

Download

Product Data sheet

2.01 MB


Wiring Diagram not available


General information

Model/Description Linkové svítidlo
Finish T5 integrované
Brand/Manufacturer NBB
Material Aluminium
Lamp type LED
Nominal service life (h) 50000 h
Degree of protection (IP) IP44
Model Přisazené svítidlo
Dimmable Ne
Lamp type LED
Type of luminaire Svítidlo s krytem
Electrical connection with connector system Ano
Nominal voltage (V) 230 - 240 V
Degree of protection (IP) IP44
Suitable for number of lamps 1
Dimmable by conventional dimmers Ne
Název položky DIANA LED 230-240V 18W/865 IP44

Working conditions

Integrated driver Ano
Operating frequency 50 - 60 Hz
Light source is part of the fixture Ano
Permanent connection to mains supply No
Hot restart Ano
Protection against overvoltage Ano
Application Všeobecné osvětlování
Suitable for through-wiring Ano
With movement sensor Ne
Suitable for frequent switching Ano
Ambient temperature -20/+40 °C
Suitable for emergency lighting Ne
Fire resistance "D" Ano
Type of dimming Nestmívatelné
Emergency unit integrated Ne
With twilight switch Ne

EuP Parameters

Average Lifetime B50 (h) 50000 h
Luminescence Life maintenance factor 80,0 %
Factor of functional reliability (LSF) after nom. life 50,0 %
Time to 60 % luminous flux 0,3 s
Starting time to 90% of the light flow 0,4 s
Number of maximal switching cycles >50000
The rate of premature failures <0,1 %
Colour difference 90,0 %
Rated service life 50000 h
Energy consumption (AGGR) 17,2 kWh/1000h
Turn-on time <0,3 s
GLS replacement 115,0 W

Lighting characteristics

Color rendering 1B
Light Colour chladná denní
Wavelength range 360 - 760 nm
Dominant wavelength 578,3 nm
Luminous flux 1800 lm
Colour temperature 6500 K
Colour rendering index CRI 80 Ra
Colour of light 840
Colour controllable (RGB) Ne
Light outlet Přímé
Light sharing Symetrické
Colour temperature 6500 K
Effective luminous flux 1800 lm
Beam angle Degrees (°) 120 °
Chromaticity coordinates x 0,3752
Chromaticity coordinates y 0,3745

Environmental characteristics

Mercury content 0,00 mg

Electrical characteristics

Nominal wattage 18 W
Rated power (W) 17,2 W
Operating voltage (V) 90 - 265 V
Type of Voltage AC
Lowest permitted operating voltage (V) 90 V
Lamp power 18 W
Circuit Ostatní
Voltage type AC
Nominal current (A) 0,24 A

Physical characteristics

Finish diffuzor Opálový
Type of connector 3P
Type of chip SMD3014
Dimensions (mm) 1209 x 24 x 33 mm
Packing method 16 - 1
Width 24 mm
Height 33 mm
Depth (mm) 24 mm
Colour housing Stříbrná
Weight netto 340 g
With socket outlet Ne
Cable length 400 mm
With switch Ne
Length 1209 mm
Material housing Aluminium
Material Aluminium
Colour cover Bílá
Material cover Opálový plast
Impact strength IK04
Power cable with quick coupling Ano
Type of surface Matný
Number of LEDs 184 čipů
Reflector perforated Ne

Additional information

With lamp Ano

Safety information

Insulation class Třída I
Safety instructions www.nbb.cz
Protection class Ochranným vodičem

Energetic characteristics

Energy Efficiency Index A1
Lamp Power factor (PF) >0,95
Rated efficiency after 100h 98,0 %
Lamp efficacy 111,0 lm/W
