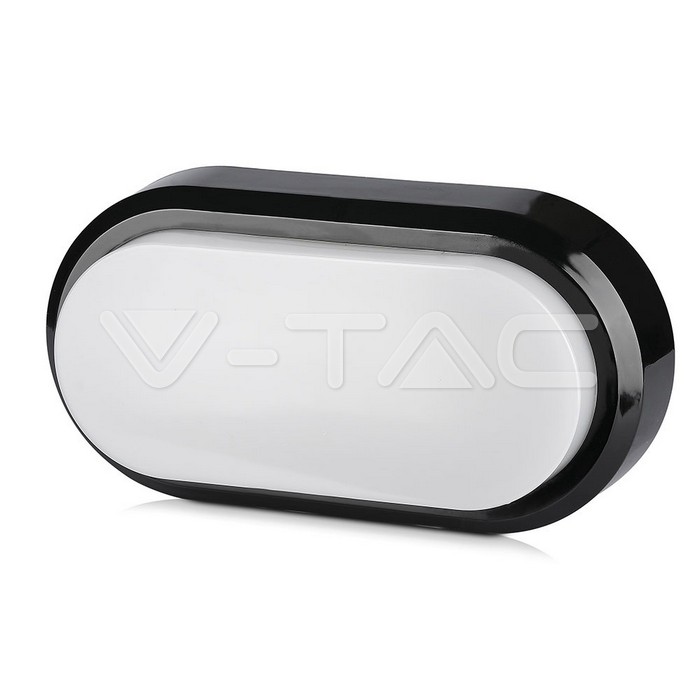

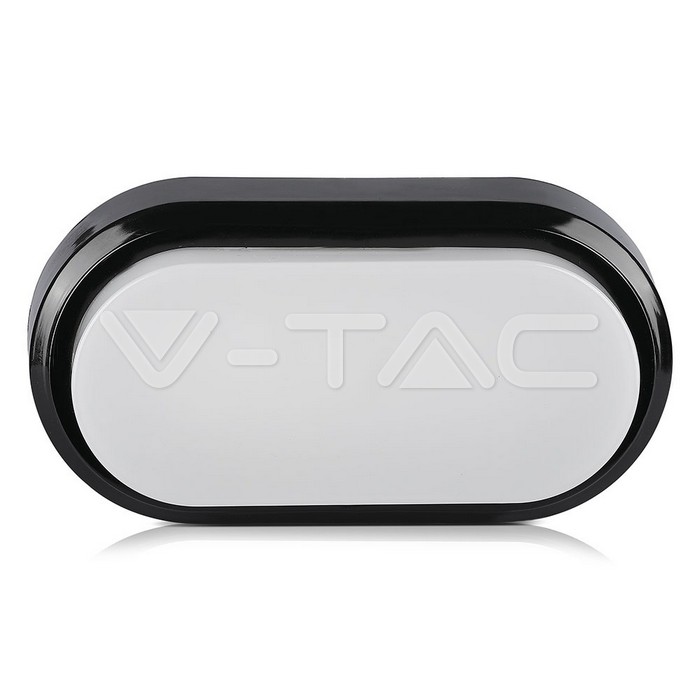

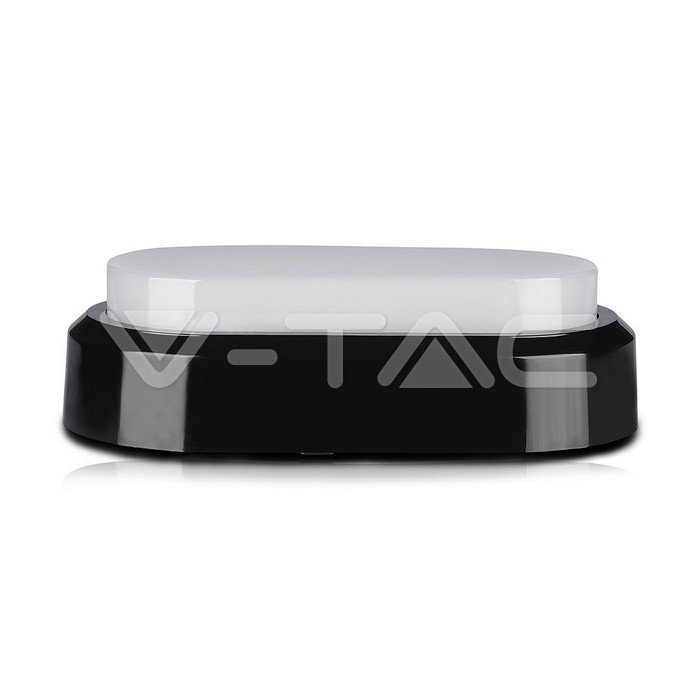

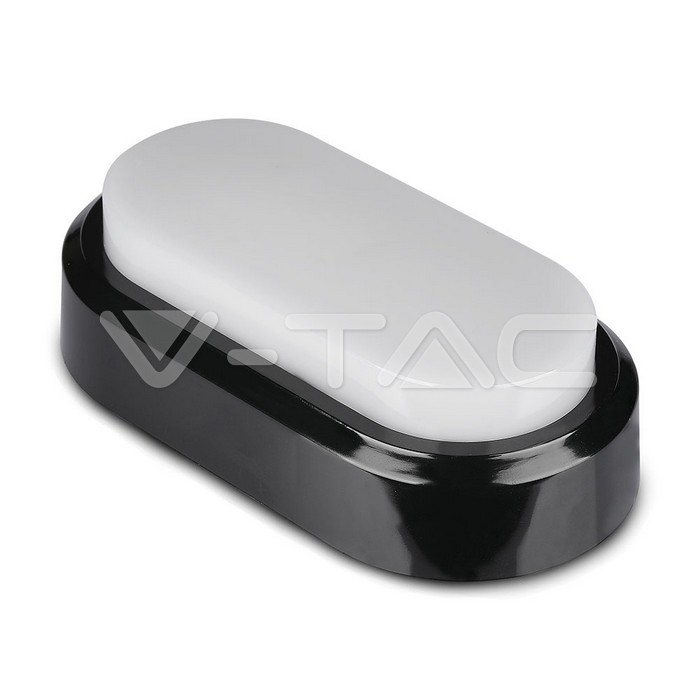

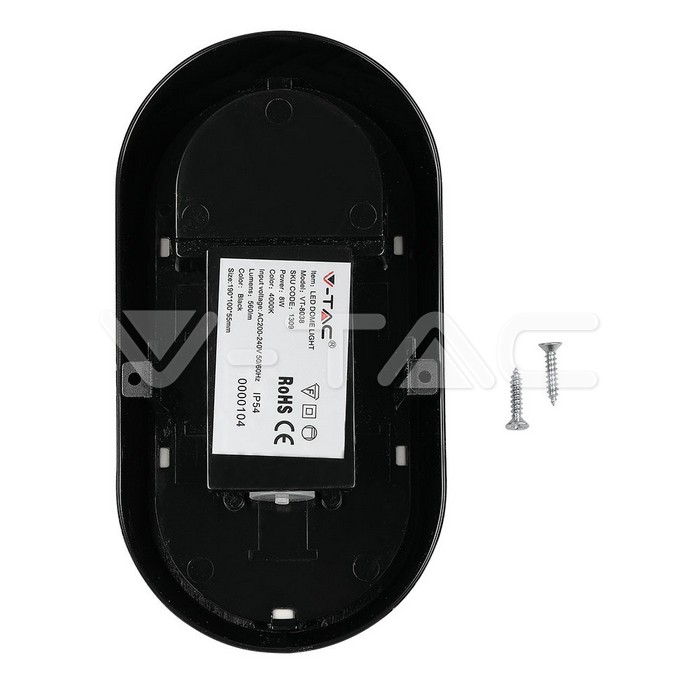

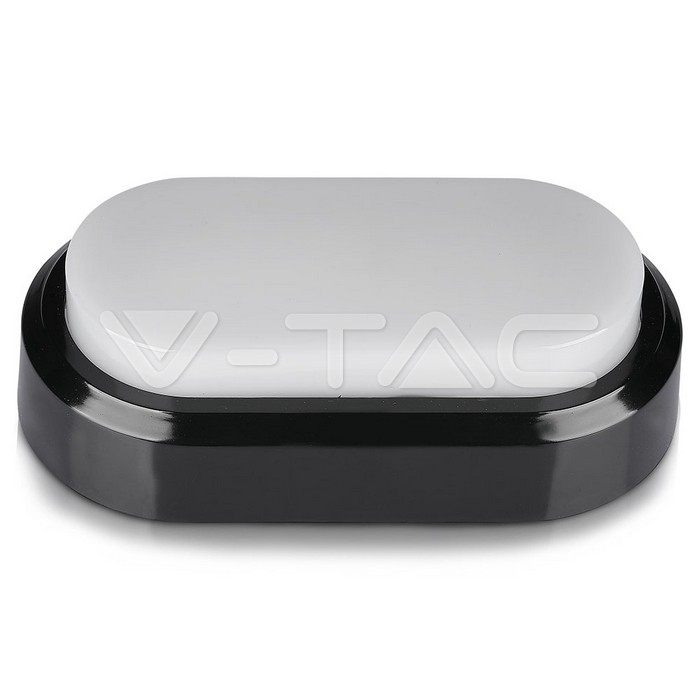

8W Rectangle Oval Dome Light Black Body White IP54, VT-8038

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU1310
Brand: V-TAC
Type / Description: LED Stropní osvětlení
Nominal voltage (V):200 - 240
Nominal wattage:8
Colour temperature:6400K
Colour rendering index CRI:> >70
Luminous flux:560
Lamp efficacy:70
Unit EAN13 code: 3800157620284

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet 8W Rectangle Oval Dome Light Black Body White IP54, VT-8038


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Nominal service life (h) 20000 hrs h
Nominal voltage (V) AC: 200-240V V
Dimmable Ne
Energy efficiency class (canceled regulation!) A+
Nominal voltage (V) 200 - 240 V

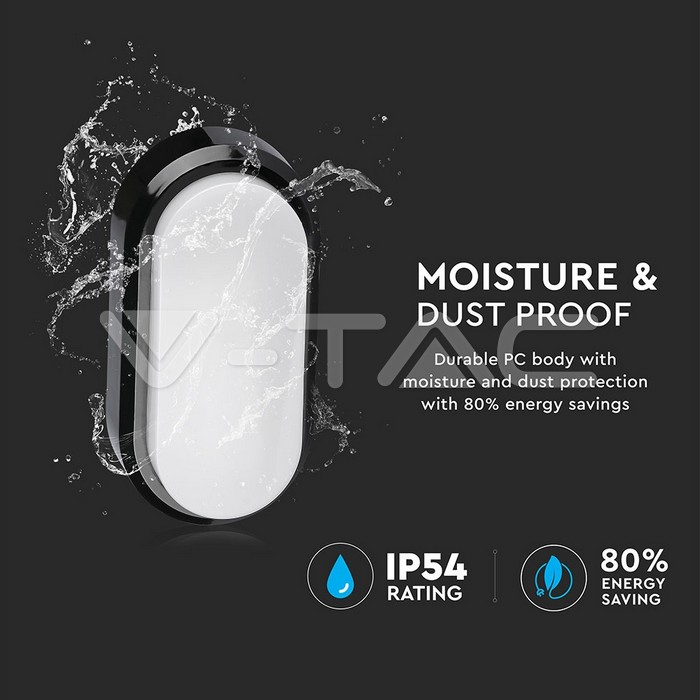

Degree of protection (IP) IP54
Suitable for degree of protection (IP) IP54
Název položky LED Stropní osvětlení
Skupina produktu V-TAC VT-8038
Třída energetické účinnosti podle 2019/2015 G
Cykly zapnití/vypnutí > 10000
EAN13 (jednotkový) 3,80016E+12

Working conditions

Reflector rotatable Ne
Power 8W W
Operating method Not suitable for use in extreme conditions. Normal working c
Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles 10000
Rated service life 20000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 40W W

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS

Electrical characteristics

Nominal wattage 8 W
Frequency 50 - 60 Hz

Physical characteristics

Type of chip SMD

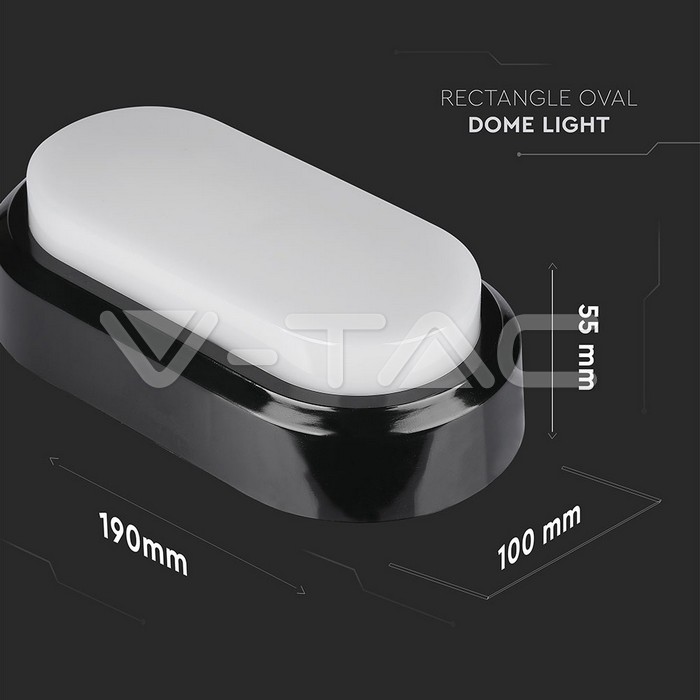

Dimensions (mm) 190 x 100 x 55 mm mm
Shape Oval
Colour housing černá
Weight netto 0,25 g
Impact strength IK07
Volume per unit 0,001330875 m3
Počet ks v balení 20
Tvar V-TAC Rectangle Oval
Barva tělesa V-TAC Black
Počet kusů v kartonu 1

Lighting characteristics

Luminous flux 560 lm
Colour temperature 6400K K
Radiation angle 12 °
Colour rendering index CRI >70 Ra
Maximal intensity (Cd) 178.25 Cd Max. Cd
Colour of light acc. EN 12464-1 white
Effective luminous flux 560 lm
Beam angle Degrees (°) 120° °
Barva světla White

Energetic characteristics

Lamp Power factor (PF) >0.5
Lamp efficacy 70 lm/W
