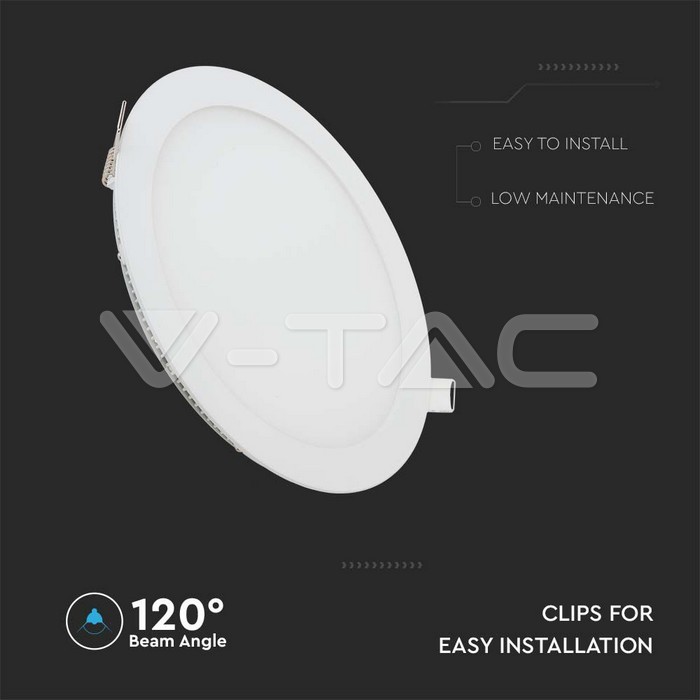

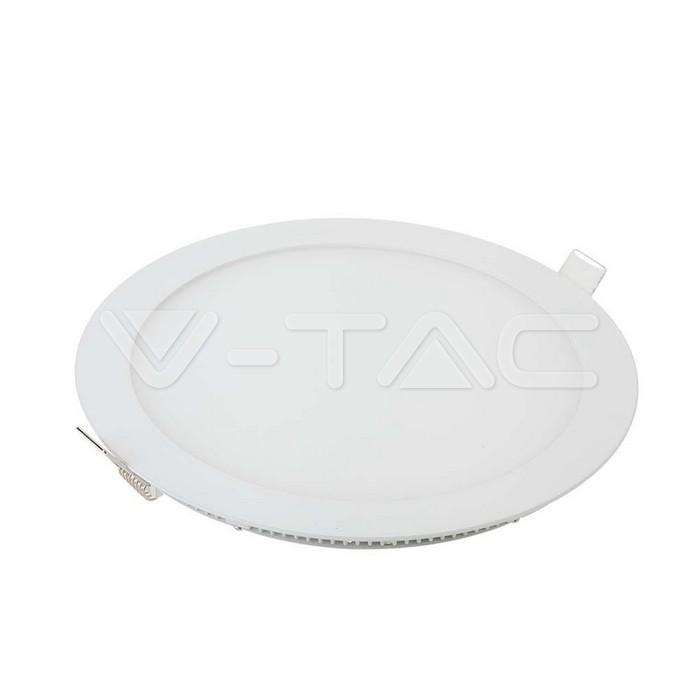

6W LED Premium Panel Downlight - Round Warm White, VT-607 (214854)

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU214854
Brand: V-TAC
Type / Description: LED panel/ LED mini panel/ LED premium panels
Nominal voltage (V):200 - 240
Nominal wattage:6
Colour temperature:3000K
Colour rendering index CRI:> >80
Luminous flux:420
Lamp efficacy:70
Unit EAN13 code: 3800230629753

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet 6W LED Premium Panel Downlight - Round Warm White, VT-607 (214854)


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Material Aluminum+PMMA+PS
Nominal service life (h) 20,000 hrs h
Nominal voltage (V) AC:85-265V V
Dimmable Ne
Energy efficiency class (canceled regulation!) A
Nominal voltage (V) 200 - 240 V
Degree of protection (IP) IP20
Suitable for degree of protection (IP) IP20
Název položky LED panely/ LED mini panely/ LED premium panels
Skupina produktu V-TAC VT-607
Třída energetické účinnosti podle 2019/2015 G
Cykly zapnití/vypnutí > >15000
EAN13 (jednotkový) 3800157686082

Working conditions

Power 6W W
Temperature -0,444444444 °C

Physical characteristics

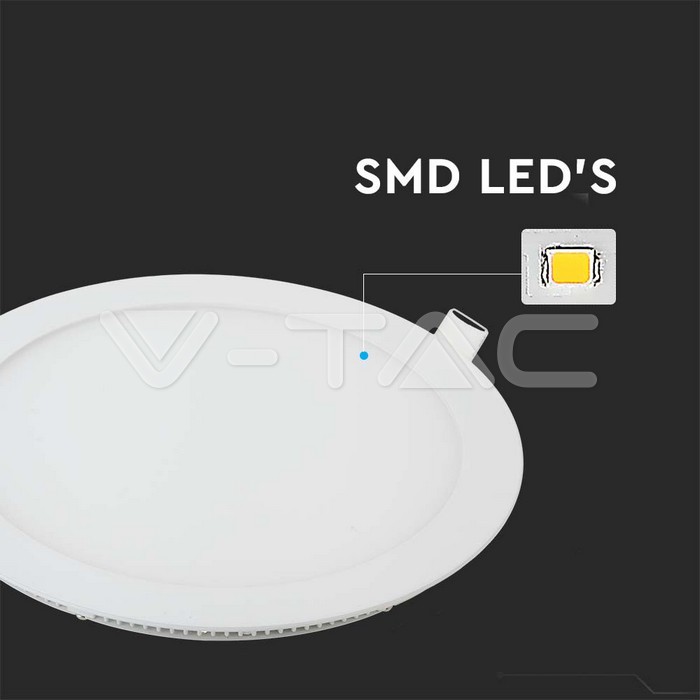

Type of chip SMD
Dimensions (mm) 120x12 mm mm
Width 25 mm
Shape Round
Colour housing White
Weight netto 160 g
Diameter 120 mm
Material Aluminium
Volume per unit 0,000756 m3
Počet ks v balení 40
Tvar V-TAC Round
Barva tělesa V-TAC White
Počet kusů v kartonu 1

Lighting characteristics

Luminous flux 420 lm
Colour temperature 3000K K
Radiation angle 120 °
Colour rendering index CRI >80 Ra
Colour of light acc. EN 12464-1 Warm White
Effective luminous flux 490 lm lm
Beam angle Degrees (°) 120° °
Barva světla Warm White

Energetic characteristics

Lamp Power factor (PF) >0.7
Lamp efficacy 70 lm/W

Electrical characteristics

Nominal wattage 6 W
Frequency 50 - 60 Hz

Mounting methods/application

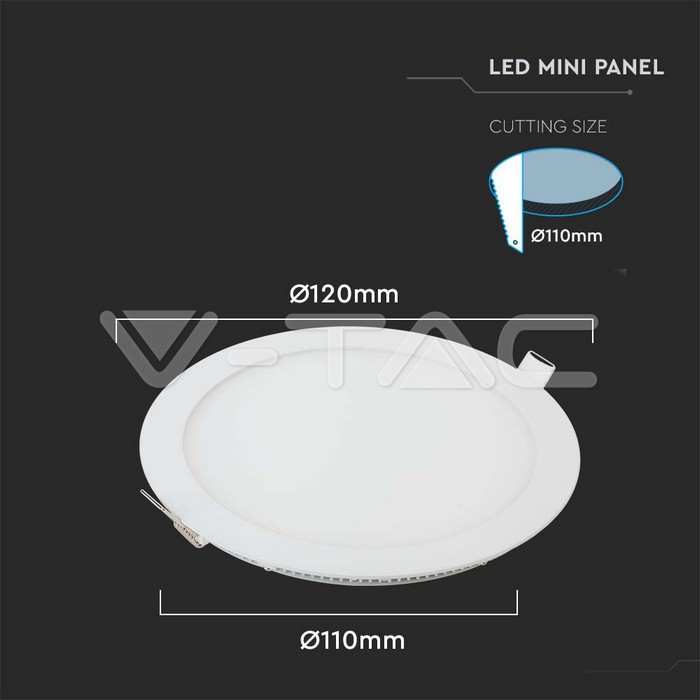

Dimensions of installation hole 110mm mm

EuP Parameters

Number of maximal switching cycles 15000
Rated service life 20000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 24 W

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS
