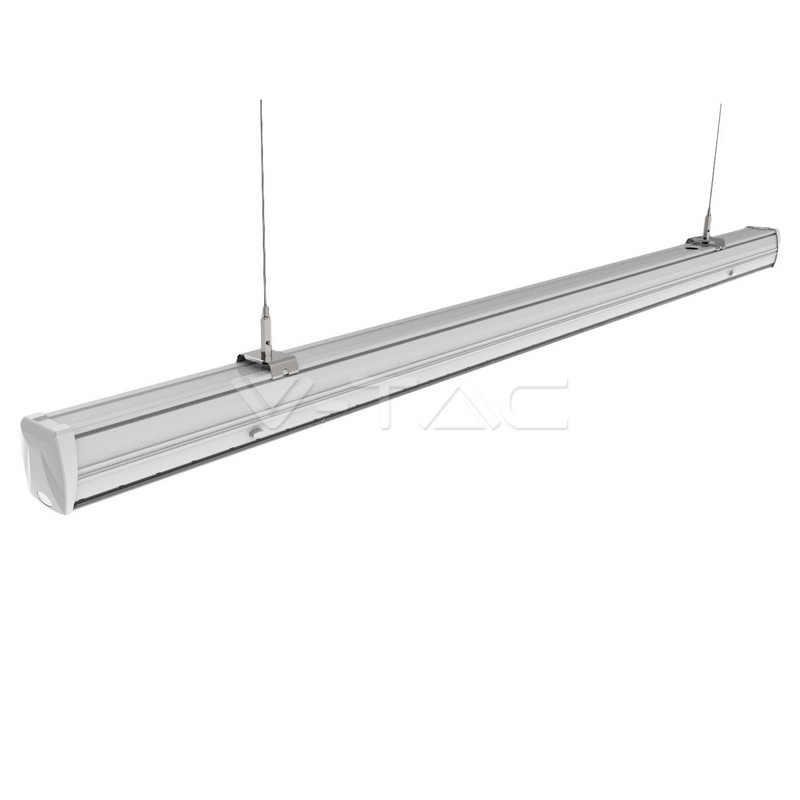

50W LED Linear Master Trunking 90° Lens Natural White, VT-4551D

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU1360
Brand: V-TAC
Type / Description: LED Lineární osvětlení
Nominal voltage (V):220 - 240
Nominal wattage:50
Colour temperature:4000K
Colour rendering index CRI:> >80
Luminous flux:8000
Lamp efficacy:160 lm/W
Unit EAN13 code: 3800157625647

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet 50W LED Linear Master Trunking 90° Lens Natural White, VT-4551D


Wiring Diagram not available


General information

Finish Master
Brand/Manufacturer V-TAC
Material Steel
Nominal service life (h) 50 000 hrs h
Nominal voltage (V) AC: 220-240V V
Dimmable Yes
Energy efficiency class (canceled regulation!) A++
Type of luminaire Master
Nominal voltage (V) 220 - 240 V
Degree of protection (IP) IP20
Suitable for degree of protection (IP) IP20
Název položky LED Lineární osvětlení
Skupina produktu V-TAC VT-4551D
Třída energetické účinnosti podle 2019/2015 B
Cykly zapnití/vypnutí > > 25000
Kompatibilita Sensor Compatibility
EAN13 (jednotkový) 3,80016E+12

Working conditions

Power 50W W
Operating method Not suitable for use in extreme conditions. Normal working c
Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles >25000
Rated service life 50000 h
Turn-on time 0.001 sec (instant on) s

Lighting characteristics

Luminous flux 8000 lm
Colour temperature 4000K K
Radiation angle 90 °
Colour rendering index CRI >80 Ra
Maximal intensity (Cd) 4347.11 Cd Max. Cd
Colour of light acc. EN 12464-1 Natural white
Effective luminous flux 8000 lm
Beam angle Degrees (°) 90° °
Barva světla Natural White

Energetic characteristics

Lamp Power factor (PF) >0.9
Lamp efficacy 160 lm/W lm/W

Electrical characteristics

Nominal wattage 50 W
Frequency 50 - 60 Hz

Physical characteristics

Type of chip SMD
Colour housing bílá
Weight netto 4,35 g
Length 1500 mm mm
Material Steel
Volume per unit 0,011539075 m3
Počet ks v balení 2
Barva tělesa V-TAC White
Počet kusů v kartonu 2

Additional information

Note Sensor Compatibility
Dodatečné informace Master module can be independently installedas a single unit

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC
