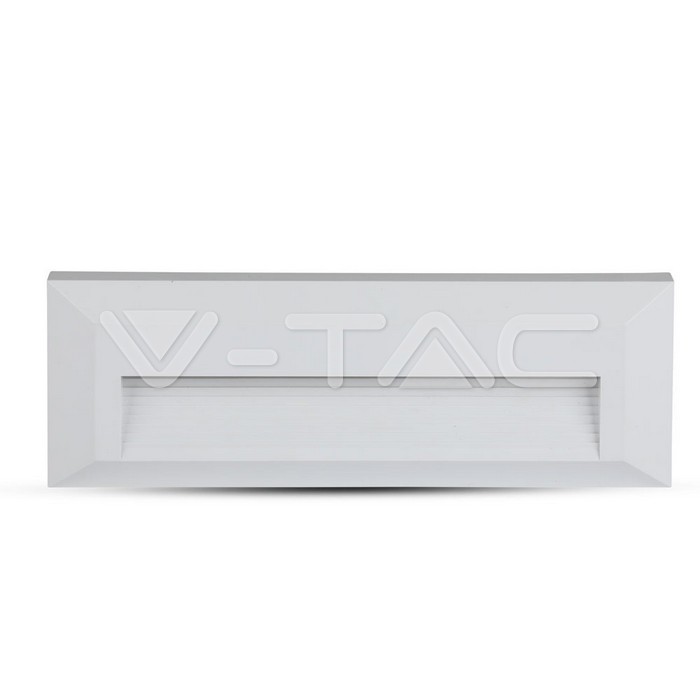

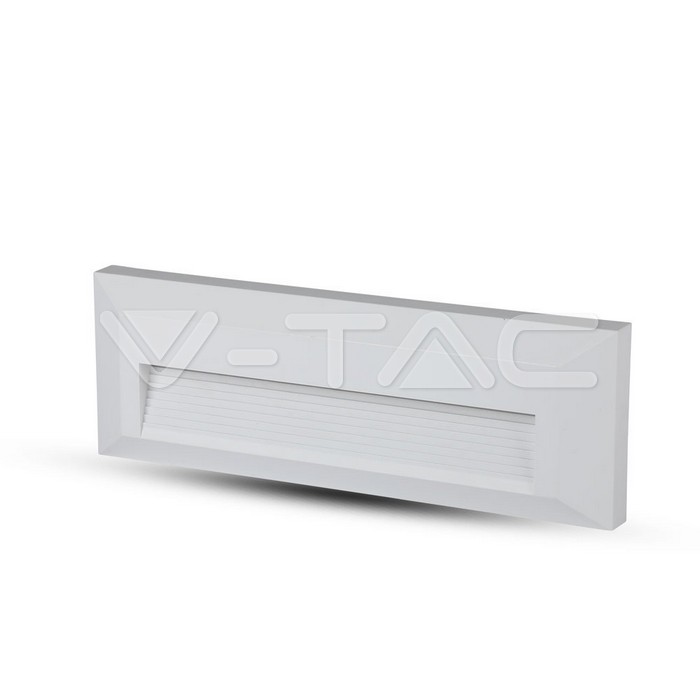

3W LED Step Light White Body Rectangle Warm White, VT-1162

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU1327
Brand: V-TAC
Type / Description: Vestavné obdélníkové LED svítidlo
Nominal voltage (V):100 - 240
Nominal wattage:3
Colour temperature:3000K
Colour rendering index CRI:> >80
Luminous flux:110
Lamp efficacy:37
Unit EAN13 code: 3800157620550

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet 3W LED Step Light White Body Rectangle Warm White, VT-1162


Download

SKU1327_24072019

15.83 kB - SKU1327_24072019.ldt

Wiring Diagram not available


General information

Finish Surfaced
Brand/Manufacturer V-TAC
Material PC
Nominal service life (h) 20 000 hrs h
Nominal voltage (V) AC: 100-240V V
Dimmable Ne
Energy efficiency class (canceled regulation!) A
Nominal voltage (V) 100 - 240 V
Degree of protection (IP) IP65
Suitable for degree of protection (IP) IP65
Název položky LED Downlight fasádové
Skupina produktu V-TAC VT-1162
Třída energetické účinnosti podle 2019/2015 G
Cykly zapnití/vypnutí > > 15000
EAN13 (jednotkový) 3,80016E+12

Working conditions

Reflector rotatable Ne
Power 3W W
Operating method Not suitable for use in extreme conditions. Normal working c
Temperature -0,444444444 °C

Physical characteristics

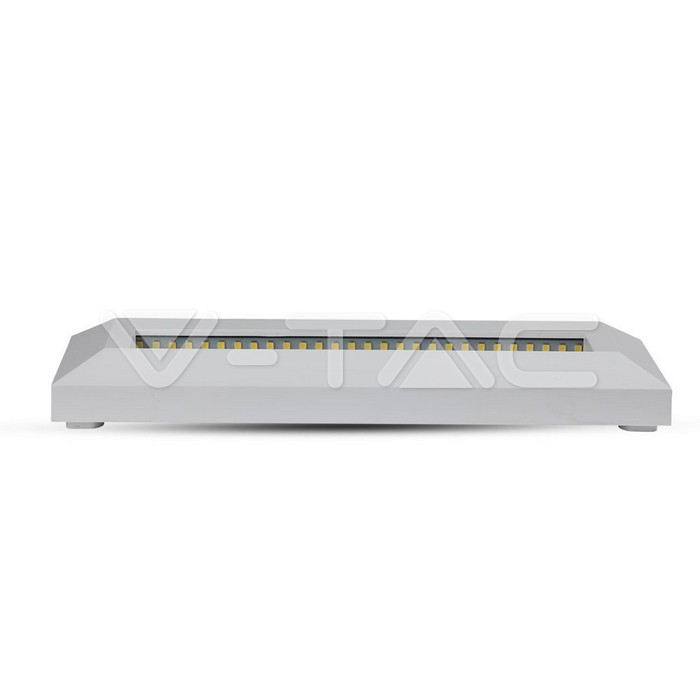

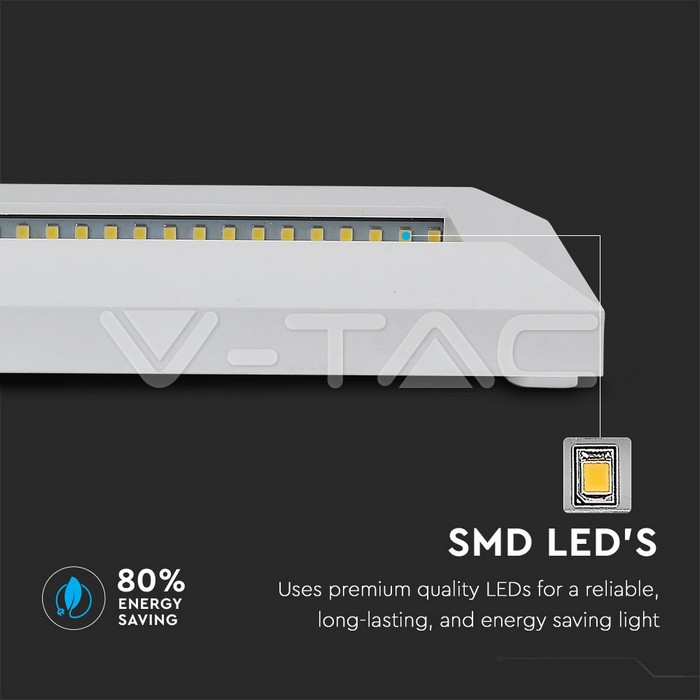

Type of chip SMD

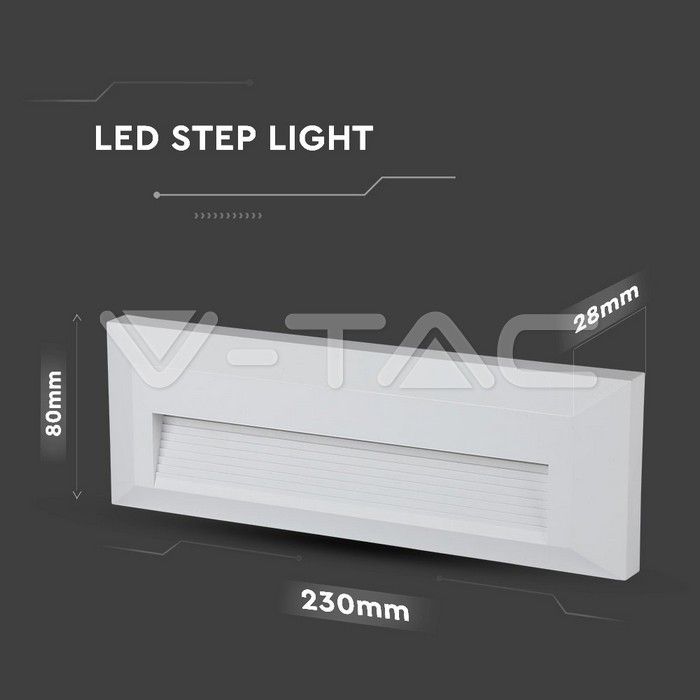

Dimensions (mm) 230 x 80 x 28 mm mm
Shape Round
Colour housing bílá
Weight netto 0,29 g
Material PC
Volume per unit 0,0008225 m3
Počet ks v balení 50
Tvar V-TAC Round
Barva tělesa V-TAC White
Počet kusů v kartonu 1

Lighting characteristics

Luminous flux 110 lm
Colour temperature 3000K K
Radiation angle 55 °
Colour rendering index CRI >80 Ra
Maximal intensity (Cd) 154.94 Cd Max. Cd
Colour of light acc. EN 12464-1 Warm white
Effective luminous flux 110 lm
Beam angle Degrees (°) 55° °
Barva světla Warm White

Energetic characteristics

Lamp Power factor (PF) >0.5
Lamp efficacy 37 lm/W

Electrical characteristics

Nominal wattage 3 W
Frequency 50 - 60 Hz

Mounting methods/application

Mounting method Surface

EuP Parameters

Number of maximal switching cycles >15000
Rated service life 20000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 15W W

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS
