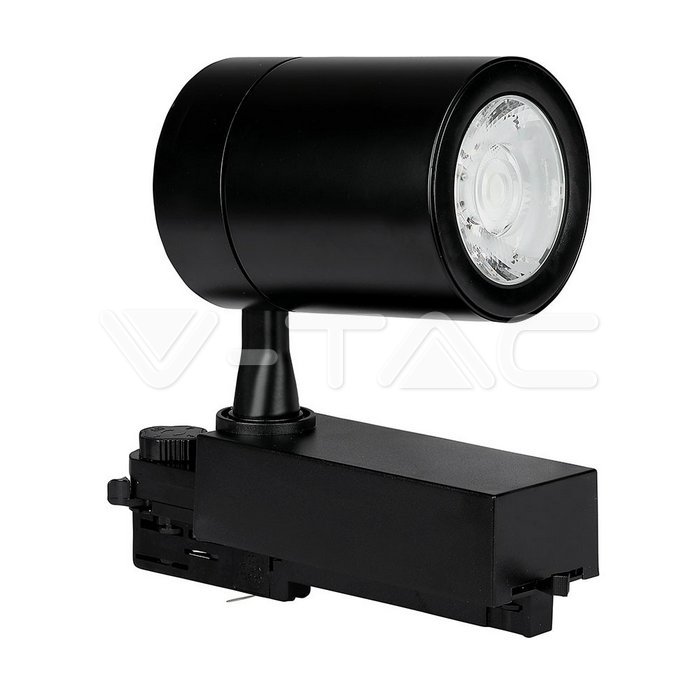

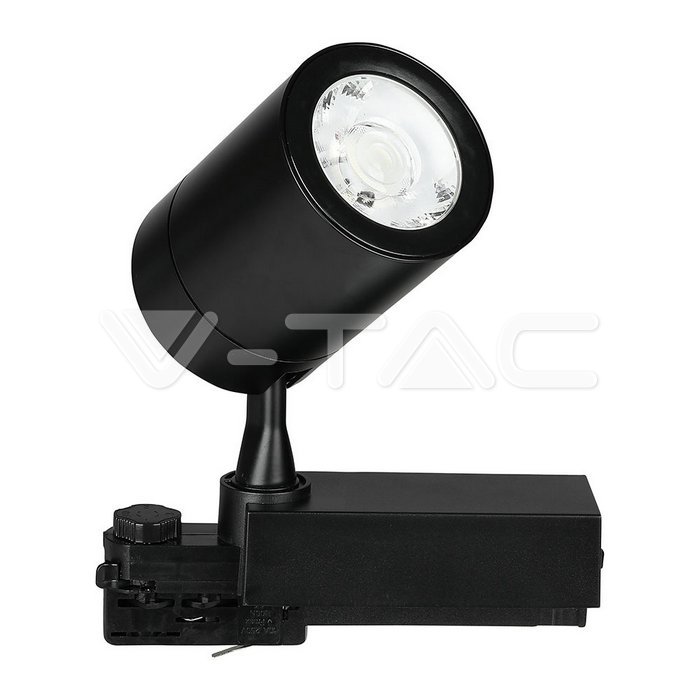

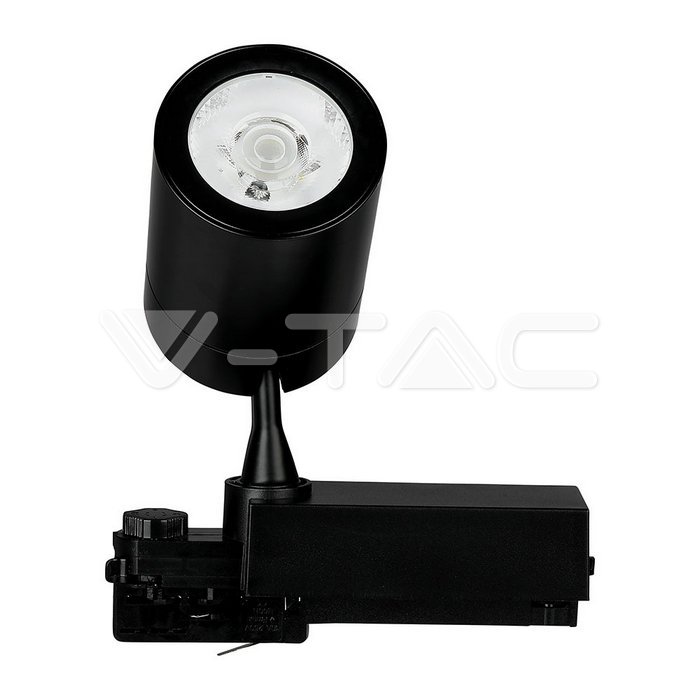

35W LED track Light Black Body Warm White, VT-4536

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU1285
Brand: V-TAC
Type / Description: LED pásové světlo bílé
Nominal voltage (V):220 - 264
Nominal wattage:35
Colour temperature:3000K
Colour rendering index CRI:> >80
Luminous flux:3450
Lamp efficacy:100 lm/W
Unit EAN13 code: 3800157618694

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet 35W LED track Light Black Body Warm White, VT-4536


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Material Aluminum
Nominal service life (h) >20 000 hrs h
Nominal voltage (V) AC: 220-264V V
Dimmable Ne
Nominal voltage (V) 220 - 264 V
Degree of protection (IP) IP20
Suitable for degree of protection (IP) IP20
Název položky LED track osvětlení COB
Skupina produktu V-TAC VT-4536
Cykly zapnití/vypnutí > 15000
EAN13 (jednotkový) 3,80016E+12

Working conditions

Reflector rotatable Ano
Power 35W W
Operating method Not suitable for use in extreme conditions. Normal working c
Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles 15000
Rated service life 20000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 120W W

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS

Electrical characteristics

Nominal wattage 35 W
Frequency 50 - 60 Hz

Physical characteristics

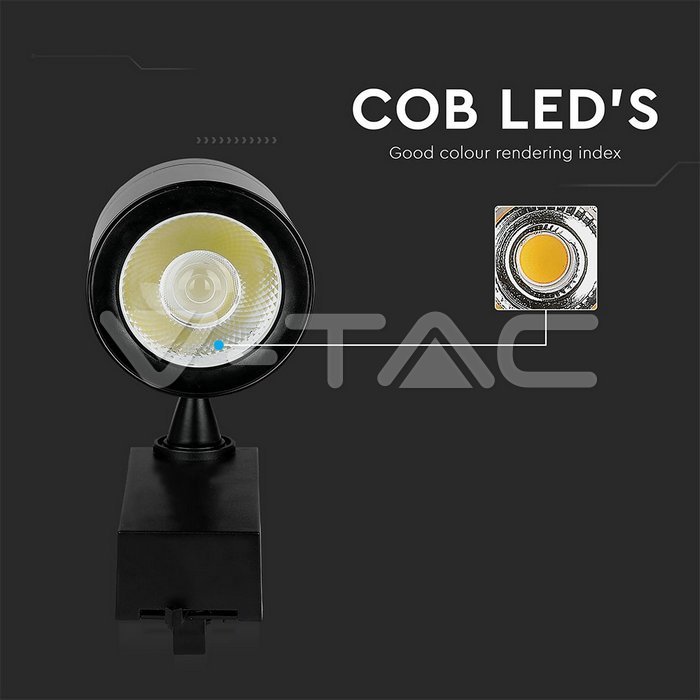

Type of chip COB

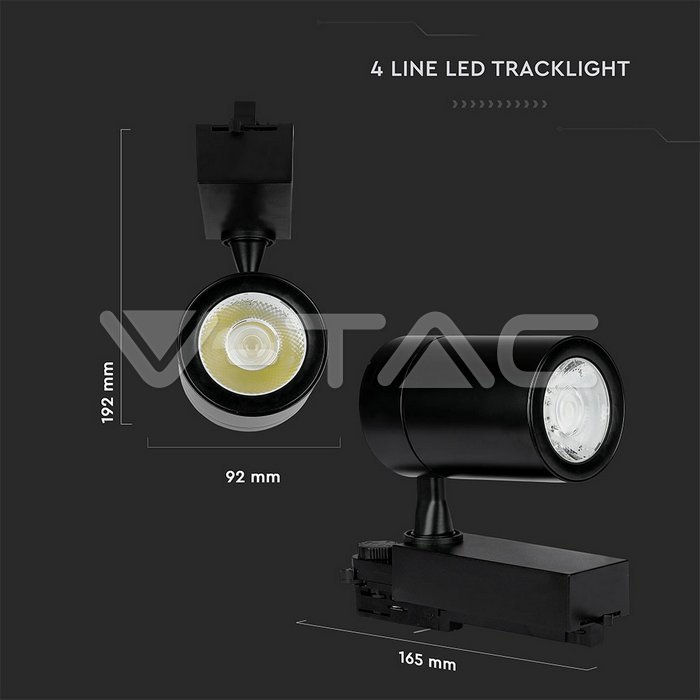

Dimensions (mm) 165 x 92 x 192 mm mm
Shape Round
Colour housing černá
Weight netto 1,1 g
Material Aluminium
Volume per unit 0,00484 m3
Počet ks v balení 20
Tvar V-TAC Round
Barva tělesa V-TAC Black
Počet kusů v kartonu 1

Lighting characteristics

Luminous flux 3450 lm
Colour temperature 3000K K
Colour rendering index CRI >80 Ra
Maximal intensity (Cd) 25126.9 Cd Max. Cd
Colour of light acc. EN 12464-1 Warm white
Effective luminous flux 3 450 lm

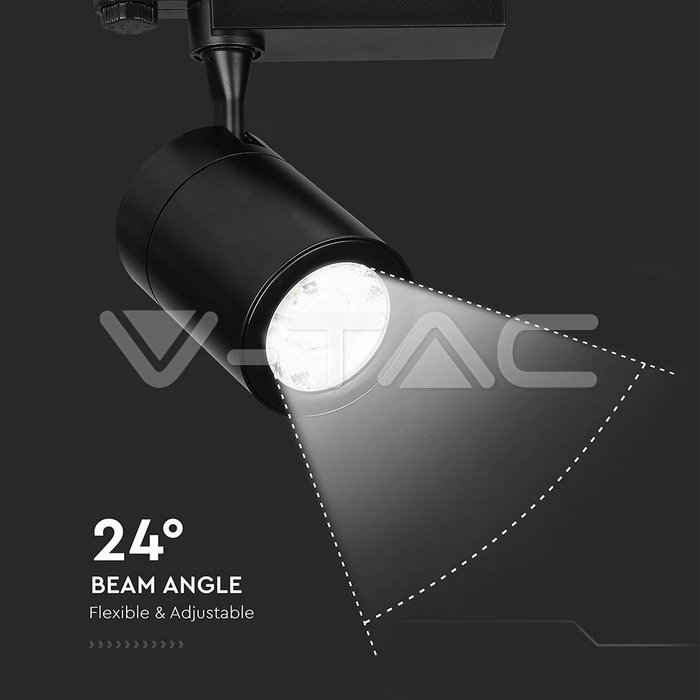

Beam angle Degrees (°) 12° / 24° °
Barva světla Warm White

Energetic characteristics

Lamp Power factor (PF) >0.9
Lamp efficacy 100 lm/W lm/W
