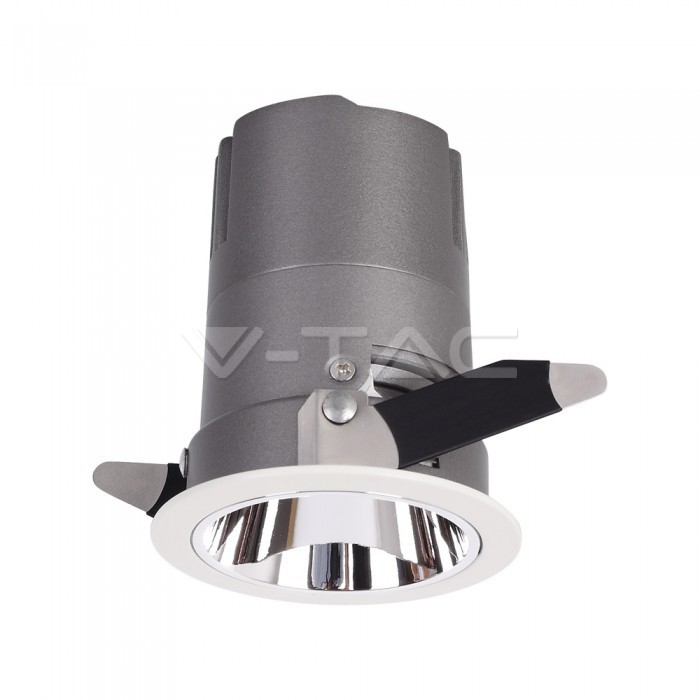

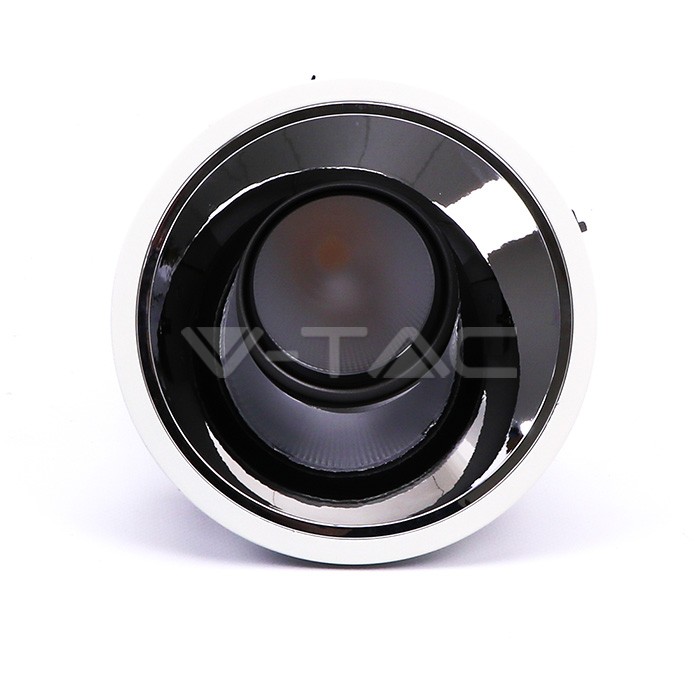

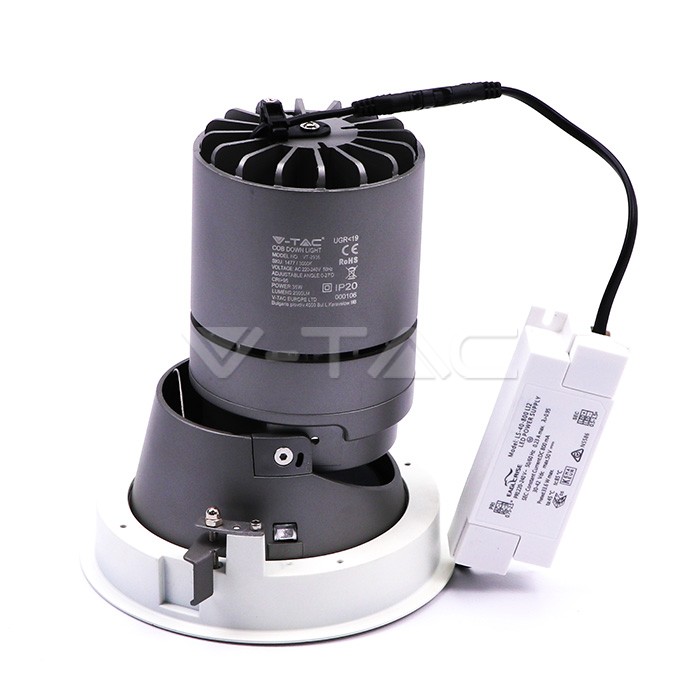

35W LED COB Hotel Downlight 24'D 4000KVT-2936

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU1478
Brand: V-TAC
Type / Description: COB downlight
Nominal voltage (V):AC: 220-240V
Colour temperature:4000K
Colour rendering index CRI:> >95
Unit EAN13 code: 3800157644112

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet 35W LED COB Hotel Downlight 24'D 4000KVT-2936


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Nominal service life (h) 30 000 hrs h
Nominal voltage (V) AC: 220-240V V
Suitable for degree of protection (IP) IP20
Skupina produktu V-TAC VT-2936
Třída energetické účinnosti podle 2019/2015 G
Cykly zapnití/vypnutí > >20000
EAN13 (jednotkový) 3,80016E+12

Working conditions

Power 35W W
Operating method Not suitable for use in extreme conditions. Normal working c
Otočná patice Yes

Physical characteristics

Type of chip COB CREE
Dimensions (mm) Ø160 x 176mm mm
Shape Round
Colour housing šeda
Weight netto 1,43 g
Material Aluminium
Volume per unit 0,006048 m3
Počet ks v balení 8
Počet kusů v kartonu 1

Lighting characteristics

Colour temperature 4000K K
Colour rendering index CRI >95 Ra
Maximal intensity (Cd) 384602 Cd Min. / 13248.4 Cd Max. Cd
Colour of light acc. EN 12464-1 Natural white
Effective luminous flux 2300 lm
Beam angle Degrees (°) 0-27° Adjustable °

Energetic characteristics

Lamp Power factor (PF) >0.6

Electrical characteristics

Frequency 50Hz Hz

Mounting methods/application

Dimensions of installation hole Ø150mm mm

Additional information

Dodatečné informace UGR <19

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS
