30W LED PIR Sensor Floodlight SAMSUNG CHIP Black Body 3000K

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU20262
Brand: V-TAC
Type / Description: LED reflektor se senzorem
Nominal voltage (V):AC:220-240V
Colour temperature:3000K
Colour rendering index CRI:> >80
Unit EAN13 code: 3800157661201
Guarantee: 60 months

Download

Technical sheet

Technical drawing not available


Download

Technical sheet

Technical sheet 30W LED PIR Sensor Floodlight SAMSUNG CHIP Black Body 3000K


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Nominal service life (h) 25 000 hrs h
Nominal voltage (V) AC:220-240V V
Suitable for degree of protection (IP) IP65
Typ senzoru PIR
Skupina produktu V-TAC VT-138S
Třída energetické účinnosti podle 2019/2015 F
Cykly zapnití/vypnutí > >15000
EAN13 (jednotkový) 3800157661201

Working conditions

Diameter detection range on floor 3-10m (Radius) m
Power 30W W
Operating method Not suitable for use in extreme conditions. Normal working c
Maximální detekční dosah V-TAC 140°±20°

Lighting characteristics

Colour temperature 3000K K
Colour rendering index CRI >80 Ra
Colour of light acc. EN 12464-1 Warm White

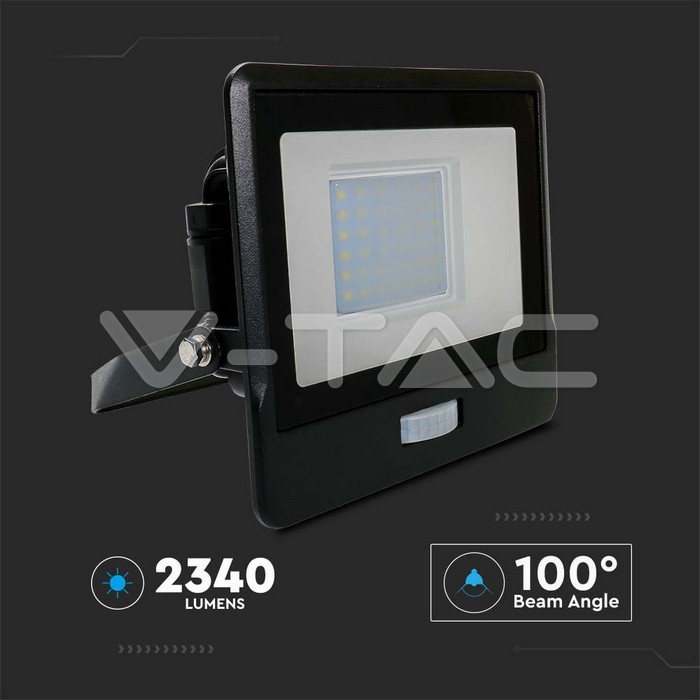

Effective luminous flux 2340 lm lm
Beam angle Degrees (°) 100° °

Energetic characteristics

Lamp Power factor (PF) >0.9

Electrical characteristics

Frequency 50Hz Hz

Physical characteristics

Type of chip SMD Samsung Chip

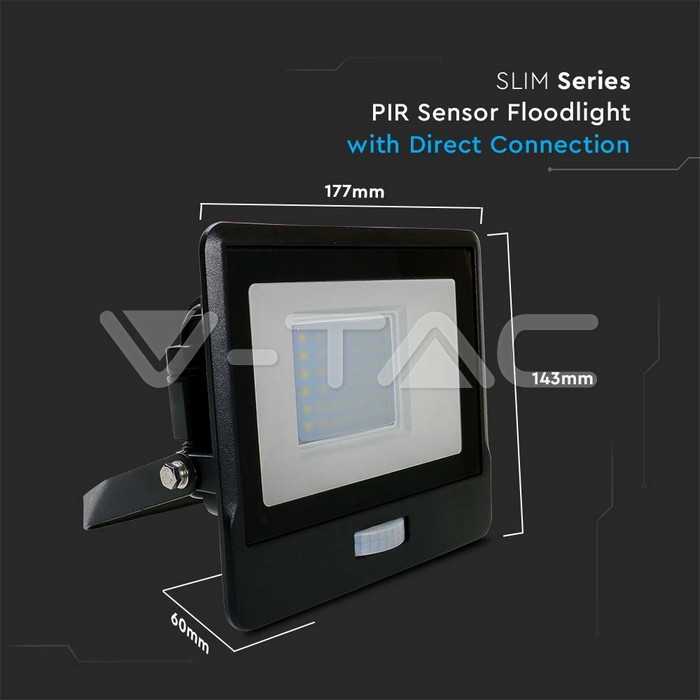

Dimensions (mm) 177 x 60 x 143 mm mm
Colour housing Black
Weight netto 560 g
Material Diecast Aluminium
Volume per unit 0,00225 m3
Počet ks v balení 10

Safety information

Safety instructions https://www.nbb.cz/gprs
