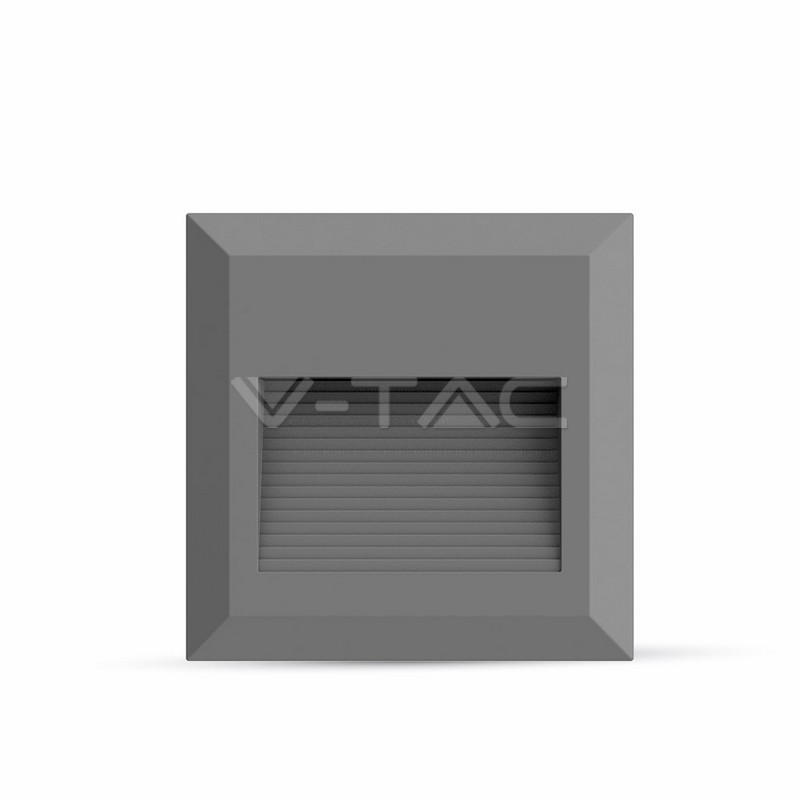

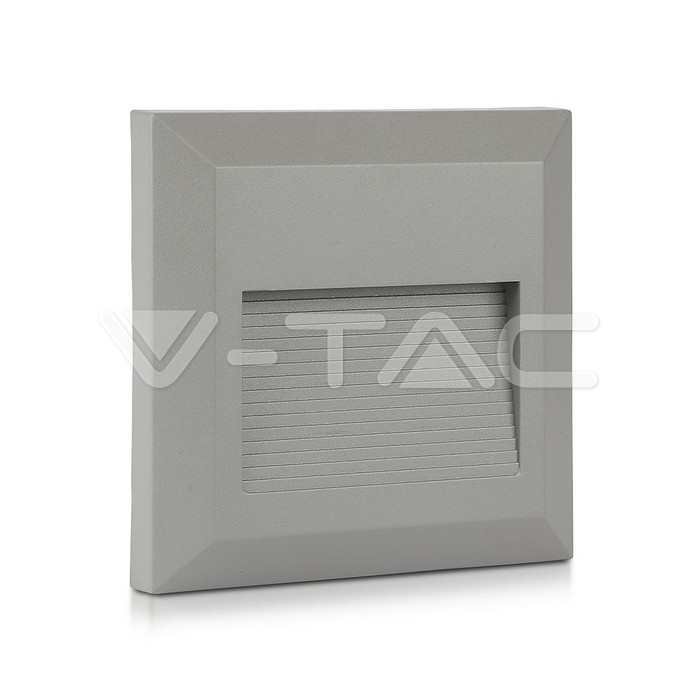

2W LED Step Light Grey Body Square Warm White, VT-1152

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU1325
Brand: V-TAC
Type / Description: Vestavné čtvercové LED svítidlo
Nominal voltage (V):100 - 240
Nominal wattage:2
Colour temperature:3000K
Colour rendering index CRI:> >80
Luminous flux:60
Lamp efficacy:30
Unit EAN13 code: 3800157620536

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet 2W LED Step Light Grey Body Square Warm White, VT-1152


Wiring Diagram not available


General information

Finish Surfaced
Brand/Manufacturer V-TAC
Material PC
Nominal service life (h) 20 000 hrs h
Nominal voltage (V) AC: 100-240V V
Dimmable Ne
Energy efficiency class (canceled regulation!) A
Nominal voltage (V) 100 - 240 V

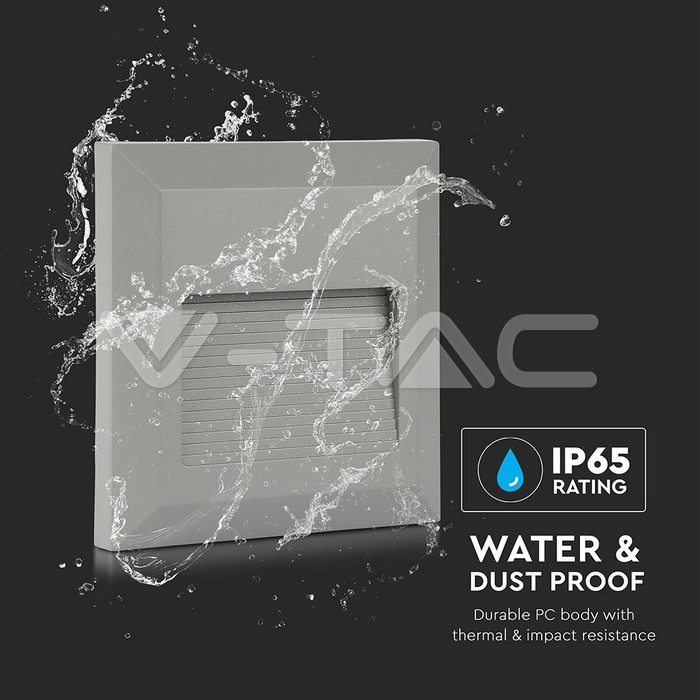

Degree of protection (IP) IP65
Suitable for degree of protection (IP) IP65
Název položky LED Downlight fasádové
Skupina produktu V-TAC VT-1152
Třída energetické účinnosti podle 2019/2015 G
Cykly zapnití/vypnutí > > 15000
EAN13 (jednotkový) 3,80016E+12

Working conditions

Reflector rotatable Ne
Power 2W W
Operating method Not suitable for use in extreme conditions. Normal working c
Temperature -0,444444444 °C

Physical characteristics

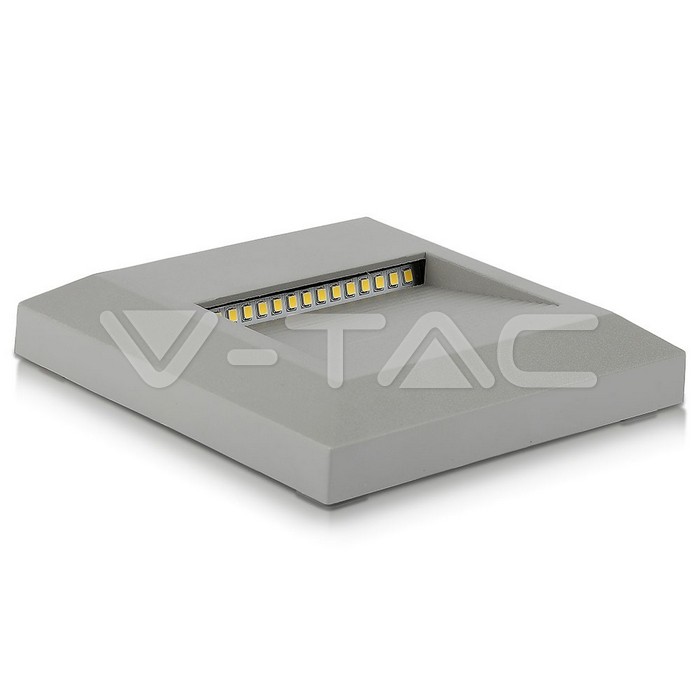

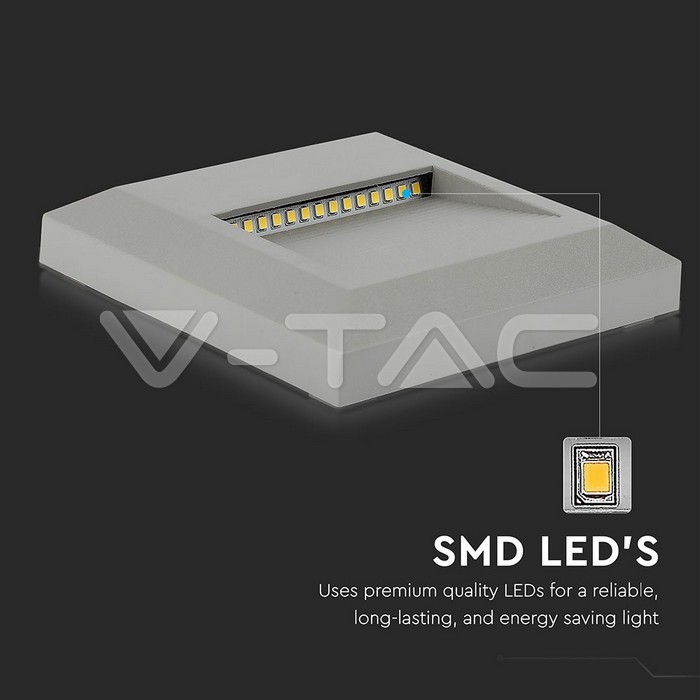

Type of chip SMD

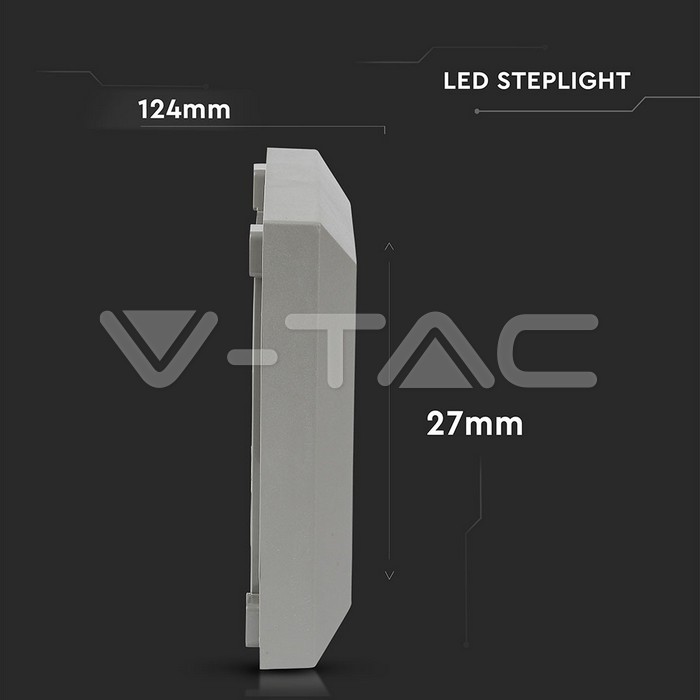

Dimensions (mm) 124 x 124 x 27 mm mm
Shape Square
Colour housing šeda
Weight netto 0,243 g
Material PC
Volume per unit 0,0005915 m3
Počet ks v balení 50
Tvar V-TAC Square
Barva tělesa V-TAC Grey
Počet kusů v kartonu 1

Lighting characteristics

Luminous flux 60 lm
Colour temperature 3000K K
Radiation angle 55 °
Colour rendering index CRI >80 Ra
Maximal intensity (Cd) 84.5 Cd Max. Cd
Colour of light acc. EN 12464-1 Warm white
Effective luminous flux 60 lm
Beam angle Degrees (°) 55° °
Barva světla Warm White

Energetic characteristics

Lamp Power factor (PF) >0.5
Lamp efficacy 30 lm/W

Electrical characteristics

Nominal wattage 2 W
Frequency 50 - 60 Hz

Mounting methods/application

Mounting method Surface

EuP Parameters

Number of maximal switching cycles >15000
Rated service life 20000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 10W W

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS
