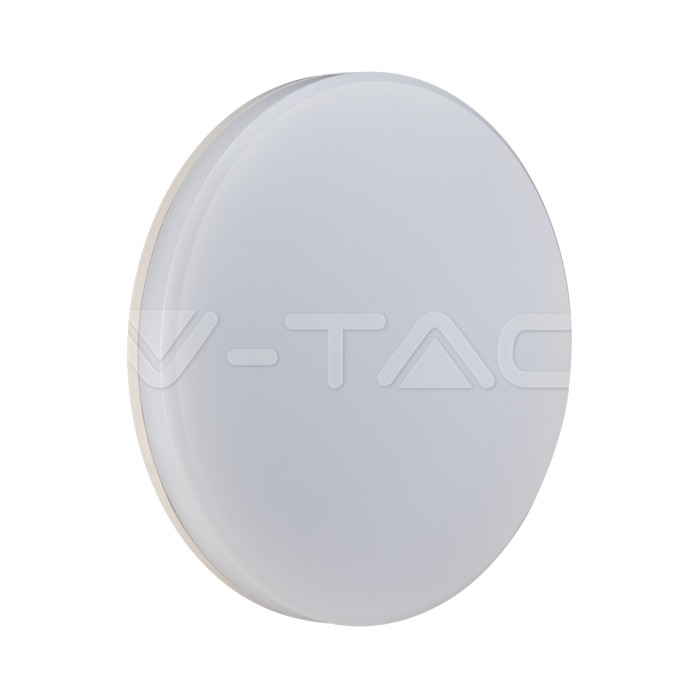

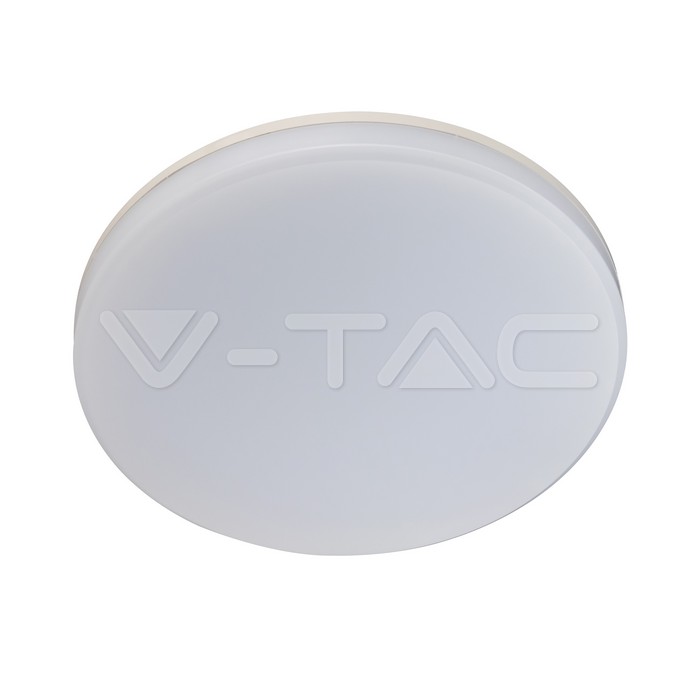

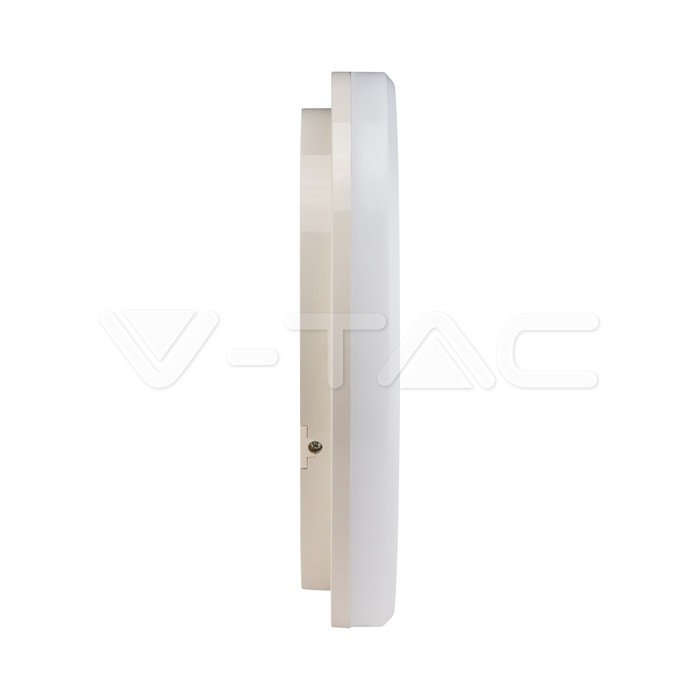

25W LED Celing Light SAMSUNG CHIP Frameless Round 4000K IP44 100LM/W, VT-8066RD

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU13939
Brand: V-TAC
Type / Description: LED ceiling light
Jmenovité napětí (V):220 - 240
Nominal wattage:25
Light Colour:neutrální bílá
Colour temperature:4000
Colour rendering index CRI:> 80
Luminous flux:2500

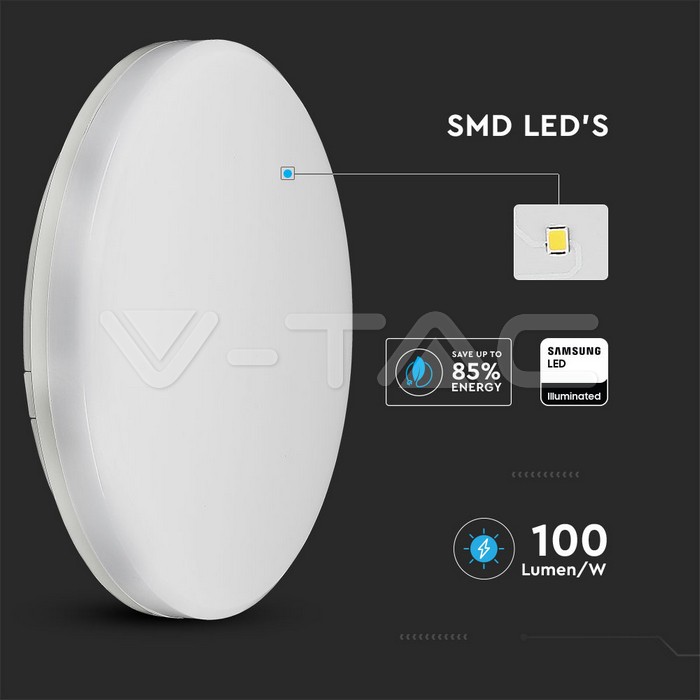

Lamp efficacy:100
Unit EAN13 code: 3800157657587

Download


Technical drawing not available



Download

SKU13939_11082021

17.62 kB - SKU13939_11082021.ldt

Wiring Diagram not available


General information

Lamp type LED nevýměnné
Nominal service life (h) 20000 h
Dimmable Ne
Energy efficiency class (canceled regulation!) A++
Lamp type LED
Type of luminaire Plastové svítidlo
Nominal voltage (V) 220 - 240 V
Degree of protection (IP) IP44
Suitable for number of lamps 1
Suitable for wall mounting Ano
Dimmable by conventional dimmers Ne
Název položky 25W LED Celing Light SAMSUNG CHIP Frameless Round 4000K IP44

Working conditions

Integrated driver Ano
Operating frequency 50 - 60 Hz
Installation height (m) 2 - 3 m
Installation on flammable surfaces Ano
Suitable for through-wiring Ne
Type of control gear Elektronický nestmívatelný
Suitable for frequent switching Ano
Ambient temperature -20/+45 °C
Applicable with movement sensor Ano
Suitable for light line configuration Ne
Suitable for emergency lighting Ne
Fire resistance "D" Ano
Fit for monitor workplace Ano

Physical characteristics

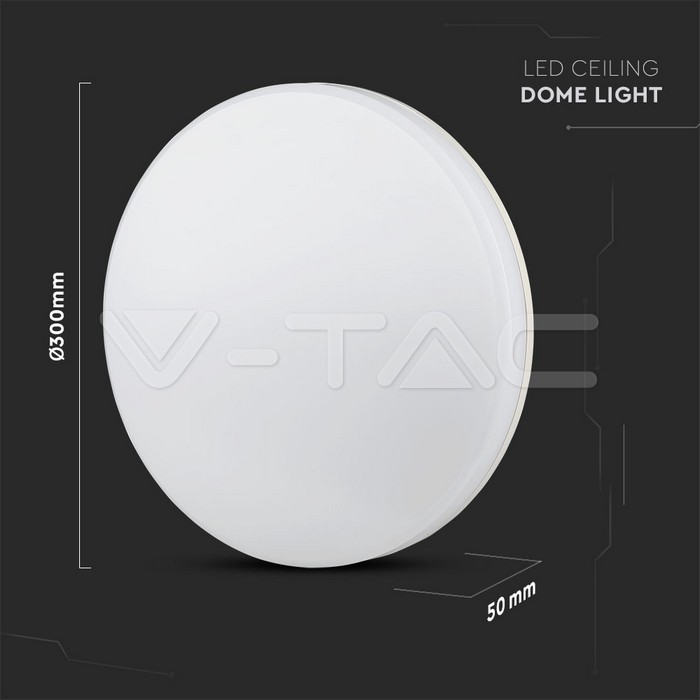

Dimensions (mm) Ø300x50 mm
Outer diameter 300 mm
Colour housing Bílá
Weight netto 1,01 g
Height/depth (mm) 50 mm
Material housing Plast
Colour cover Bílá
Material cover Opálový plast
Impact strength IK08

Additional information

With lamp Ano

Safety information

Insulation class Třída II
Protection class Dvojitou izolací

Electrical characteristics

Nominal wattage 25 W
Type of Voltage AC
Lamp power 25 W
Circuit Paralelně-kompenzační
Voltage type AC

Mounting methods/application

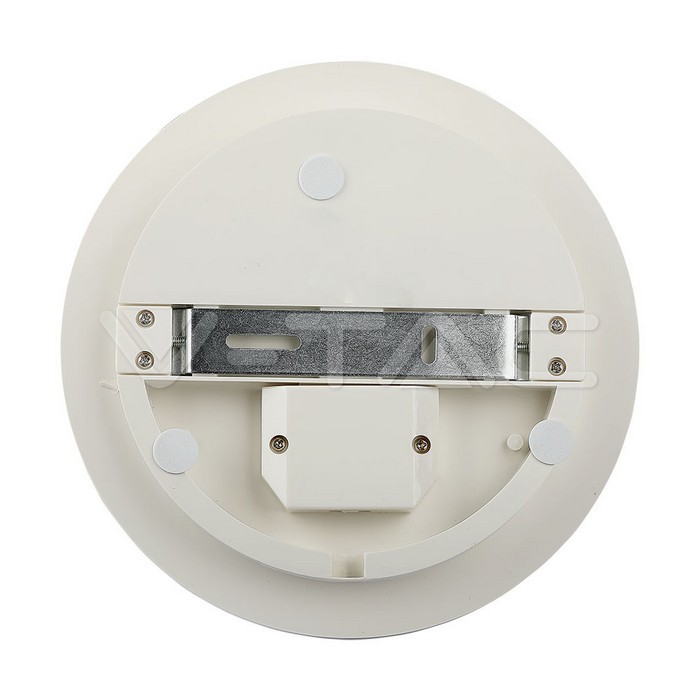

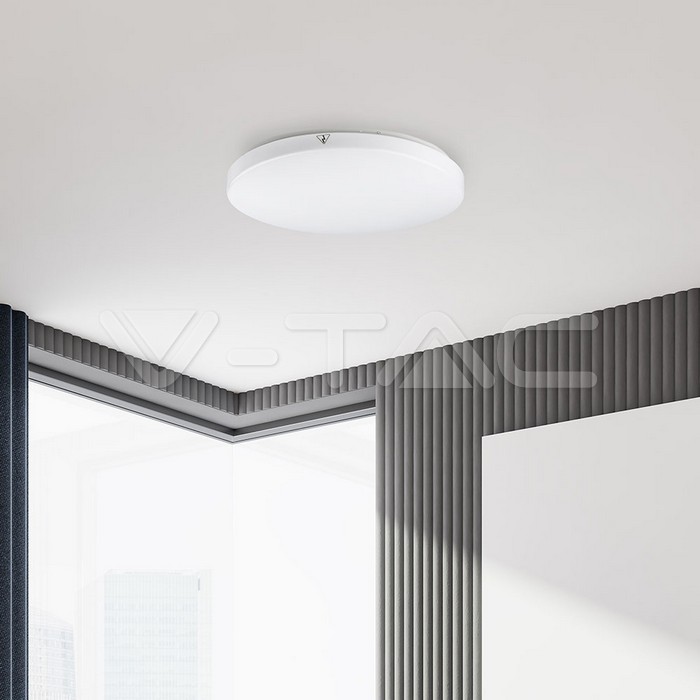

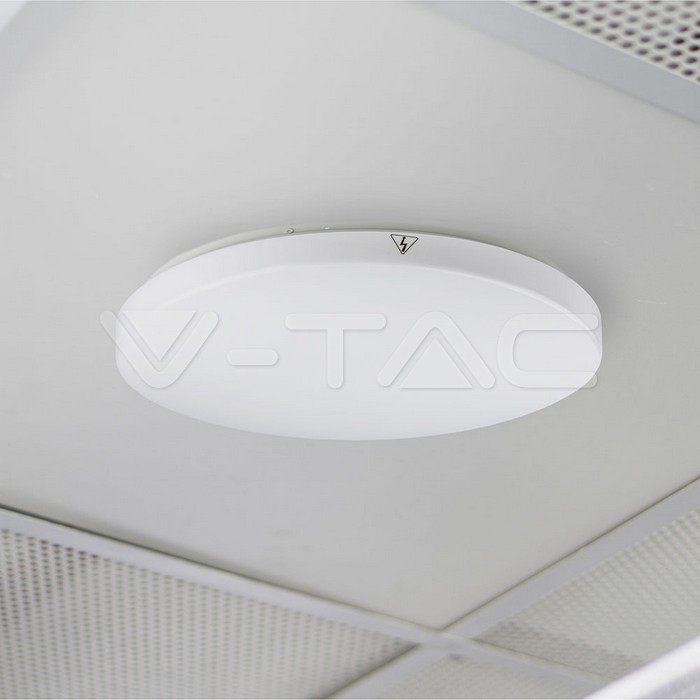

Mounting method Přisazená

EuP Parameters

Luminescence Life maintenance factor 70,0 %
Factor of functional reliability (LSF) after nom. life 50,0 %
Colour difference 90,0 %
Rated service life 25000 h
Turn-on time <0,3 s

Lighting characteristics

Light Colour neutrální bílá
Wavelength range 400 - 750 nm
Dominant wavelength 451 nm
Luminous flux 2500 lm
Colour temperature 4000 K

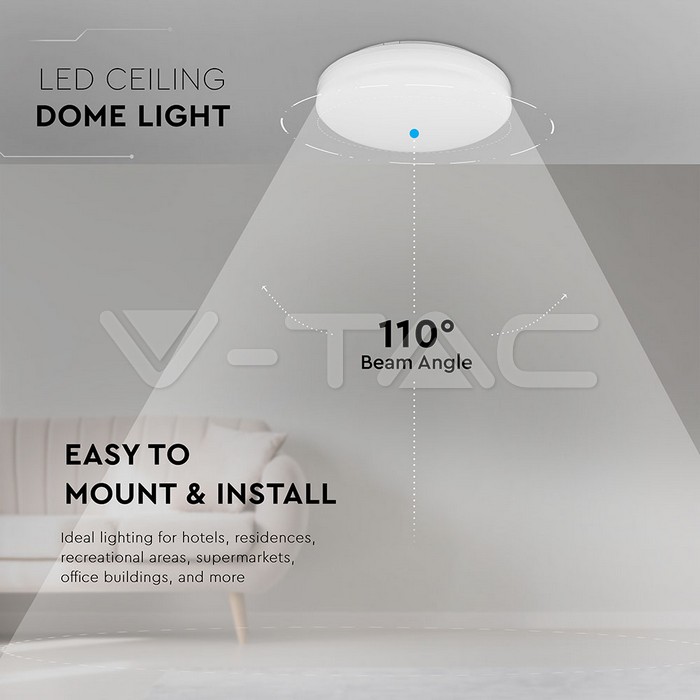

Radiation angle 110 °
Colour rendering index CRI 80 Ra
Colour of light 840
Anti-glare limiting UGR lengthwise 19
Anti-glare limiting UGR crosswise 19
Direct-/indirect proportion separately controllable Ano
Colour controllable (RGB) Ne
Colour temperature controllable Ne
Light outlet Přímé
Light sharing Symetrické
Effective luminous flux 2500 lm
Chromaticity coordinates x 0,322
Chromaticity coordinates y 0,347

Energetic characteristics

Lamp Power factor (PF) 0,9
Lamp efficacy 100 lm/W
