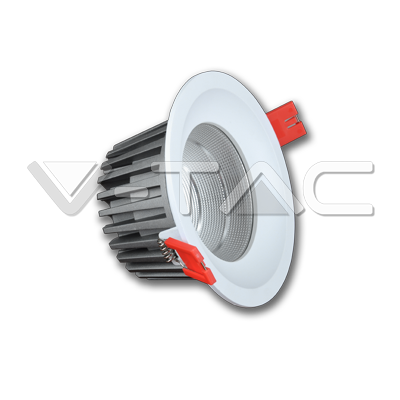

220-240V 24W LED svítidlo Downlight bílé 4500K , VT-1724 RD

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU1055
Brand: V-TAC
Type / Description: LED Downlight COB
Nominal voltage (V):220 - 240
Nominal wattage:24
Colour temperature:4500K
Colour rendering index CRI:> >80
Luminous flux:1920
Lamp efficacy:80

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet 220-240V 24W LED svítidlo Downlight bílé 4500K , VT-1724 RD


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Material PKW
Nominal service life (h) 20 000 hrs h
Nominal voltage (V) AC:220-240V V
Dimmable Ne
Energy efficiency class (canceled regulation!) A+
Nominal voltage (V) 220 - 240 V
Suitable for degree of protection (IP) IP20
Název položky LED Downlight COB
Skupina produktu V-TAC VT-1724 RD
Třída energetické účinnosti podle 2019/2015 A+
Cykly zapnití/vypnutí > 15000
EAN13 (jednotkový) 380023062249

Working conditions

Reflector rotatable Ne
Power 24W W
Operating method Not suitable for use in extreme conditions. Normal working c
Temperature -0,444444444 °C
Otočná patice No

EuP Parameters

Number of maximal switching cycles 15000
Rated service life 20000 h
Turn-on time 0.001 sec (instant on) s

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE

Electrical characteristics

Nominal wattage 24 W

Physical characteristics

Type of chip COB
Colour housing White
Weight netto 0 g
Material PKW
Barva tělesa V-TAC White

Lighting characteristics

Luminous flux 1920 lm
Colour temperature 4500K K
Radiation angle 12 °
Colour rendering index CRI >80 Ra
Maximal intensity (Cd) 611.15 Cd Max. Cd
Colour of light acc. EN 12464-1 Natural White
Effective luminous flux 1920 lm lm
Beam angle Degrees (°) 120° °
Barva světla Natural White

Energetic characteristics

Lamp Power factor (PF) > 0.5
Lamp efficacy 80 lm/W
