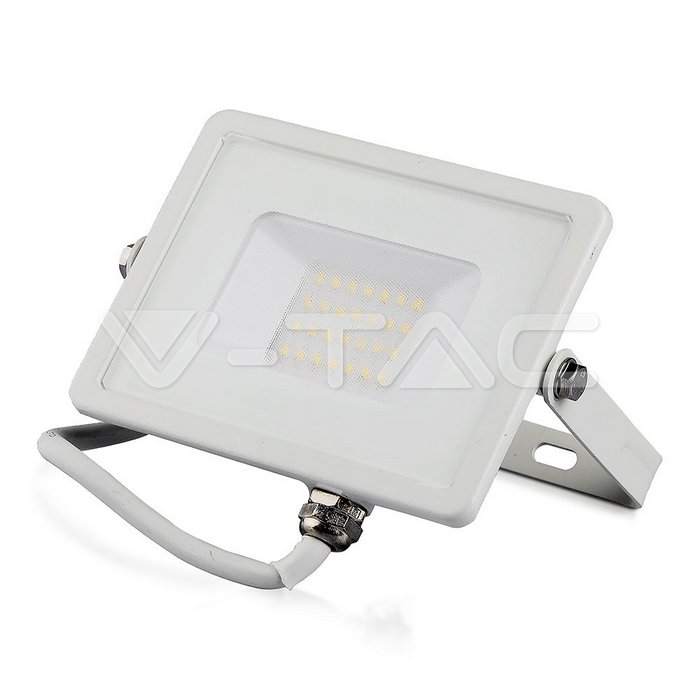

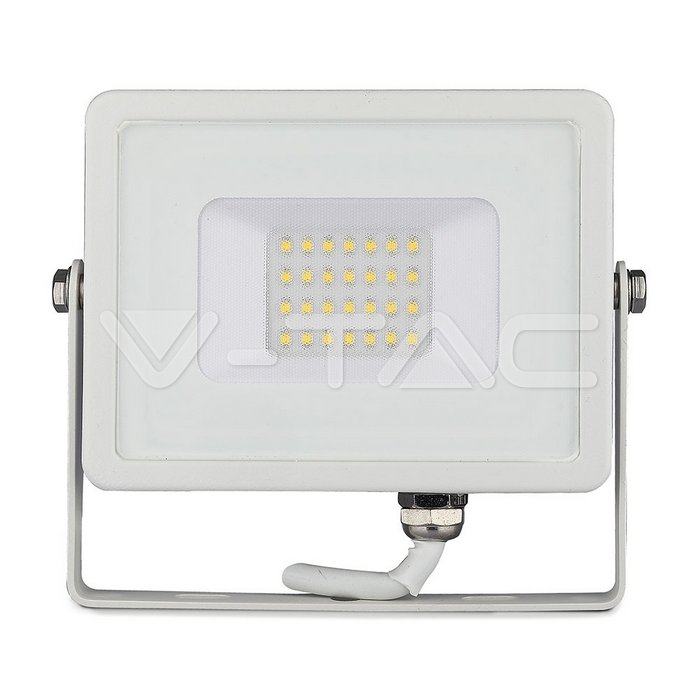

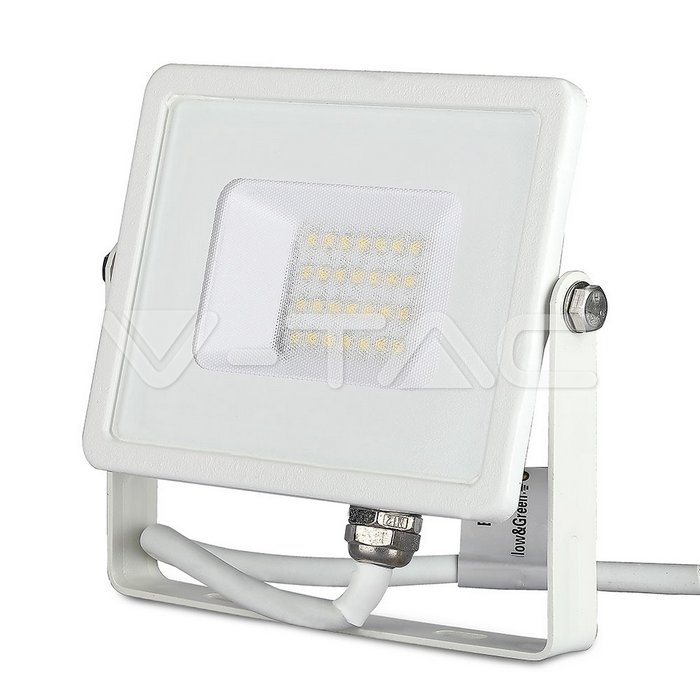

20W LED Floodlight SMD SAMSUNG CHIP White Body 6400K, VT-20

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU444
Brand: V-TAC
Type / Description: LED reflektor SAMSUNG čip - záruka 5 let
Nominal voltage (V):220 - 240
Nominal wattage:20
Colour temperature:6400K
Colour rendering index CRI:> >80
Luminous flux:1600
Lamp efficacy:80
Unit EAN13 code: 3800157631006
Guarantee: 60 months

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet 20W LED Floodlight SMD SAMSUNG CHIP White Body 6400K, VT-20


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC

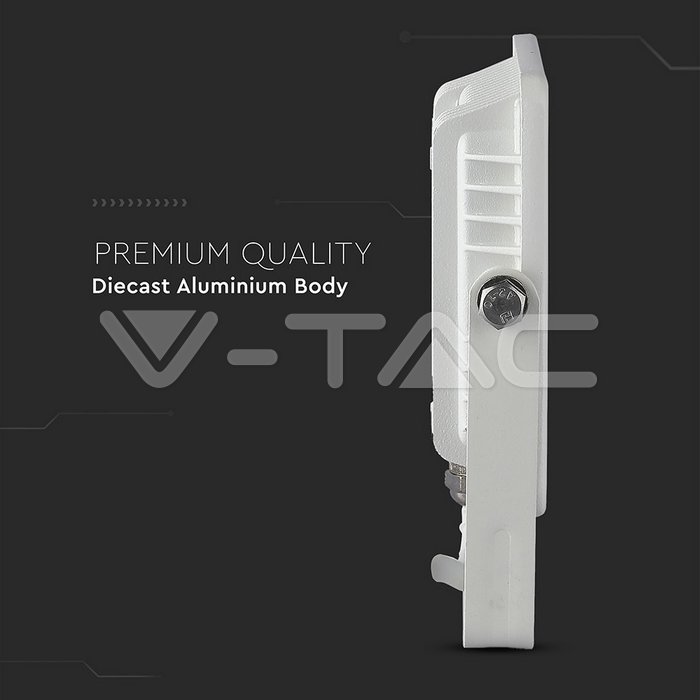

Material Die casting Aluminium
Nominal service life (h) 30 000 hrs h
Nominal voltage (V) AC: 220-240V V
Dimmable Ne
Energy efficiency class (canceled regulation!) A++
Nominal voltage (V) 220 - 240 V

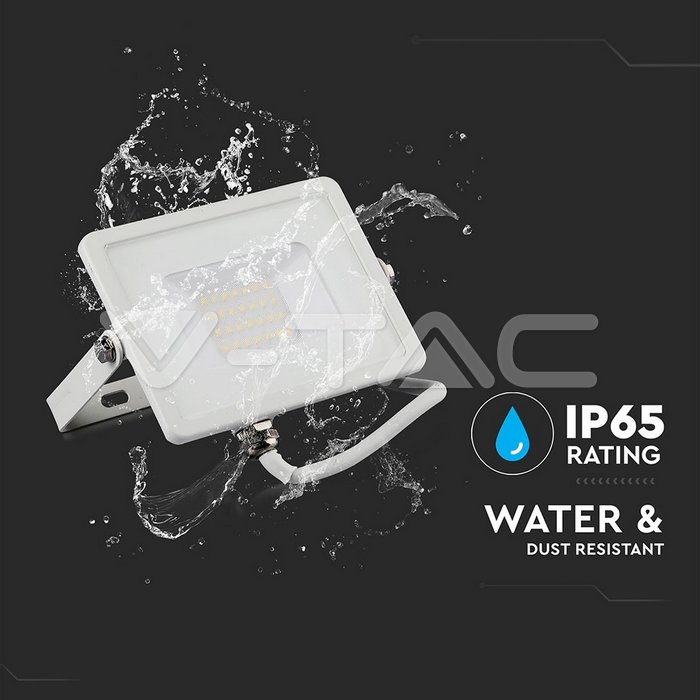

Degree of protection (IP) IP65
Suitable for degree of protection (IP) IP65
Název položky LED reflektory SAMSUNG čip - záruka 5 let
Skupina produktu V-TAC VT-20
Třída energetické účinnosti podle 2019/2015 F
Cykly zapnití/vypnutí > >15000
Kompatibilita Sensor Compatibility
EAN13 (jednotkový) 3,80016E+12

Working conditions

Power 20W W
Operating method Not suitable for use in extreme conditions. Normal working c
Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles >15000
Rated service life 30000 h
Turn-on time 0.001 sec (instant on) s

Lighting characteristics

Luminous flux 1600 lm
Colour temperature 6400K K
Colour rendering index CRI >80 Ra
Maximal intensity (Cd) 509.29 Cd Max. Cd
Colour of light acc. EN 12464-1 white
Effective luminous flux 1600 lm
Beam angle Degrees (°) 100° °
Barva světla White

Energetic characteristics

Lamp Power factor (PF) >0.9
Lamp efficacy 80 lm/W

Electrical characteristics

Nominal wattage 20 W
Frequency 50Hz Hz

Physical characteristics

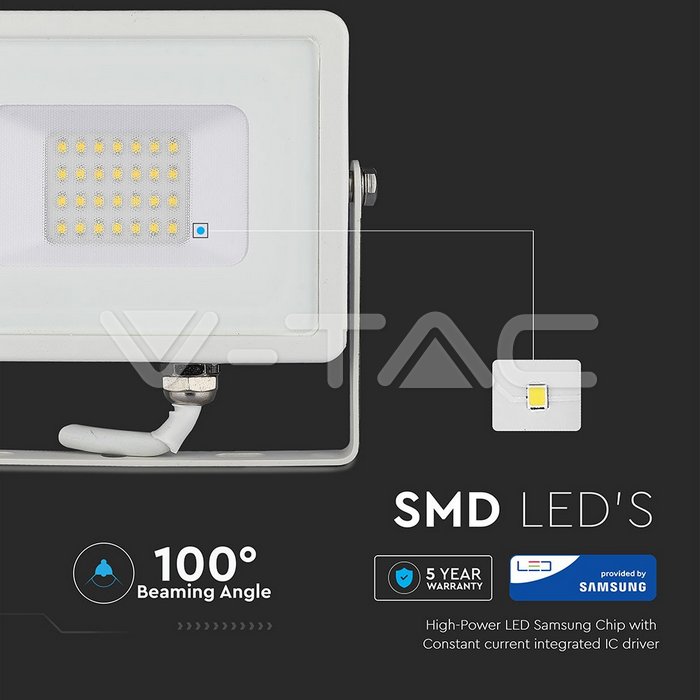

Type of chip SAMSUNG Chip

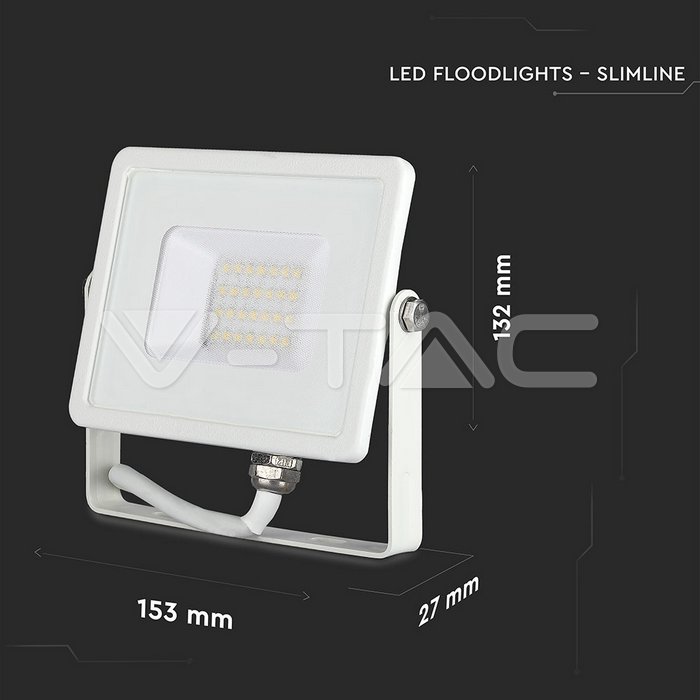

Dimensions (mm) 153 x 132 x 27 mm mm
Colour housing bílá
Weight netto 0,45 g
Material Die cast aluminum
Impact strength IK05
Volume per unit 0,000896 m3
Počet ks v balení 20
Barva tělesa V-TAC White
Počet kusů v kartonu 1

Additional information

Note Sensor Compatibility
Dodatečné informace šeda glass

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS
