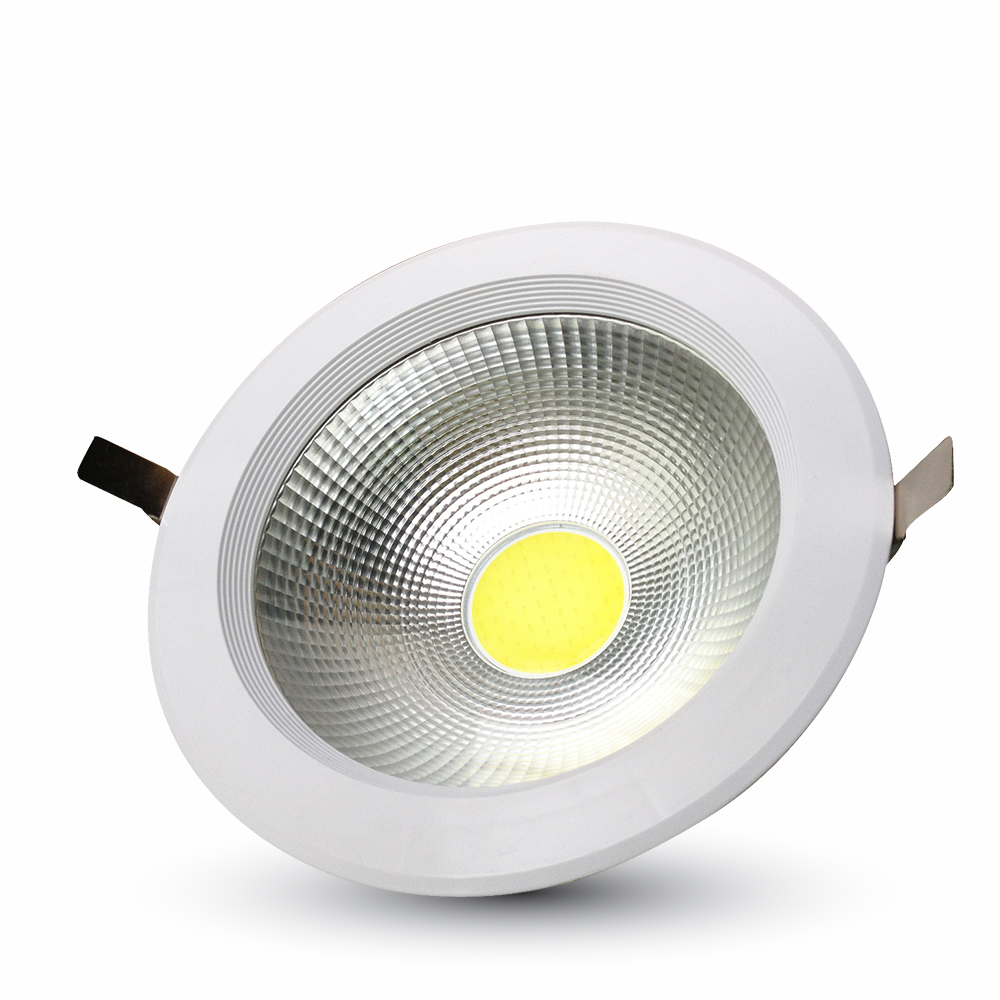

20W LED COB Downlight Round A++ 120Lm/W White, VT-26101

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU1275
Brand: V-TAC
Type / Description: Kulaté zapuštěné LED bodové světlo
Jmenovité napětí (V):100 - 277
Nominal wattage:20
Colour temperature:6400
Luminous flux:2400
Lamp efficacy:120
Unit EAN13 code: 3800157611978

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet 20W LED COB Downlight Round A++ 120Lm/W White, VT-26101


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Material PKW
Dimmable Ne
Energy efficiency class (canceled regulation!) A++
Nominal voltage (V) 100 - 277 V
Název položky LED Downlight COB Reflektor
Skupina produktu V-TAC VT-26101

Working conditions

Reflector rotatable Ne
Temperature -0,444444444 °C

Physical characteristics

Type of chip COB
Dimensions (mm) 180 x 83 mm
Počet ks v balení 1
Tvar V-TAC Round
Barva tělesa V-TAC White
Počet kusů v kartonu 18

Lighting characteristics

Luminous flux 2400 lm
Colour temperature 6400 K
Radiation angle 12 °
Barva světla White

Energetic characteristics

Lamp Power factor (PF) > 0.5
Lamp efficacy 120 lm/W

Electrical characteristics

Nominal wattage 20 W
Frequency 50 - 60 Hz

Mounting methods/application

Dimensions of installation hole 167 mm

EuP Parameters

Number of maximal switching cycles 15000
Rated service life 20000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 180 W

Safety information

Product certification CE, EMC, ROHS
