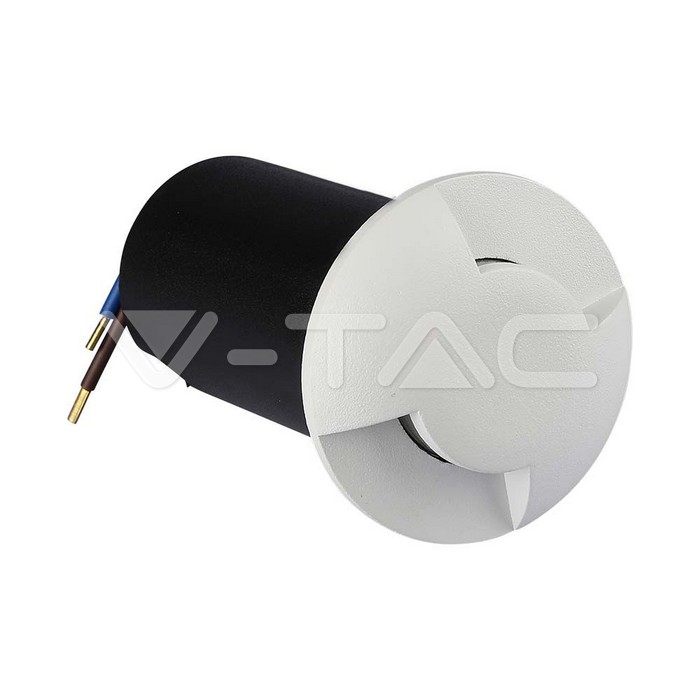

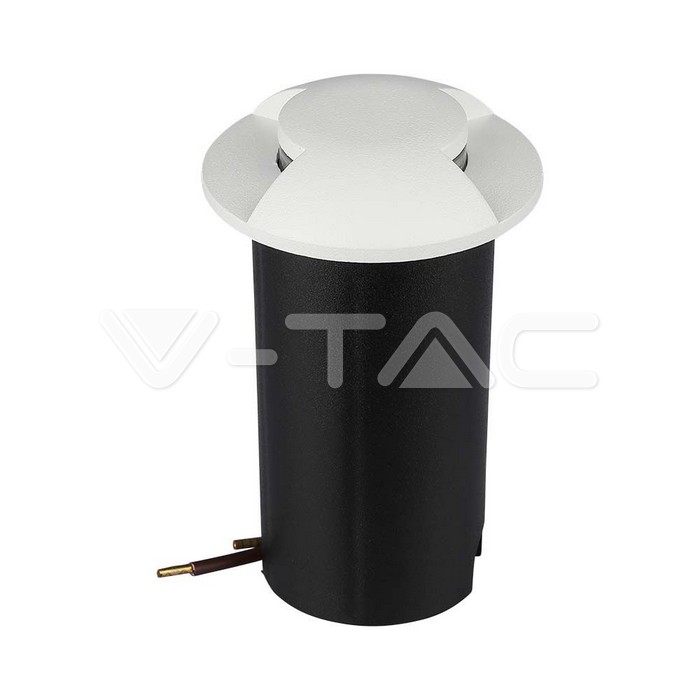

1W LED Step Light White 2Way 3000K ,VT-1161

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU211465
Brand: V-TAC
Type / Description: LED Downlight fasádové
Nominal voltage (V):DC:12V
Colour temperature:3000K
Colour rendering index CRI:> >80
Unit EAN13 code: 3800157643634

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet 1W LED Step Light White 2Way 3000K ,VT-1161


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Nominal service life (h) 20,000 hrs h
Nominal voltage (V) DC:12V V

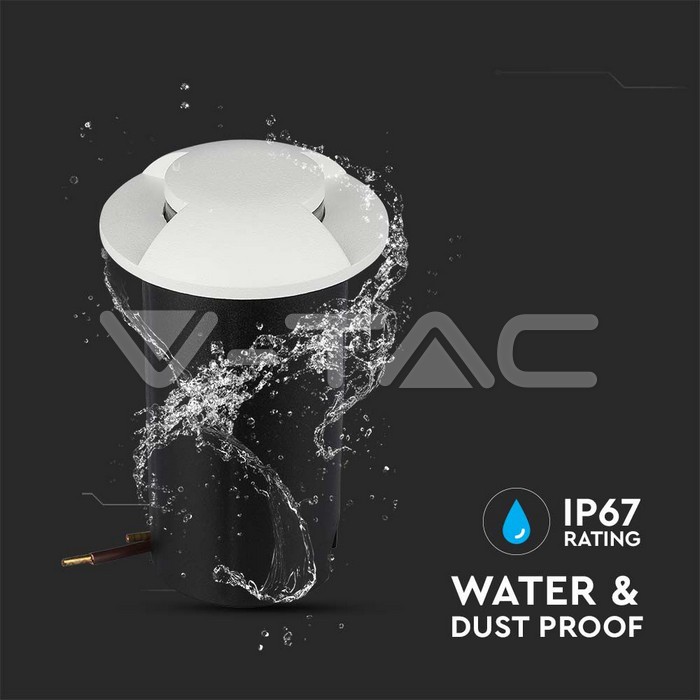

Suitable for degree of protection (IP) IP67
Skupina produktu V-TAC VT-1161
Cykly zapnití/vypnutí > >15000
EAN13 (jednotkový) 3800157688826

Mounting methods/application

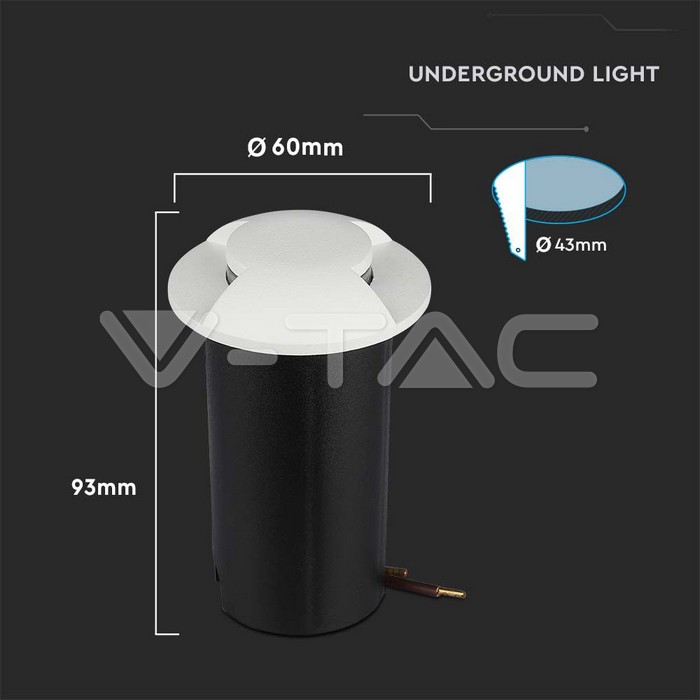

Dimensions of installation hole 43mm mm

Lighting characteristics

Colour temperature 3000K K
Colour rendering index CRI >80 Ra
Colour of light acc. EN 12464-1 Warm White
Effective luminous flux 50 lm lm

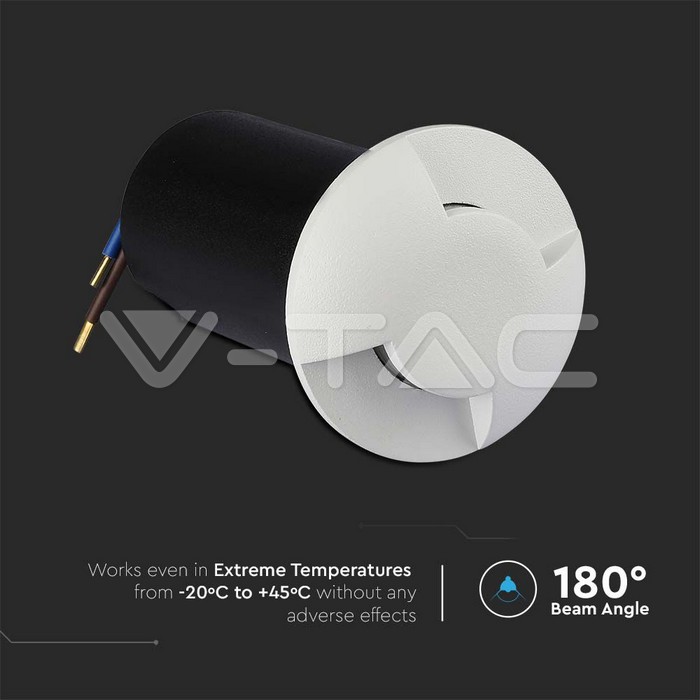

Beam angle Degrees (°) 180° °

Working conditions

Power 1W W
Operating method Not suitable for use in extreme conditions. Normal working c

Physical characteristics

Type of chip SMD
Dimensions (mm) 60x93 mm mm
Shape Round
Colour housing White
Weight netto 120 g
Material PC+AL
Volume per unit 0,00053 m3
Počet ks v balení 50
Počet kusů v kartonu 1

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS
