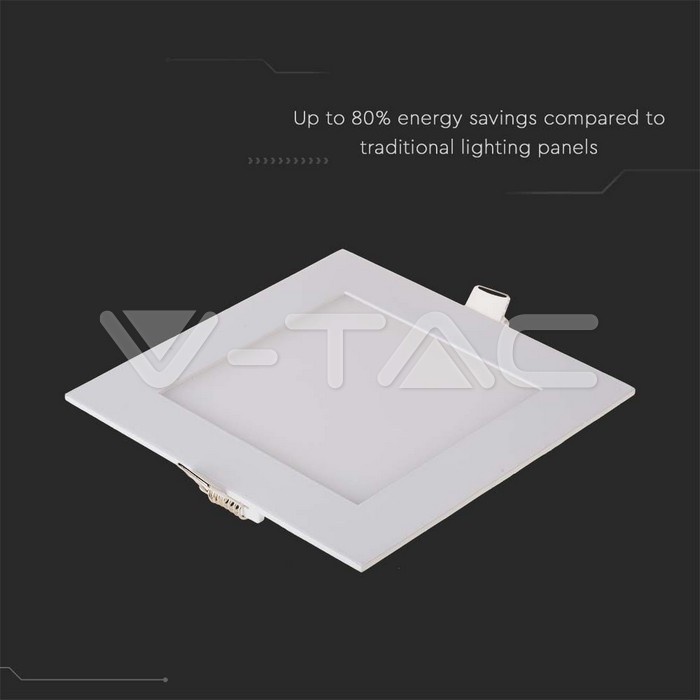

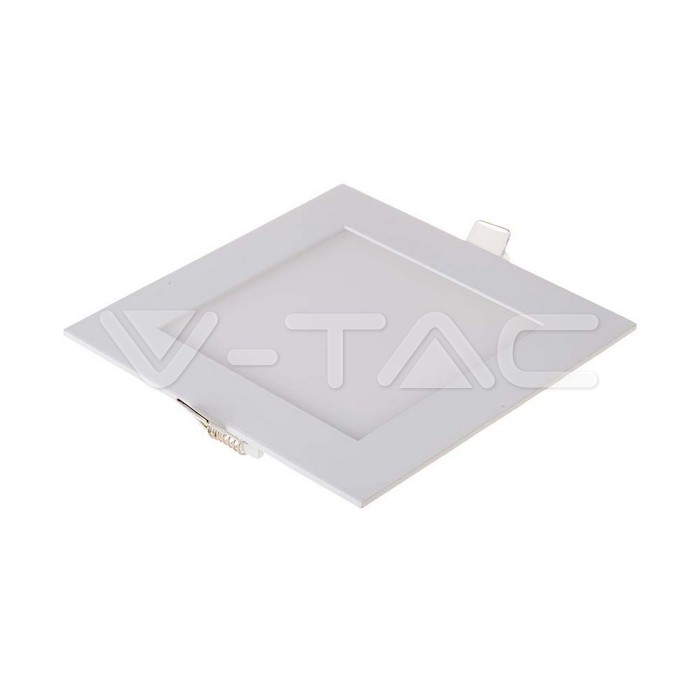

18W LED Premium Panel Downlight Square 6400K

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU214871
Brand: V-TAC
Type / Description: LED premium panel
Nominal voltage (V):AC:85-265V
Colour temperature:6400K
Colour rendering index CRI:> >80
Unit EAN13 code: 3800157686235
Guarantee: 24 months

Download


More photos available

Technical drawing not available



Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Nominal service life (h) 20,000 hrs h
Nominal voltage (V) AC:85-265V V
Suitable for degree of protection (IP) IP20
Skupina produktu V-TAC VT-1807
Třída energetické účinnosti podle 2019/2015 F
Cykly zapnití/vypnutí > >15000
EAN13 (jednotkový) 3800157686235

Working conditions

Power 18W W

Physical characteristics

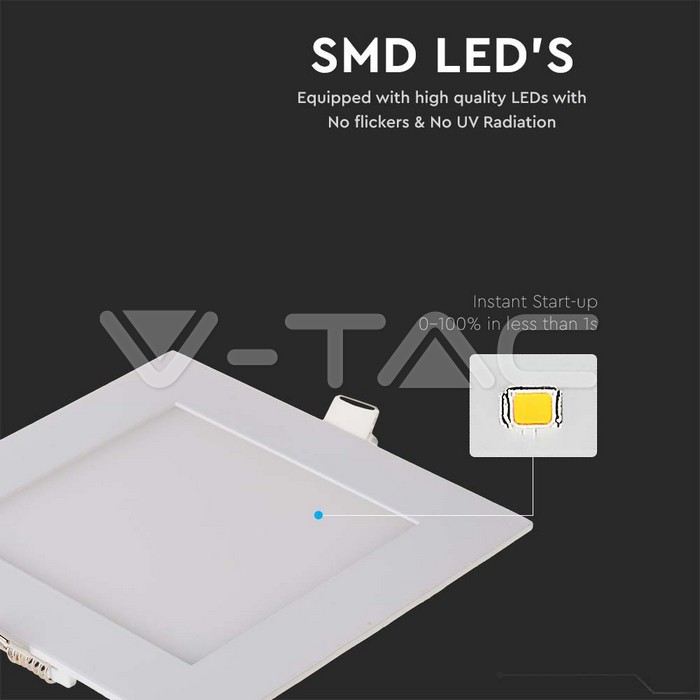

Type of chip SMD

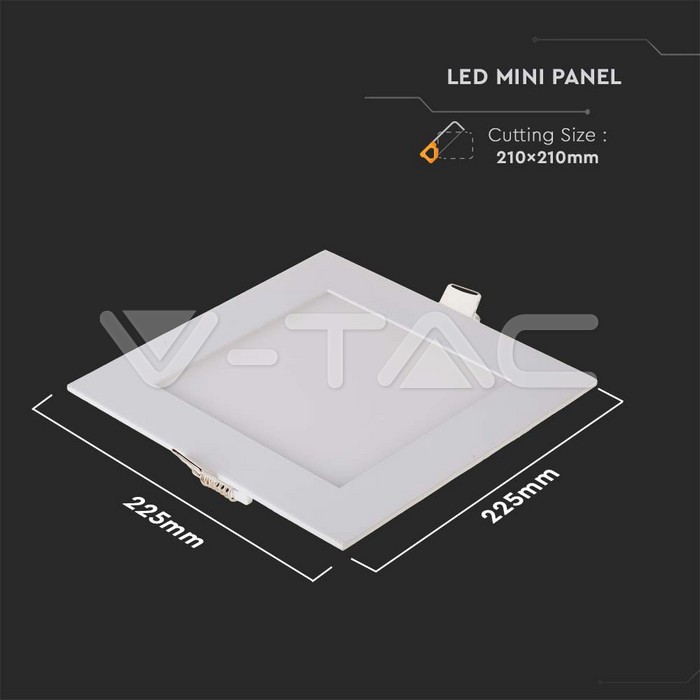

Dimensions (mm) 225x225x12 mm mm
Shape Square
Colour housing White
Weight netto 530 g
Material Aluminium
Volume per unit 0,002168 m3
Počet ks v balení 20
Počet kusů v kartonu 1

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS

Electrical characteristics

Frequency 50 - 60 Hz

Mounting methods/application

Dimensions of installation hole 210mm mm

Lighting characteristics

Colour temperature 6400K K
Colour rendering index CRI >80 Ra
Colour of light acc. EN 12464-1 Natural White
Effective luminous flux 1400 lm lm
Beam angle Degrees (°) 120° °

Energetic characteristics

Lamp Power factor (PF) >0.8
