16W LED Wall Lamp White Body IP44 3000K, VT-819

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU218533
Brand: V-TAC
Type / Description: LED nástěnné svítidlo
Nominal voltage (V):220 - 240
Nominal wattage:16
Colour temperature:3000K
Colour rendering index CRI:> >80
Luminous flux:1800
Lamp efficacy:134 lm/W
Unit EAN13 code: 3800157638678

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet 16W LED Wall Lamp White Body IP44 3000K, VT-819


Wiring Diagram not available


General information

Finish Wall lamp
Brand/Manufacturer V-TAC
Material Aluminium
Nominal service life (h) 20 000 hrs h
Nominal voltage (V) AC:110-240V V
Dimmable Ne
Energy efficiency class (canceled regulation!) A++
Nominal voltage (V) 220 - 240 V
Degree of protection (IP) IP44
Suitable for degree of protection (IP) IP44
Název položky LED nástěnné svítidlo
Skupina produktu V-TAC VT-819-N
Třída energetické účinnosti podle 2019/2015 E
Cykly zapnití/vypnutí > >15000
EAN13 (jednotkový) 3800157678360

Working conditions

Power 16W W
Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles >15000
Rated service life 20000 h
Turn-on time 0.001 sec (instant on) s

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS

Electrical characteristics

Nominal wattage 16 W
Frequency 50 - 60 Hz

Physical characteristics

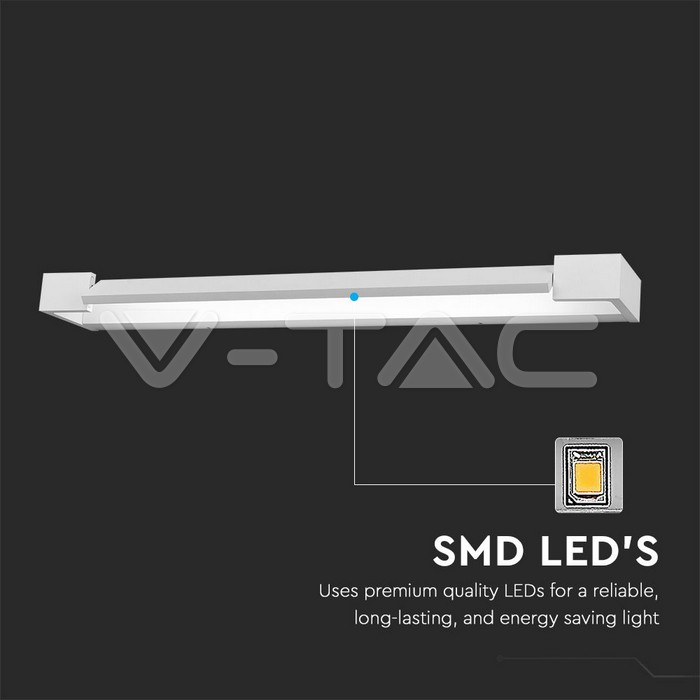

Type of chip SMD

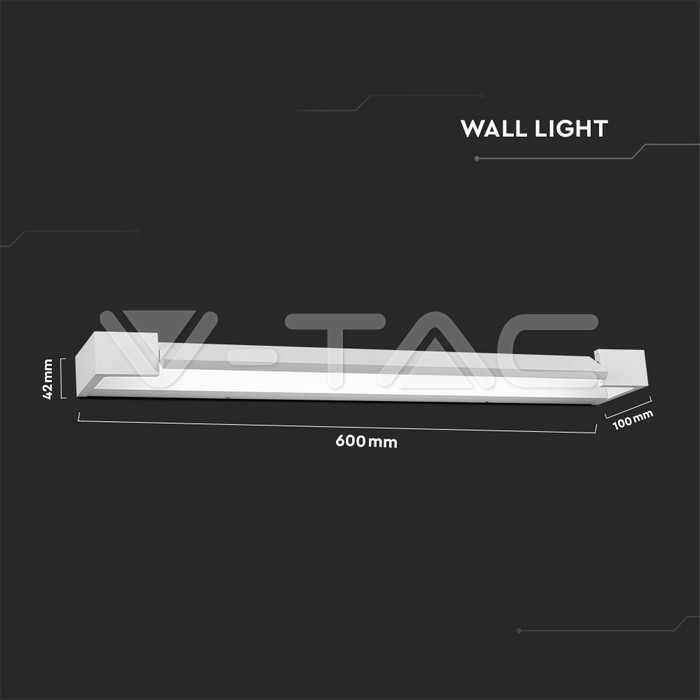

Dimensions (mm) 600 x 100 x 42 mm mm
Colour housing White
Weight netto 1700 g
Material Aluminium
Volume per unit 0,008676 m3
Počet ks v balení 10
Barva tělesa V-TAC White
Počet kusů v kartonu 10

Lighting characteristics

Luminous flux 1800 lm
Colour temperature 3000K K
Colour rendering index CRI >80 Ra
Colour of light acc. EN 12464-1 Warm White
Effective luminous flux 2150 lm lm

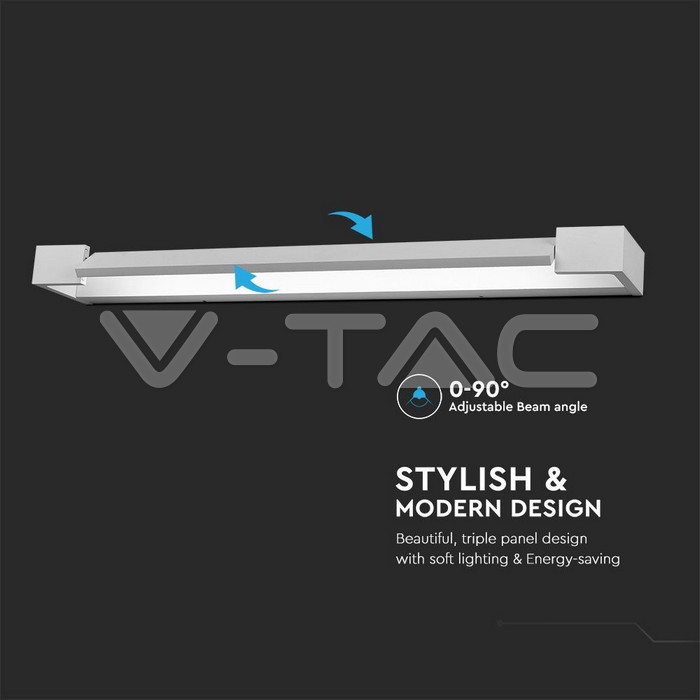

Beam angle Degrees (°) 90° °
Barva světla Warm White

Energetic characteristics

Lamp Power factor (PF) >0.5
Lamp efficacy 134 lm/W lm/W
