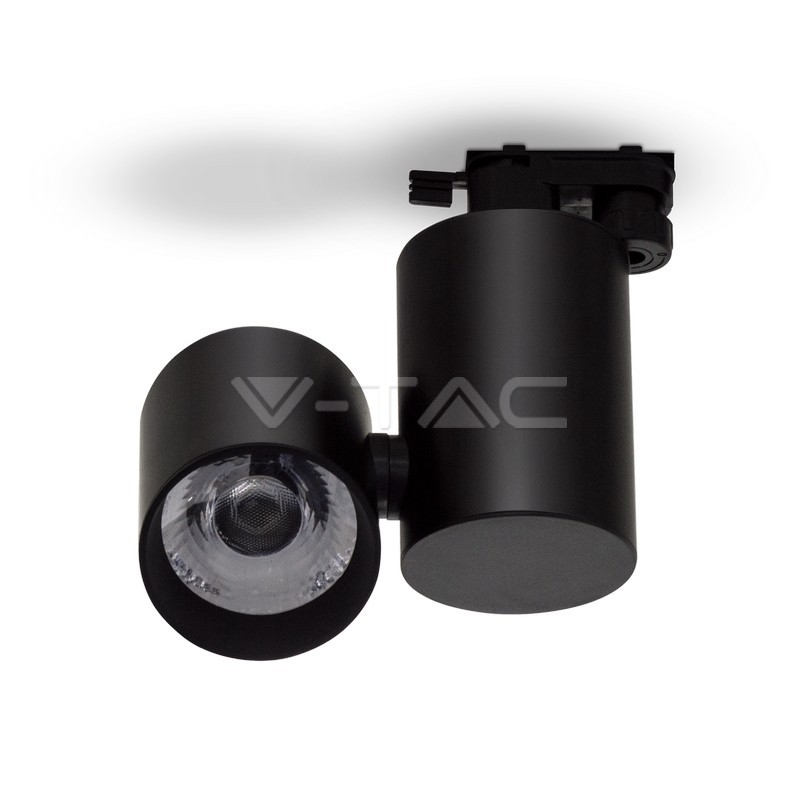

15W LED track Light Black Body White, VT-4615

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU1303
Brand: V-TAC
Type / Description: LED pásové světlo CRI> 95
Nominal voltage (V):220 - 240
Nominal wattage:15
Colour temperature:6400K
Colour rendering index CRI:> >95
Luminous flux:1350
Lamp efficacy:90
Unit EAN13 code: 3800157619905

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet 15W LED track Light Black Body White, VT-4615


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Material Die Cast Aluminum
Nominal service life (h) 20 000 hrs h
Nominal voltage (V) AC: 220-240V V
Dimmable Ne
Energy efficiency class (canceled regulation!) A+
Nominal voltage (V) 220 - 240 V
Degree of protection (IP) IP20
Suitable for degree of protection (IP) IP20
Název položky LED track osvětlení CRI> 95
Skupina produktu V-TAC VT-4615
Třída energetické účinnosti podle 2019/2015 A+
Cykly zapnití/vypnutí > 15000
EAN13 (jednotkový) 3,80016E+11

Working conditions

Reflector rotatable Ano
Power 15W W
Operating method Not suitable for use in extreme conditions. Normal working c
Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles 15000
Rated service life 20000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 100W W

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS

Electrical characteristics

Nominal wattage 15 W
Frequency 50Hz Hz

Physical characteristics

Type of chip COB
Dimensions (mm) 180 x 97 x 155 mm mm
Colour housing černá
Weight netto 0,631 g
Material Die cast aluminum
Volume per unit 0,0029925 m3
Počet ks v balení 20
Barva tělesa V-TAC Black
Počet kusů v kartonu 1

Lighting characteristics

Luminous flux 1350 lm
Colour temperature 6400K K
Radiation angle 24 °
Colour rendering index CRI >95 Ra
Maximal intensity (Cd) 9832.29 Cd Max. Cd
Colour of light acc. EN 12464-1 white
Effective luminous flux 1350 lm
Beam angle Degrees (°) 24° °
Barva světla White

Energetic characteristics

Lamp Power factor (PF) > 0.9
Lamp efficacy 90 lm/W
