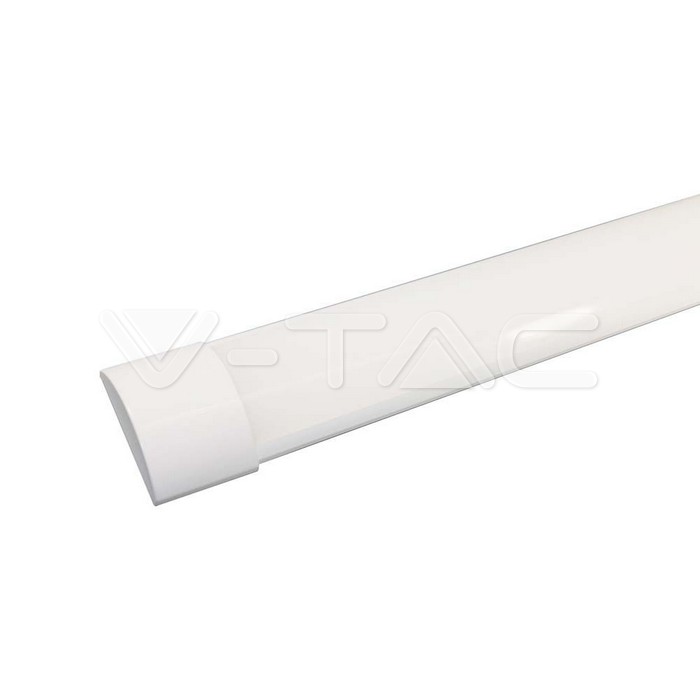

15W LED Plastic Grill Fitting Fast Connect & Cable 60cm 150 lm/W 4000K

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU20360
Brand: V-TAC
Type / Description: LED grill fitting
Nominal voltage (V):AC: 220-240V
Colour temperature:4000K
Colour rendering index CRI:> >80
Lamp efficacy:150 lm/W
Unit EAN13 code: 3800157663823
Guarantee: 60 months

Download

Technical sheet

Technical drawing not available


Download

Technical sheet

Technical sheet 15W LED Plastic Grill Fitting Fast Connect & Cable 60cm 150 lm/W 4000K


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Nominal service life (h) 25,000 hrs h
Nominal voltage (V) AC: 220-240V V
Suitable for degree of protection (IP) IP20
Skupina produktu V-TAC VT-8315
Třída energetické účinnosti podle 2019/2015 D
Cykly zapnití/vypnutí > >15 000
Kompatibilita Sensor Compatibility
EAN13 (jednotkový) 3800157663823

Working conditions

Power 15W W
Operating method Not suitable for use in extreme conditions. Normal working c

Lighting characteristics

Colour temperature 4000K K
Colour rendering index CRI >80 Ra
Colour of light acc. EN 12464-1 Natural White
Effective luminous flux 2250 lm lm

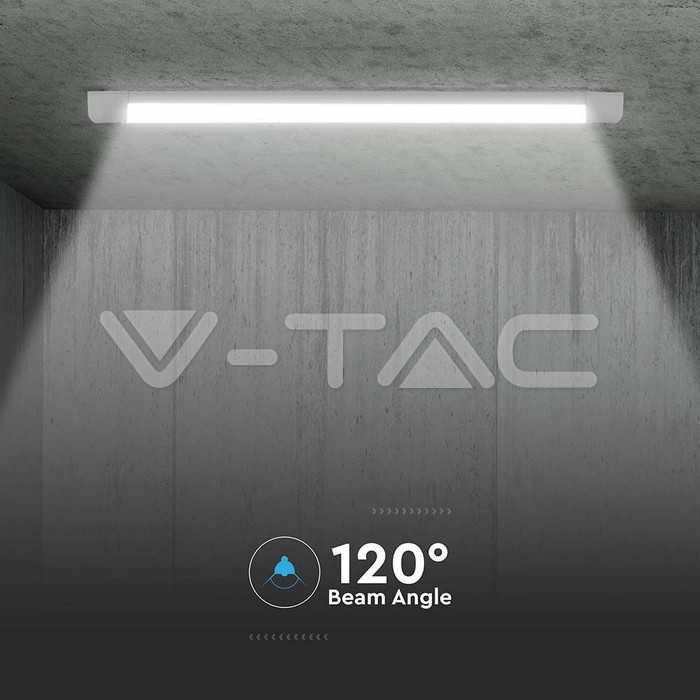

Beam angle Degrees (°) 120° °

Energetic characteristics

Lamp Power factor (PF) >0.7

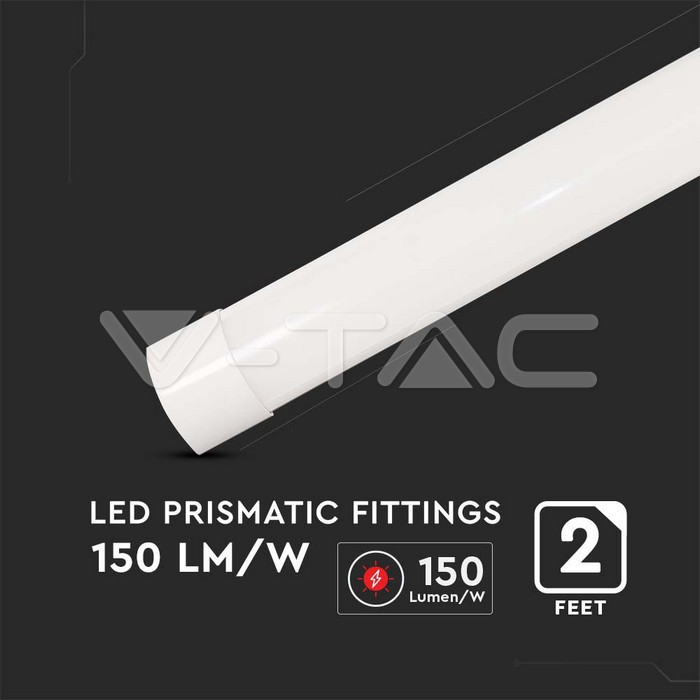

Lamp efficacy 150 lm/W lm/W

Electrical characteristics

Frequency 50 - 60 Hz

Physical characteristics

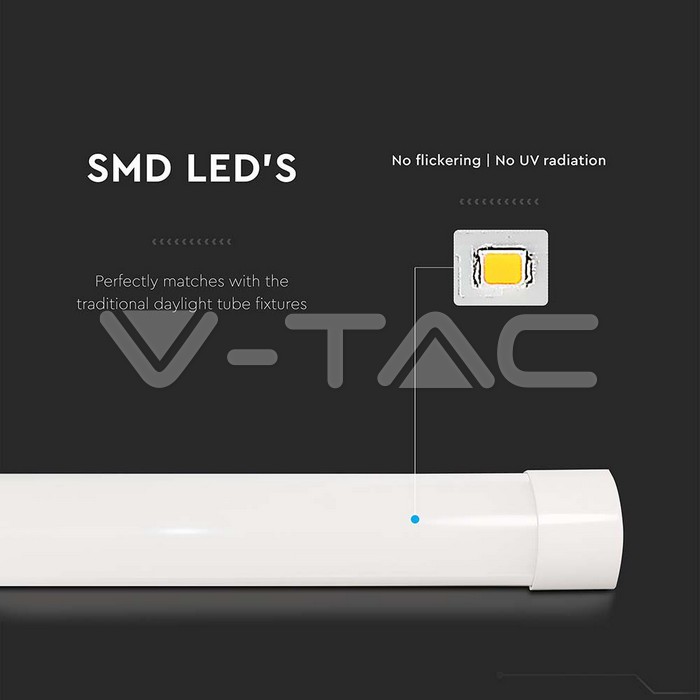

Type of chip SMD

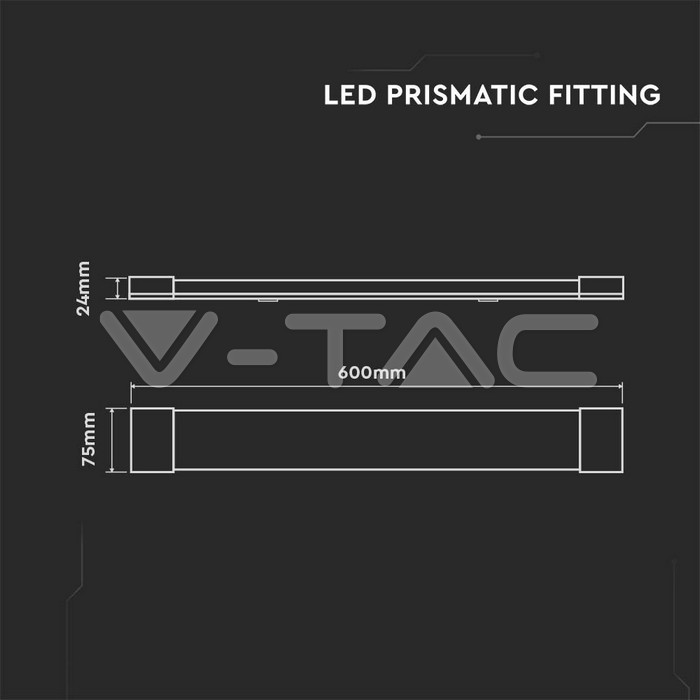

Dimensions (mm) 600 x 75 x 24 mm mm
Colour housing White
Weight netto 250 g
Material Plastic
Volume per unit 0,001563 m3
Počet ks v balení 30
Počet kusů v kartonu 1

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS
