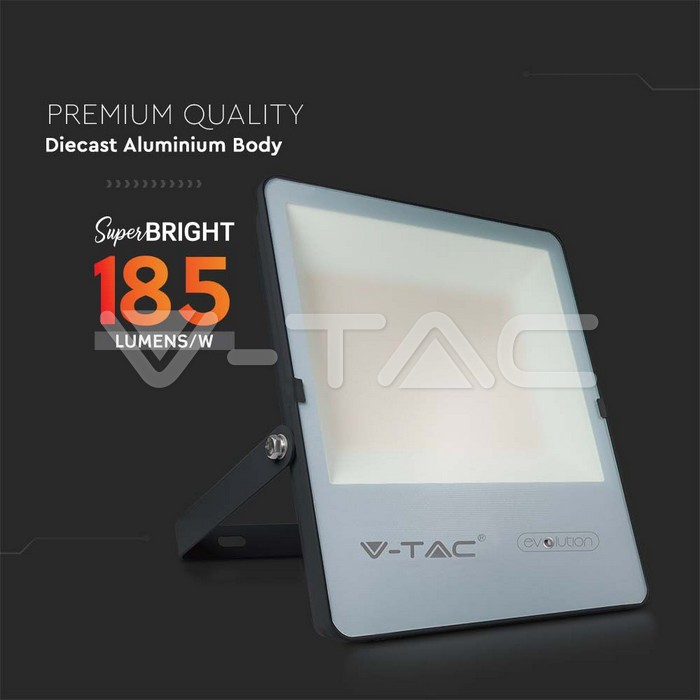

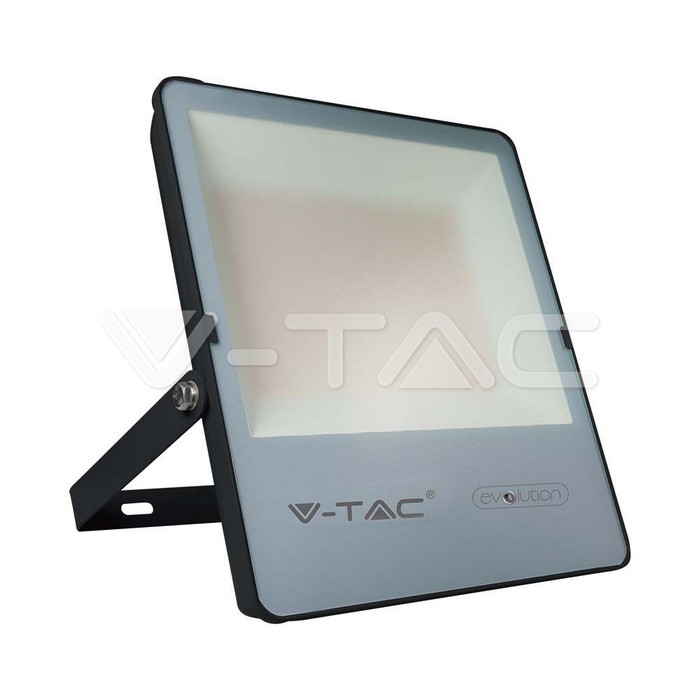

150W LED Floodlight G8 Black Body 4000K 185 lm/W

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU20455
Brand: V-TAC
Type / Description: LED reflektor
Nominal voltage (V):AC:220-240V
Colour temperature:4000K
Colour rendering index CRI:> >70
Lamp efficacy:185 lm/W
Unit EAN13 code: 3800157679800
Guarantee: 60 months

Download

Technical sheet

Technical drawing not available


Download

Technical sheet

Technical sheet 150W LED Floodlight G8 Black Body 4000K 185 lm/W


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Nominal service life (h) 25000 hrs h
Nominal voltage (V) AC:220-240V V
Suitable for degree of protection (IP) IP65
Skupina produktu V-TAC VT-150185
Třída energetické účinnosti podle 2019/2015 B
Cykly zapnití/vypnutí > >15000
Kompatibilita Sensor Compatibility
EAN13 (jednotkový) 3800157679800

Working conditions

Power 150W W
Operating method -20°C to +40°C

Lighting characteristics

Colour temperature 4000K K
Colour rendering index CRI >70 Ra
Colour of light acc. EN 12464-1 Natural White
Effective luminous flux 27750 lm lm
Beam angle Degrees (°) 100° °

Energetic characteristics

Lamp Power factor (PF) >0.9
Lamp efficacy 185 lm/W lm/W

Electrical characteristics

Frequency 50Hz Hz

Physical characteristics

Type of chip SMD

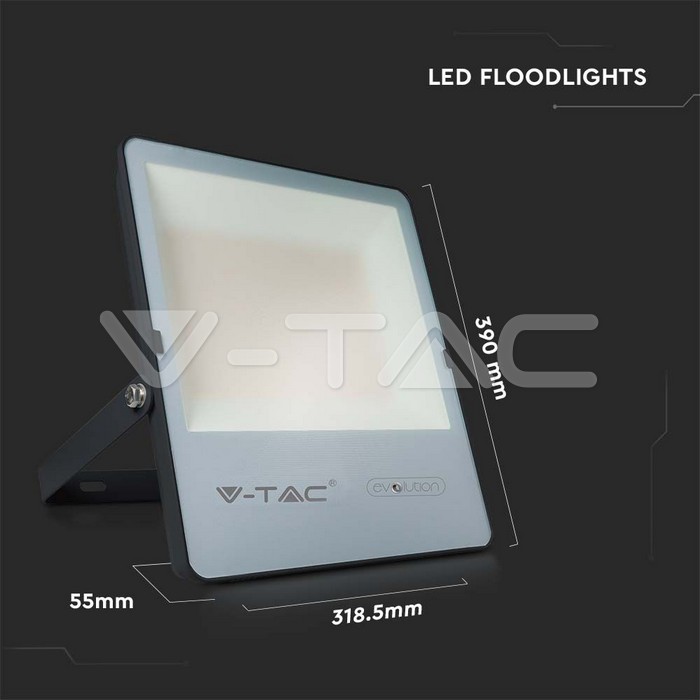

Dimensions (mm) 318.5 x 55 x 390mm mm
Colour housing Black
Weight netto 3260 g
Material Die Cast Aluminium
Volume per unit 0,01051 m3
Počet ks v balení 2
Počet kusů v kartonu 1

Safety information

Safety instructions https://www.nbb.cz/gprs
Product certification CE, EMC, ROHS
