Order number: 910297045
Brand: NBB

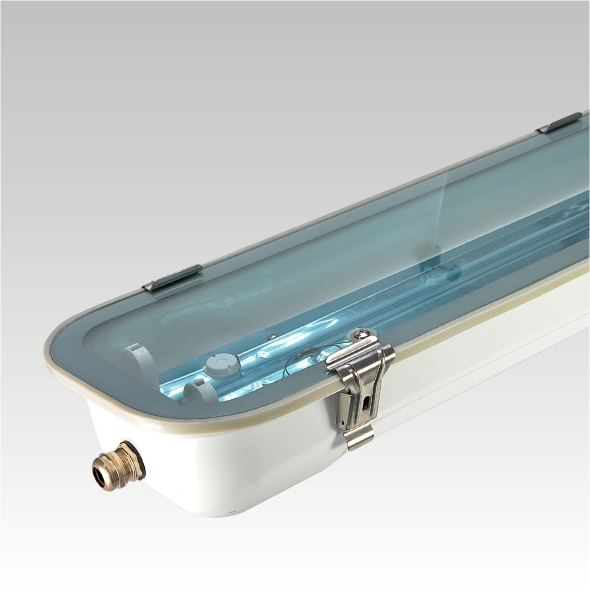

Type / Description: Průmyslové zářivkové svítidlo
Jmenovité napětí (V):230 - 240
Jmenovitý proud:0,34
Nominal wattage:2 x 36
Unit EAN13 code: 8595209923998

Exclusion of liability

Changes to data are subject to prior notice. NBB Bohemia s.r.o. accepts no responsibility for damages caused by inaccurate interpretation of the content on this site.

Notice
This product ranks among electrotechnical products powered by mains voltage 230-240V. For safety reasons, it is recommended that the assembly, connection or disassembly be carried out by a person with an appropriate electrotechnical qualification. Please note that the product may only be put into service with original covers, otherwise there may be a risk of electric shock, especially from the terminal block. Only use the product in places that are suitable for this purpose; do not use products intended for indoor use only in the outdoor environment. When installing or dismantling an emergency luminaire, we recommend disconnecting the power supply otherwise there may be a risk of electric shock. Observe the prescribed position when operating the product and how it is attached. Only connect the product to the rated voltage, or load it only to the maximum permitted power. Install only light sources for this type of luminaire. The manufacturer can not be held responsible for damages resulting from inappropriate connection, connection to an unsuitable distribution system, or damage resulting from the use of an unsuitable light source. Observe the operating values ​​on the label. Do not expose the product to inappropriate weathering or high temperatures unless it is expressly stated that the product is intended to be operated under these conditions. When installing, wiring or disassembling, follow the generally accepted safety precautions.


NOTICE:
The emergency luminaire is energized even after disconnecting the power supply due to its own charged batteries. Therefore, it is recommended that the installation and disassembly be carried out only by a person with the appropriate electrotechnical qualifications.

Do not throw the emergency luminaire into the mixed waste after use. Take it to the nearest store, collection yard, or other designated location for free recycling. You can also deliver the used luminaires for recycling at our sales outlets. Emergency lights and modules contain a rechargeable battery. You can find the list of collection points on the Retel and Ekolamp Collective Systems pages.

Download

Technical drawing

10.37 kB - Technical drawing


Download

Technical sheet

Technical sheet PRIMA 236 IRON KVG PAR IP66


Wiring Diagram not available


General information

Model/Description Zářivkové svítidlo
Finish Průmyslové
Brand/Manufacturer NBB
Material Plech
Lamp type T8
Degree of protection (IP) IP66
Dimmable Ne
Suitable for suspended mounting Ano
Lamp type Zářivka T8 (26mm)
Nominal voltage (V) 230 - 240 V
Degree of protection (IP) IP66
Suitable for number of lamps 2
Suitable for wall mounting Ano
Emergency light Ne
Dimmable by conventional dimmers Ne
Název položky PRIMA 236 IRON KVG PAR IP66

Working conditions

Operating frequency 50 - 60 Hz
Light source is part of the fixture Ne
Hot restart Ano
Installation height (m) 2 - 5 m
Application Všeobecné osvětlování
Suitable for through-wiring Ne
Lamp holder type G13
Type of control gear Nízkoztrátový
Ambient temperature -30/+50 °C
Reflector rotatable Ne
Fire resistance "D" Ano
Fire resistance "F" Ano
Fire resistance "FF" Ano
Emergency unit integrated Ne
Extreme-temperature -30/+50

EuP Parameters

The rate of premature failures <1 %

Lighting characteristics

Anti-glare limiting UGR lengthwise 19
Anti-glare limiting UGR crosswise 19
Light outlet Přímé
Light sharing Široký úhel

Energetic characteristics

Energy Efficiency Index B2
Lamp Power factor (PF) 0,86

Electrical characteristics

Nominal wattage 2 x 36 W
Operating voltage (V) 220 - 240 V
Type of Voltage AC
Lamp power 36 W
Circuit Magnetické
Nominal current (A) 0,34 A
Total power (W) (light fitting) 82 W

Physical characteristics

Dimensions (mm) 1304 x 195 x 95 mm
Packing method 1
Weight gross 8780 g
Spacing of fixing holes 1100 mm
Width 195 mm
Reflector Vysoce leštěný
Colour housing Šedá
Weight netto 8020 g
Length 1304 mm
Height/depth (mm) 95 mm
Material housing Ocel
Colour cover Bez barvy
Material cover Ostatní
Impact strength IK10

Additional information

With lamp Ne

Safety information

Safety instructions www.nbb.cz
Protection class Ochranným vodičem
